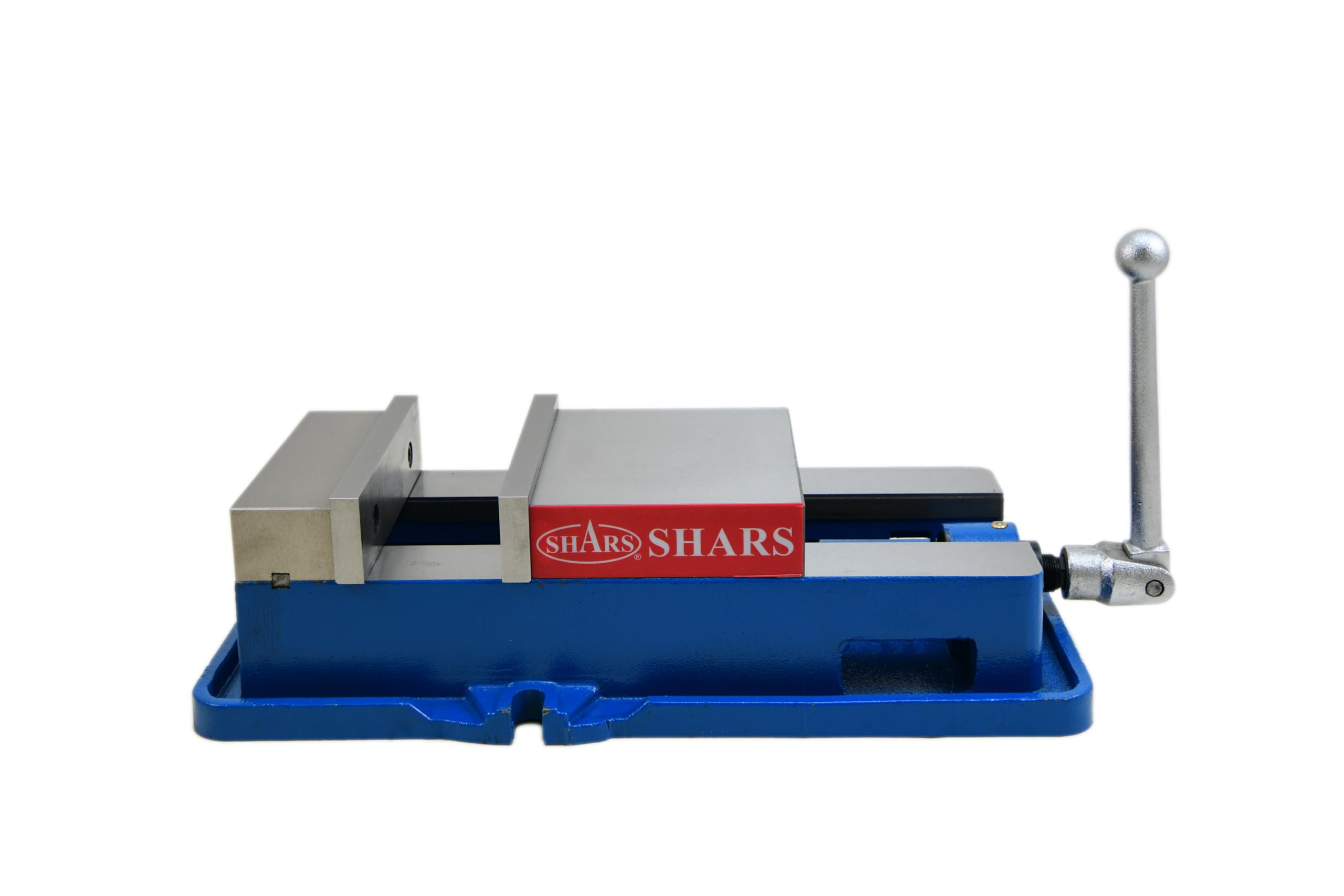

Tilt lock mechanism creates downward pressure on jaw ensuring both jaws are parallel during clamping; eliminating jaw tiltVise bed is made from grey cast iron and the maximum tensile strength of the vise bed is 28,000 PSISliding surface of the vise bed is flame hardened and groundAccurate to 0.002” per 4” on squareness and 0.006” per 4” on parallelism without baseVise Key: 14.00mm table slot width, 15.875mm base width USE ON NC/CNC MACHINES FOR CUSTOMER WHO ONLY NEEDS ONE VISE NOT TWO OR MORE, BECAUSE OF BED HEIGHT TOLERANCE , THESE VISES CAN'T BE USED TOGETHER. Jaw With A: 5"Jaw Opening B: 4.92"Jaw Height C: 1-1/2"Bed Height: 2.40"Jaw Plate Bolt Hole Spacing: 2.99"Jaw Plate Bolt Hole Thread: M8 Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Price — no data — no data — no data — no data — no data — no data DIMENSION 6.34" 5.86" 3.97" 14.37" 9.05" 5.20"
