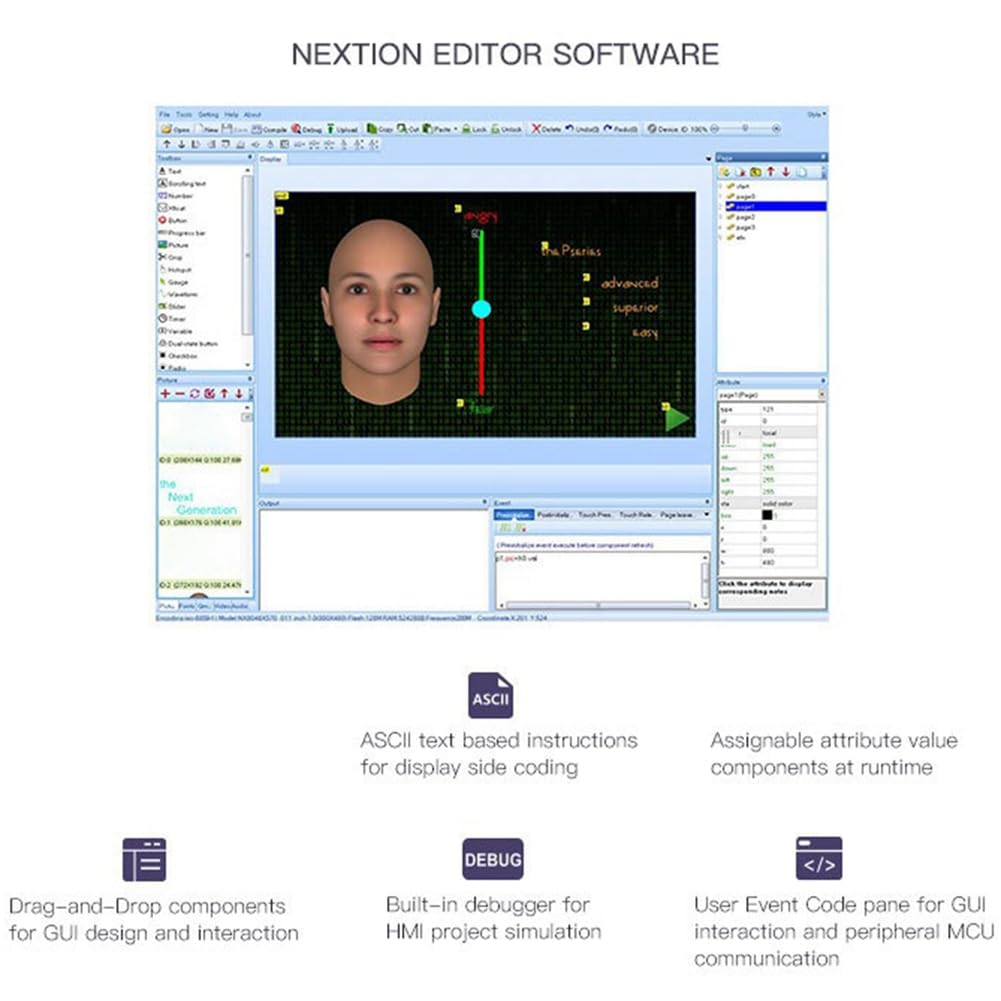

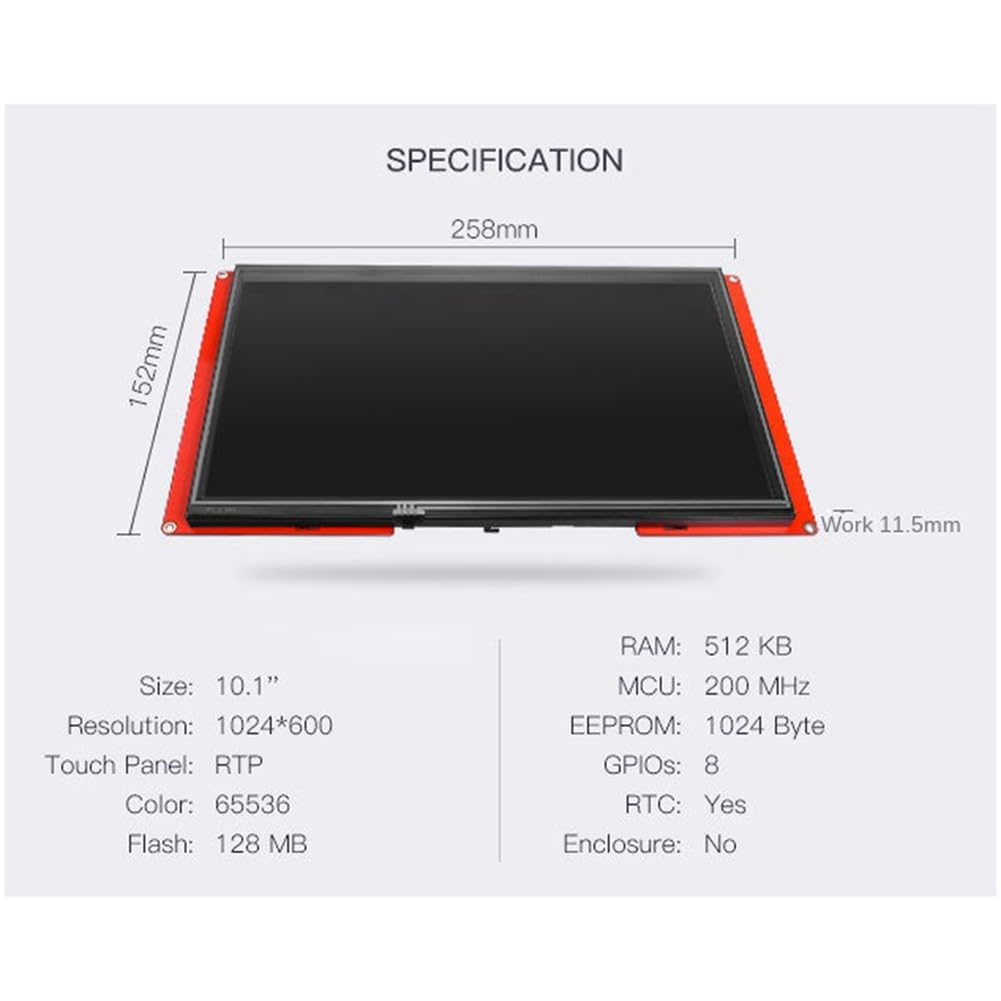

is a seamless human-machine interface (HMI) solution that provides control and visualization interfaces between humans and processes, machines, applications or devices.tft files present on micro-SD: slot dedicated for upgrading firmware/HMI design.SD card slot: Yes (FAT32 format), maximum support 32G Micro-SD card.User storage: EEPROM 1024 bytes Compared with the basic series and the enhanced series, the smart series products have more powerful hardware in terms of MCU, flash memory and . What's more and what's new? Audio, video, and animation playback functions enrich the user's engineering HMI interaction. Smart series supports advanced software features and functions such as transparent components, page loading effects, component moving and dragging.IO0-IO7 support input, output and component binding events. is mainly used in of Internet of Things or consumer electronics. It is the best solution to replace traditional LCD and LED digital tubes.Smart series only: see instruction set/editor guide for micro-SD card runtime usage.RAM memory: 512 KB for storing variablesIO pins/ports are not exclusive, it is recommended to limit the current consumption to 1mA Through Editor software (official download), users can create and design their own display interface.The NX1060P101-011R-I package does not come with speakers.Audio Connector Type: 1.25T-2-2A (1.25mm pitch 2-pin ).Instruction buffer: Instruction buffer 4096 Working with insufficient power can easily damage the model with a blurred and flickering screen You may be suffering from a power shortage. 6. Power off the first time No more repeated attempts to damage models A small connector is included in the package. Please try to power the with a phone charger through the connector to check if the is working properly. A high quality usb cable is required.Vin: power input voltage › See more product details
