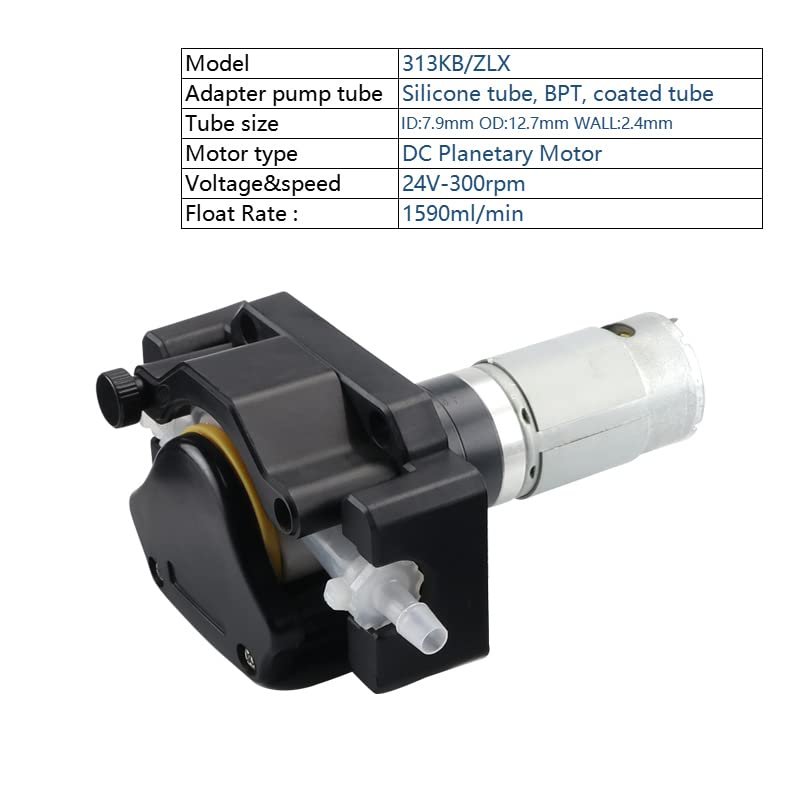

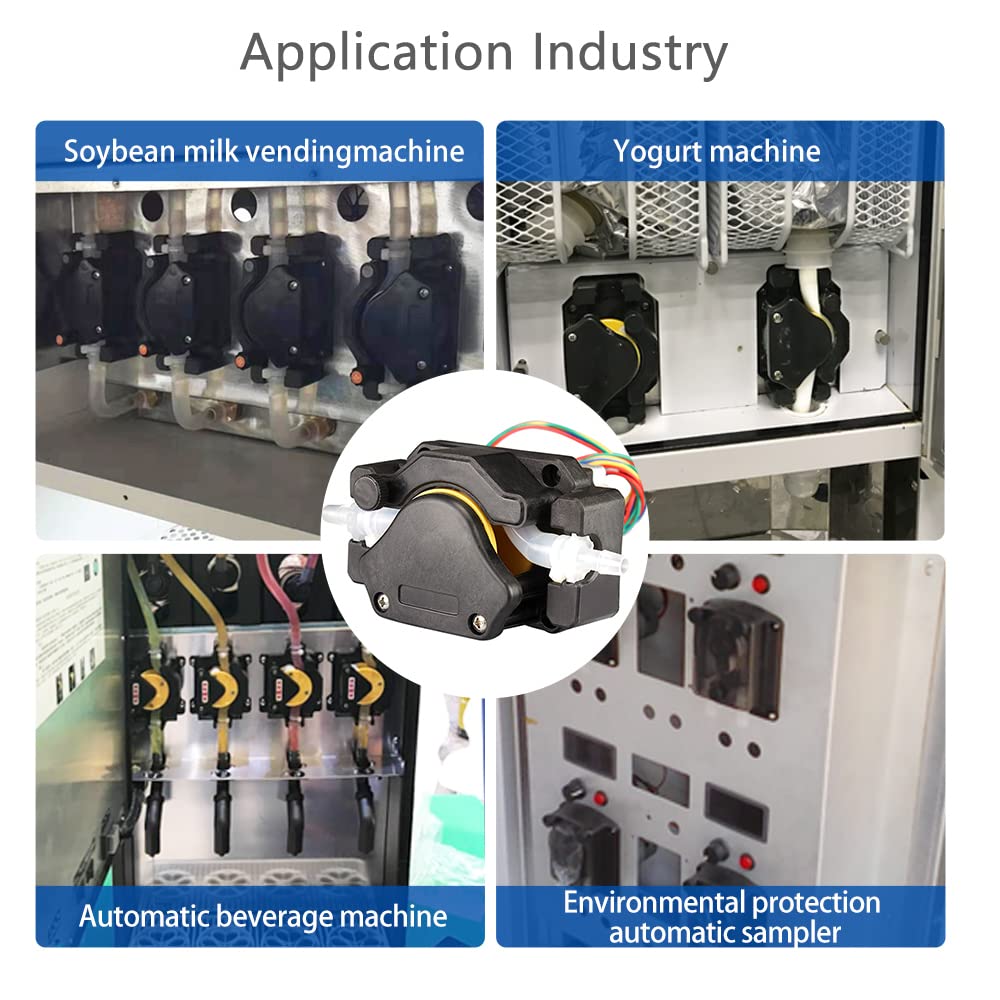

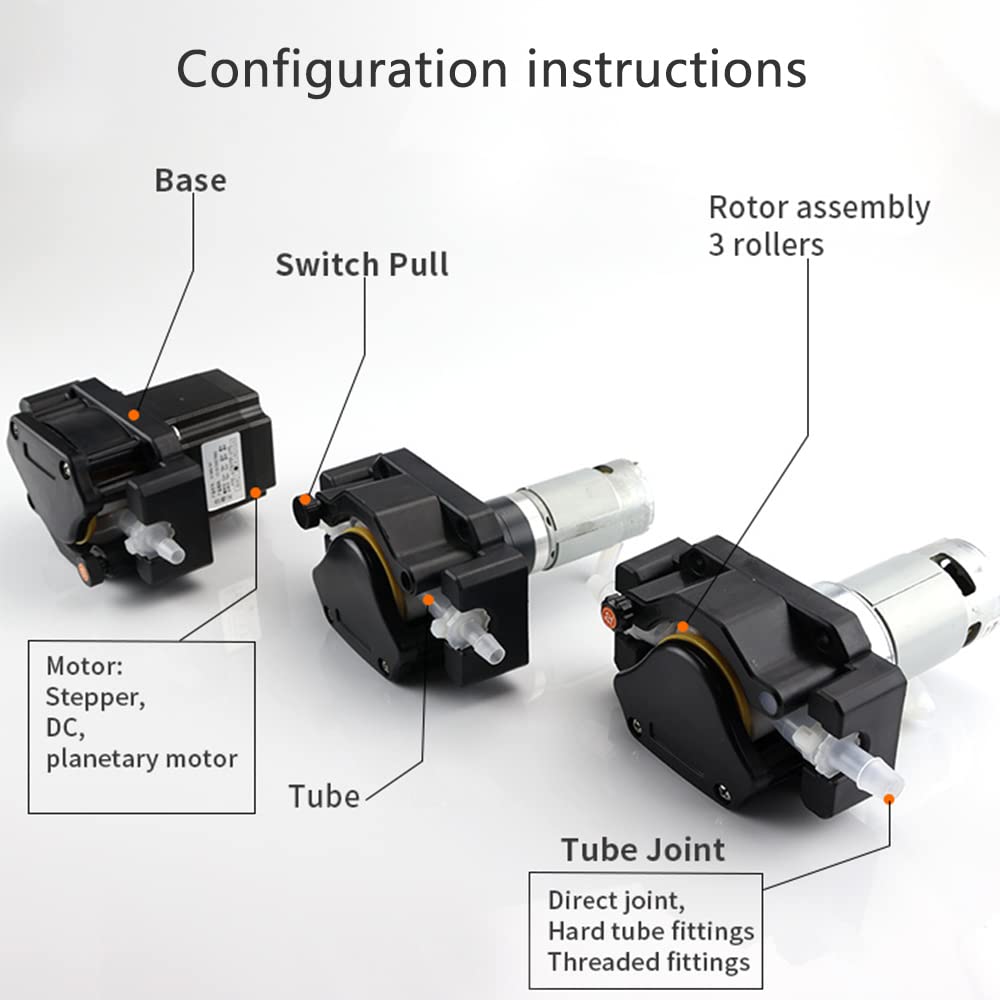

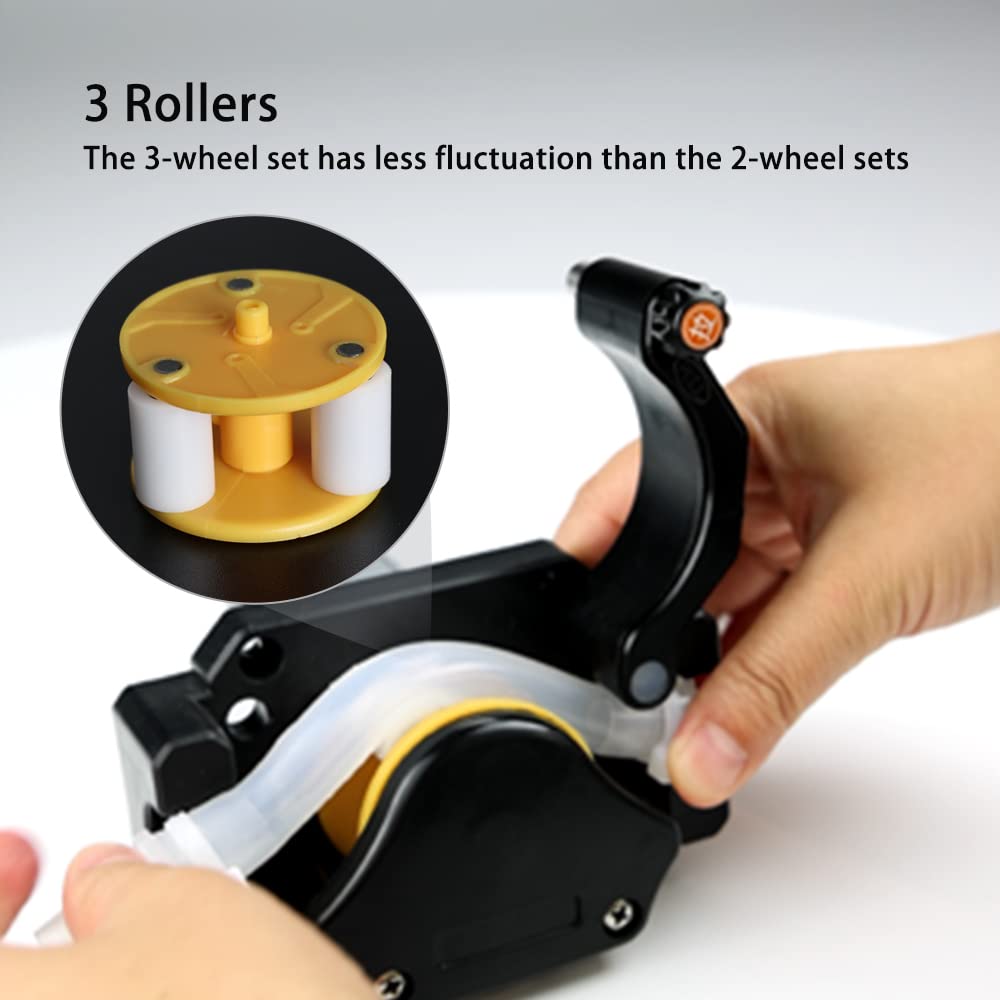

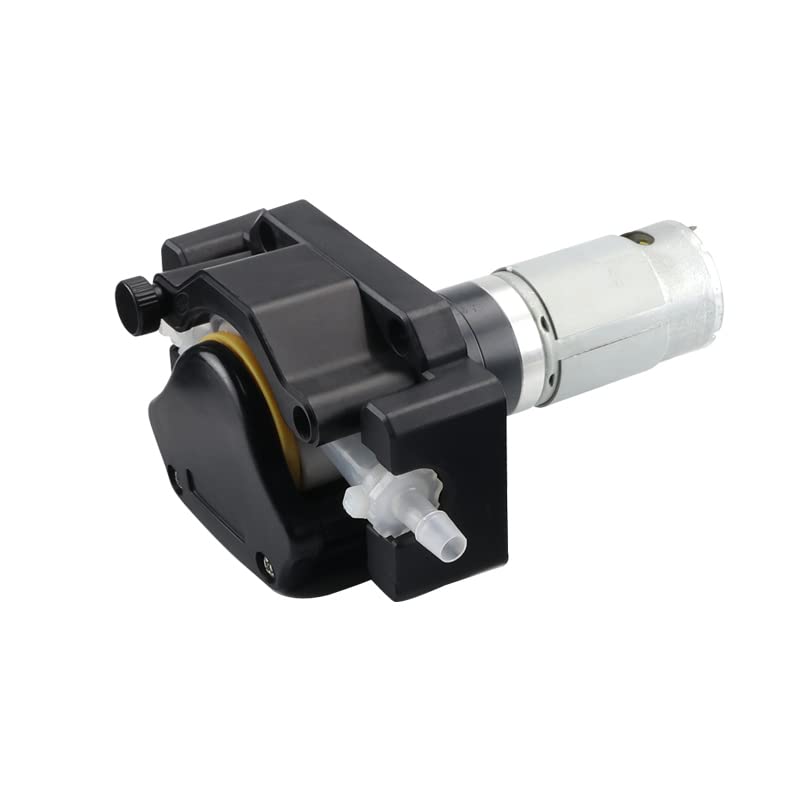

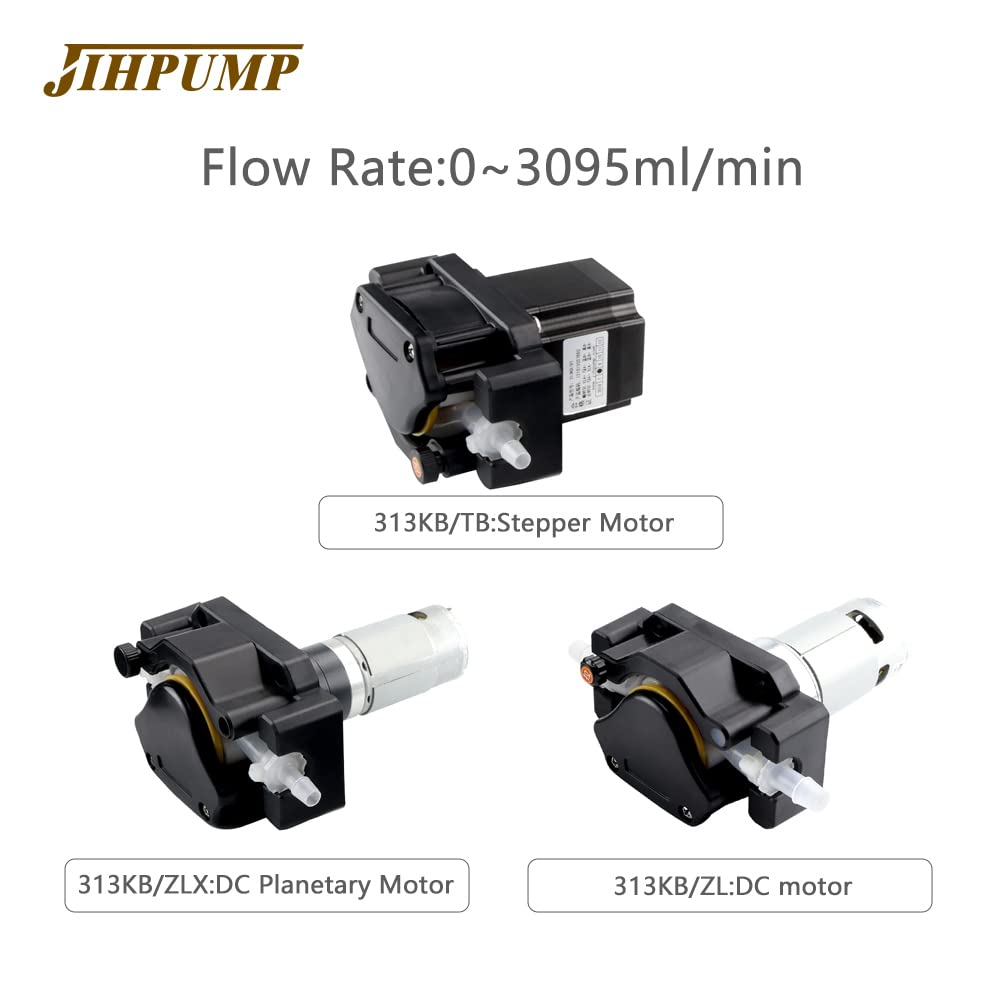

Product parameters Product Name 313KB Straight Tubeline Peristaltic Pump Product Model 313KB/ZL, 313KB/ZLX, 313KB/BT Motor Type DC Geared Motor, DC Planetary Motor, Stepper Motor Flow Rate ≤3095ml/min, ≤1590ml/min, ≤1600ml/min Voltage and Current DC 24V,3A/DC 24V,2A/DC 24V,4A Power ≤36W, ≤24W, ≤60W Motor Life 800~1500 hours, 1000~2000 hours, 5000~20000 hours Weight 734g, 607g, 910g Outlet Pressure ≤0.17MPa Working Environment Temperature: 0~60℃, Humidity: ＜85%RH Noise ≤70dB, ≤68dB, ≤58dB Main Material Upper support:Polyamide, Roller:POM, Base:Polyamide Tube Size 24#(ID6.4*δ11.2mm), 35#(ID7.9*δ12.7mm) Tube Type Silicone tube, A-60-F tube, Chemical tube Product Application Common Applications: Chemical industry, food processing, experimental equipment, printing and dyeing industry, environmental instruments etc. Applications Industry: Medical diagnosis,Environmental instrument,Analytical Instruments,inkjet ink,Washing cleaning,Food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,Industrial machinery etc. Product Configuration Work roller: Imported wear-resistant self-lubricating bar materials and rollers processed by high-precision CNC lathes are more accurate and wear-resistant. Motor Type: DC Geared Motor: The accuracy requirements are not high, and the operation is performed in a short time interval, otherwise the temperature will burn out the motor, and it's cheaper. It can be equipped with a JIHPUMP DC speed control board to fine-tune the speed. DC Planetary Motor: Tts accuracy is around 3~5%; It is suitable for running at interval, otherwise, it may be burn out because of high heat and temperature; Low cost; With JIHPUMP DC motor driver,clients can fine-tune its speed.DC planetary motors have a slightly longer service life than DC Geared motors. Stepper Motor: Accurate flow, long working life, suitable for long-term operation, you can choose any speed control board of JIHPUMP, but it's more expensive than the other two motors. Installation Mode: The base comes with mounting holes. Joint: Standard: Direct joint Optional: Reducer joint, Right angle joint. Overall Dimension CE certification (passed electrical safety certification) IS09001 quality management system certification ROHS certification (through the use of hazardous substances in the product testing)
