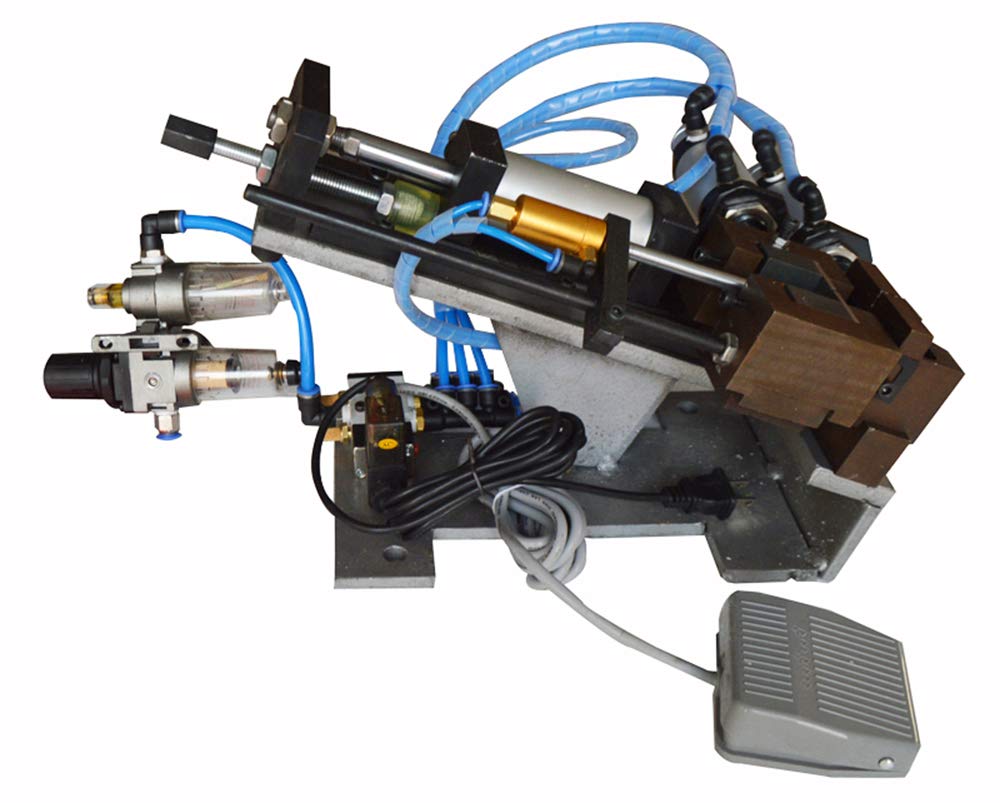

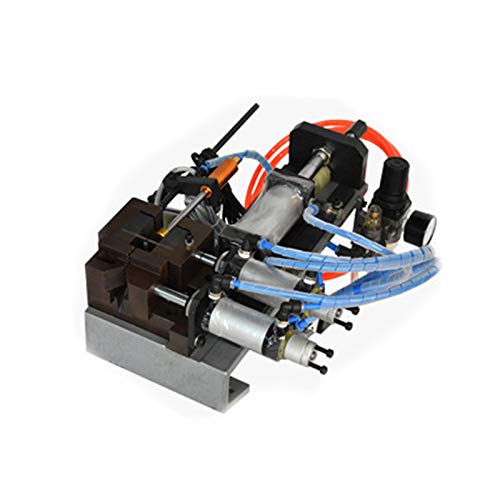

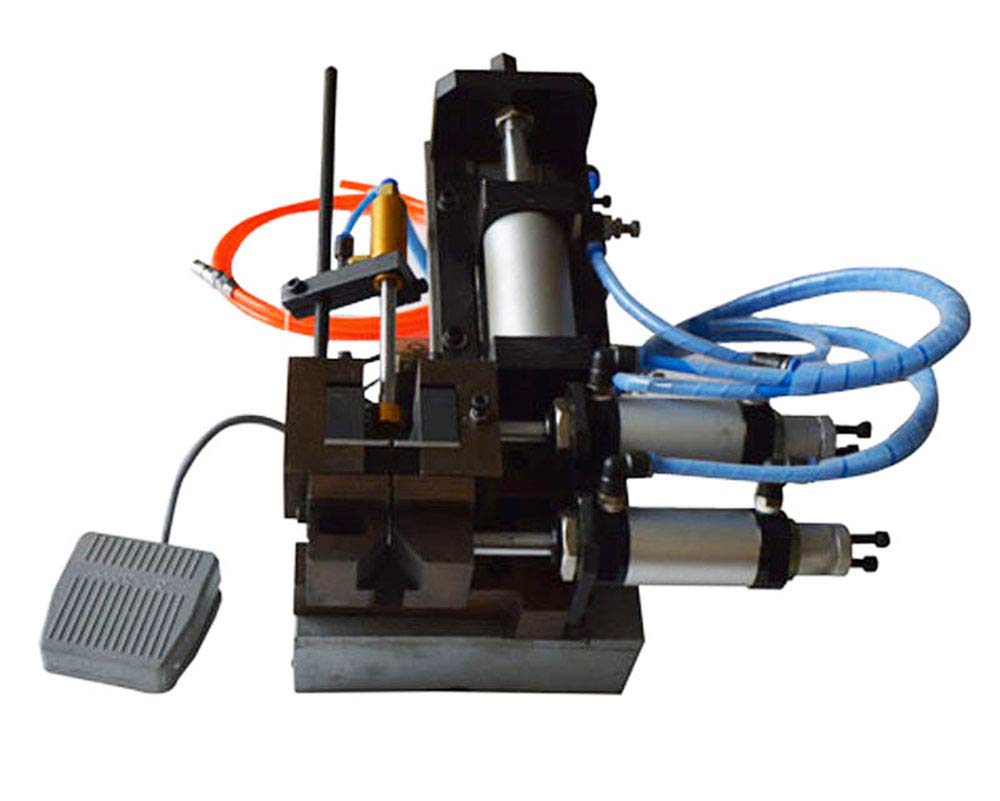

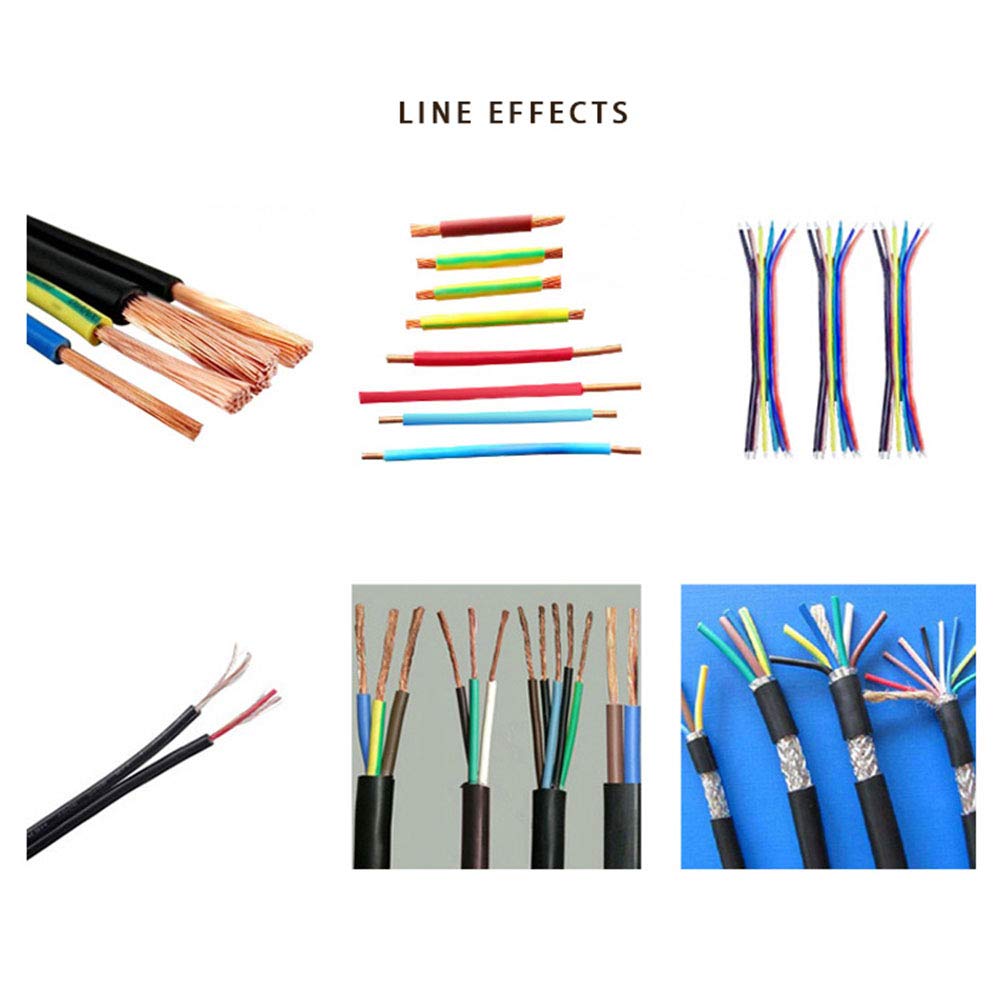

It is suitable for decoating processing of wires and cables such as AC/DC power cords, computer wires, electronic wires, and multi-core special wires. Parameters: Air pressure: 3-7kg(6.7-15.5lb)/㎡ Model:XR-305 Ability: Max7mm(0.3") Stroke:50mm(2") Output power:31-73kg(68-161lb) Cylinder diameter:40mm(1.6") Voltage:110V Weight:20kg(44lb) Size:400*300*270mm(15.8*11.8*10.6Inch) Operating instructions: 1.This machine is by electric and air control, Please plug in the power supply and air compressor before use. 2.The wire is placed within the fixed knife before produce, then press Pedal switch then it will be formed. 3.The length of the wire rod processing can be a little front cylinder before moving by tools, then test it. 4.When produce, inside wire has wound, we can adjust the back of the cylinder. 5.Please note safety when you use the machine, please turn off the power supply when not in use. 6.When the Wire size is different, the cutting tool is not the same, Must change tool to use. Notice:This machine is the air-operated, so you need buy a pump alone.
