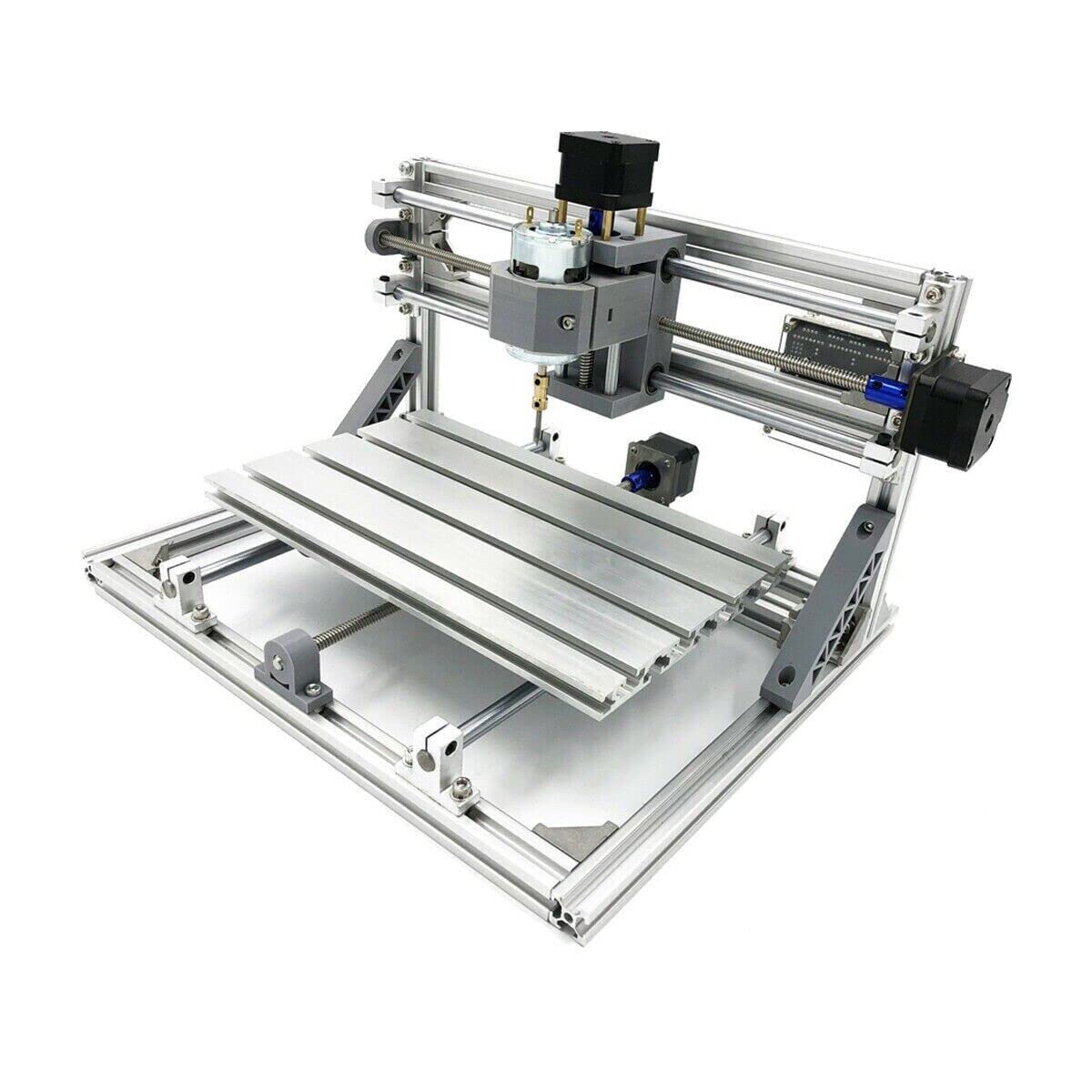

CNCTOPBAOS 3 Axis 3018 CNC Router with GRBL Offline Controller - DIY Mini Desktop Engraving Machine for Wood, Aluminum, Acrylic & PCB Cutting - Perfect for Hobbyists, Makers & Small Workshops

$79.75

$145

Safe 45%

CNCTOPBAOS 3 Axis 3018 CNC Router with GRBL Offline Controller - DIY Mini Desktop Engraving Machine for Wood, Aluminum, Acrylic & PCB Cutting - Perfect for Hobbyists, Makers & Small Workshops

CNCTOPBAOS 3 Axis 3018 CNC Router with GRBL Offline Controller - DIY Mini Desktop Engraving Machine for Wood, Aluminum, Acrylic & PCB Cutting - Perfect for Hobbyists, Makers & Small Workshops

$79.75

$145

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

9 people viewing this product right now!

SKU: 26456707

Guranteed safe checkout

Description

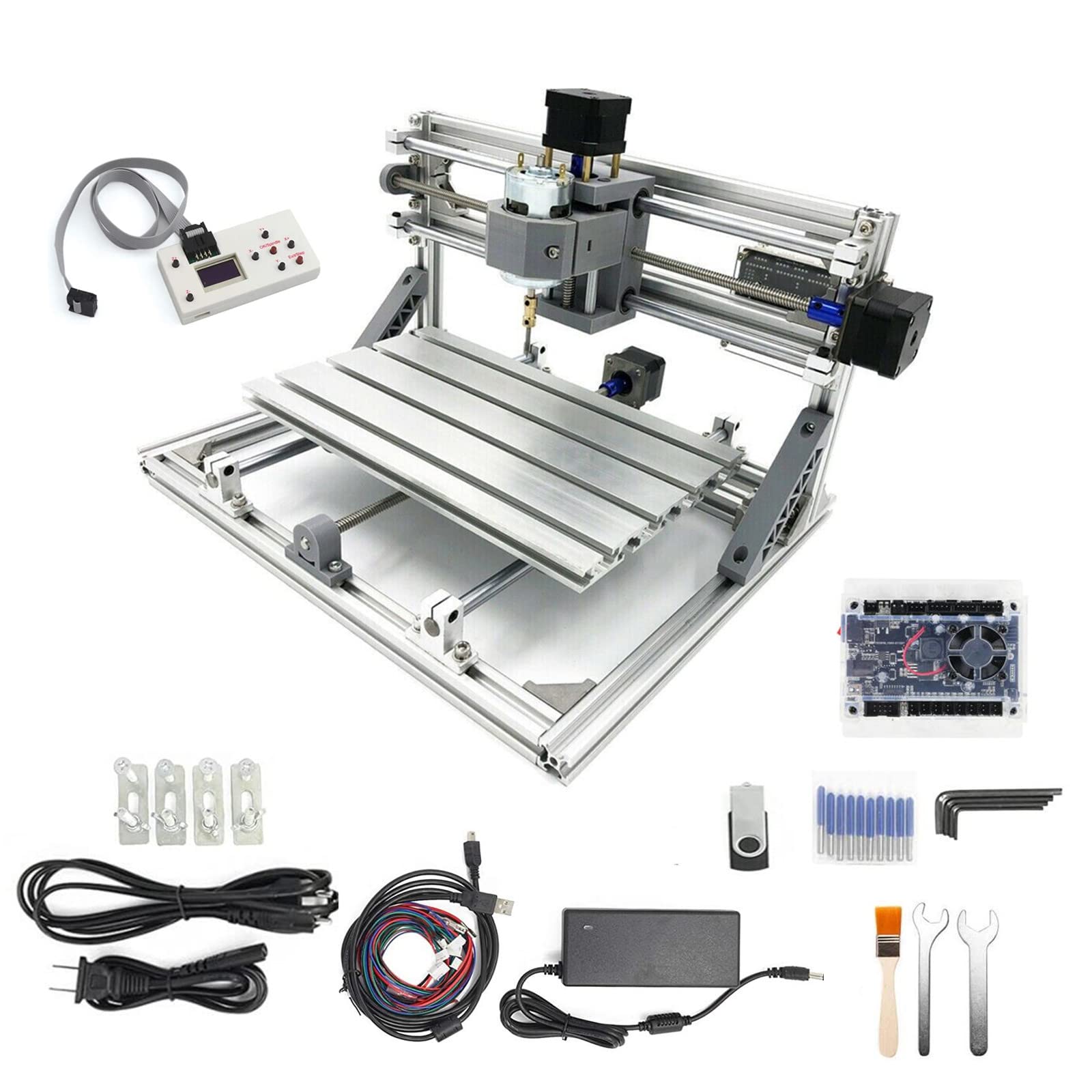

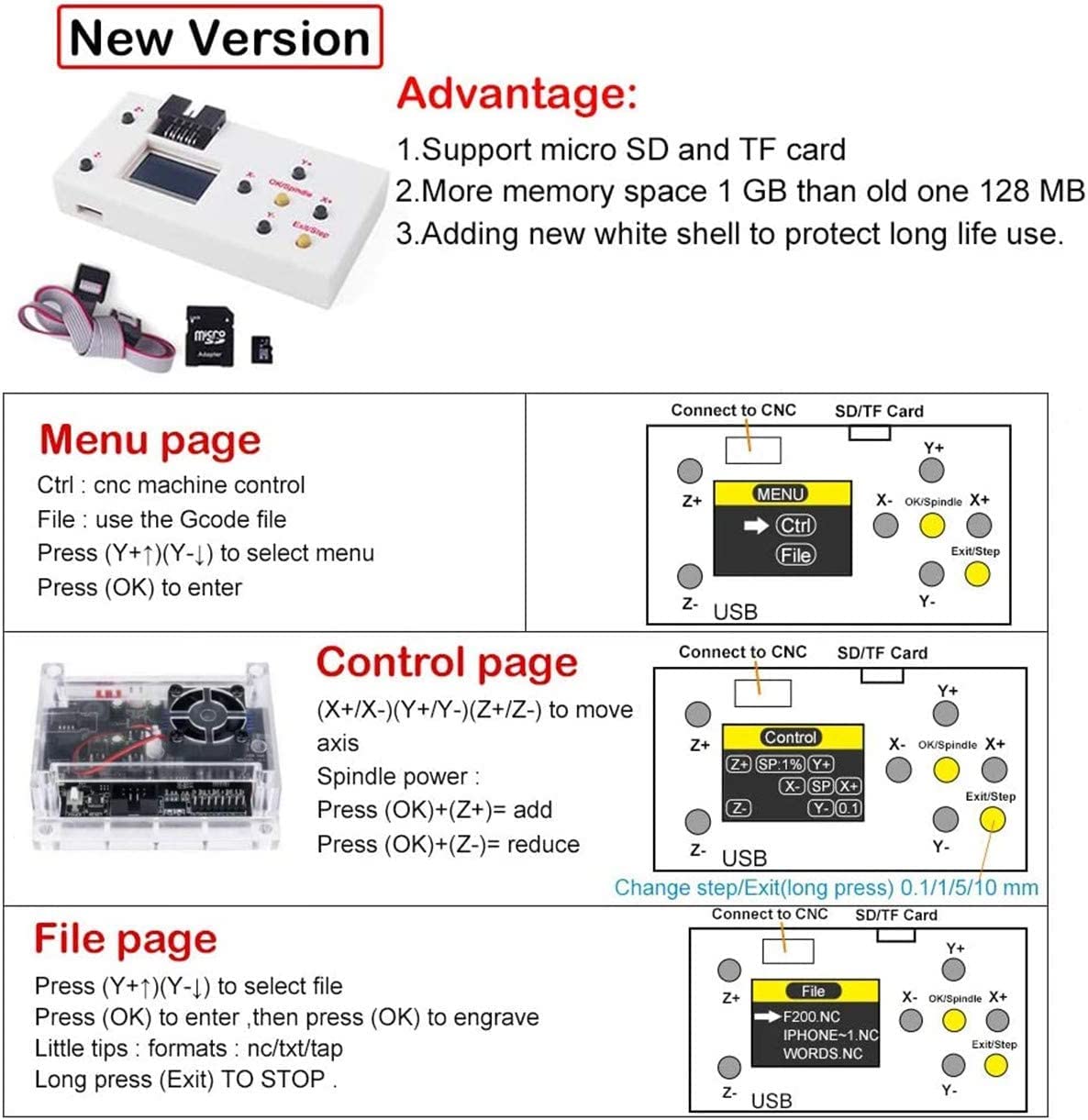

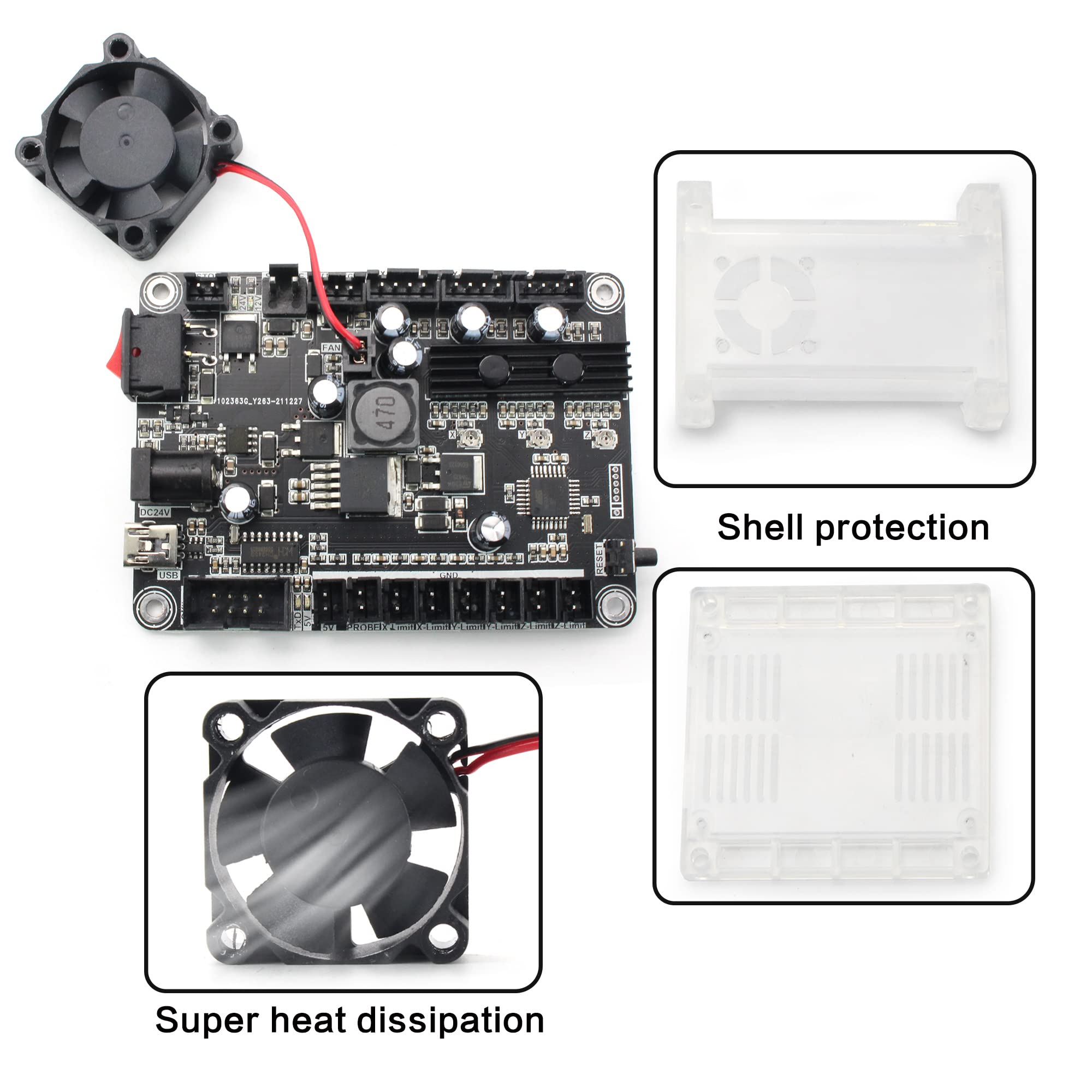

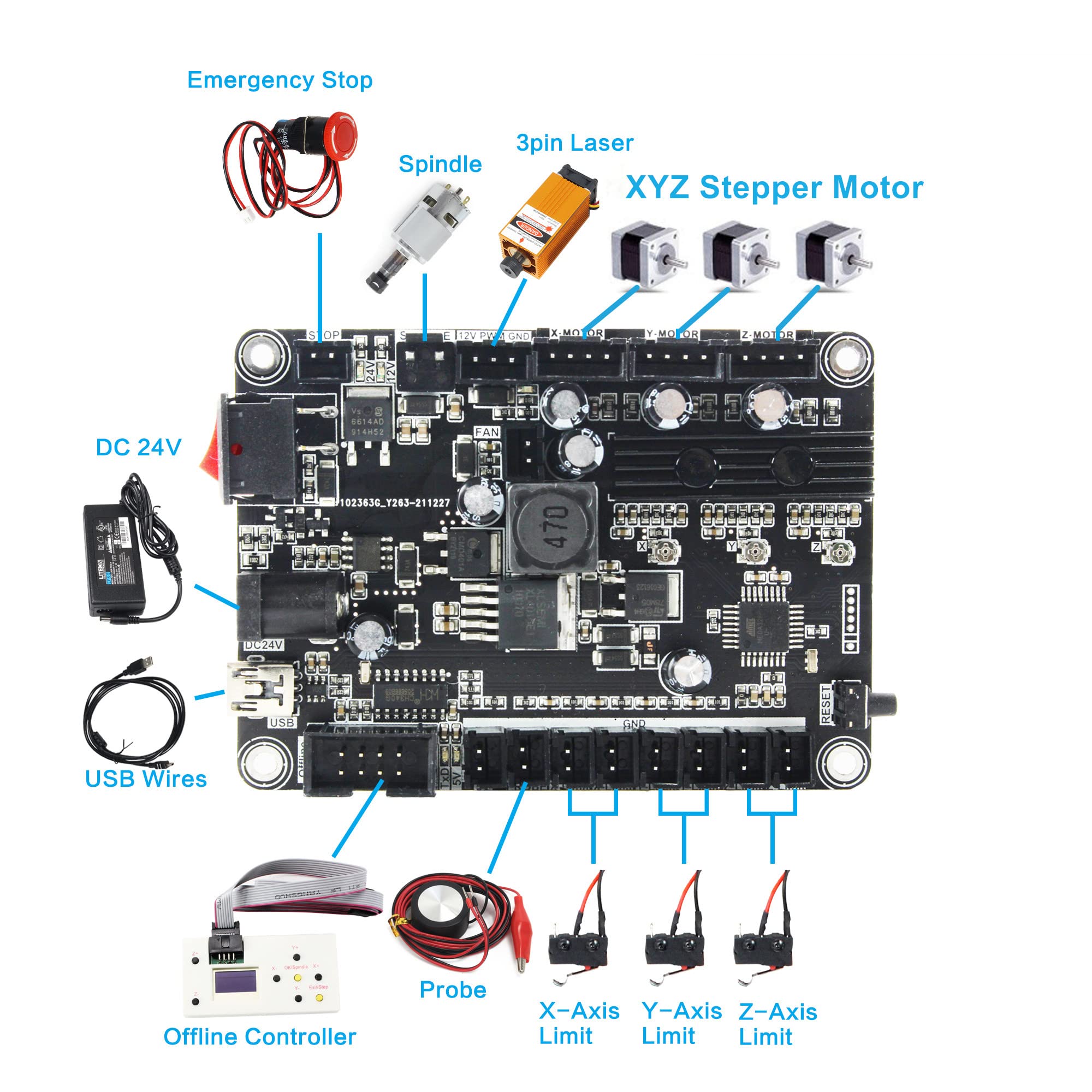

CNC 3018 Package include: 1 x 3 Axis 3018 CNC Router Engaving Machine10 x 20°0.1mm 3.175mm drill bits1 x ER11 Collet1 x GRBL 1.1F Control Board1 x Offline Hand Control with SD Card1 x 775 Spindle Motor1 x Set of allen wrench1 x Power Supply4x Plate clamp1 x 4G U disk include User manual,installation driver and GRBL software Dimensions: 40x33x24cm (16.53" x 13.78" x 10.63”)Working area:30x18x4.5cm (11.8" x 7.1" x 1.8”)Stepper motor: Nema17 42 stepper motor 34MM,1.33A,0.25N.MSystem support: Windows XP,SP3,Win 7,Win 8, Win 10 (32/64 can be)Chuck specification: ER11 ColletProcessing thickness:4.5cmMaterial: Aluminum AlloyControl system:grblcontrol, USB interfaceDrill bits: 10pcs tip 0.1mm ,20 degree,diameter3.175mmControl system: grbl control (candle)Power supply: DC 24V 5.6A power adapter (input voltage 110-240VAC)Processing accuracy: about 0.2mmSupporting files: G-code (.nc/.txt/.tape/.gcode...) GRBL controller board Connection: PC-USB connectionSupport software: GRBL controller/Candle/UniversalGcodeSenderInput voltage: 12-24VDCMaster chip: atmel 328P (arduino nano)Spindle drive chip: MOSFET (recommendation 24V, current : within 10ASpindle PWM speed: SupportSupport stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor Nema17/Nema23)Power Interface: 5.5-2.5mm DC interfaceSupport 3-pins module: support 775 spindle motor Spindle parameters: 775 spindle motor (12-36V) 24V:10000r/minMounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm.Spindle PWM speed: Support;power 0-100% adjustableMotor shaft diameter: 15mm; Motor diameterDrill clamp parameters: ER11-3.175mm ( can be replaced 0-7mm )Control software: grbl control(candle)Spindle Chuck: ER11Processing accuracy: About 0.2mmMachinable material: Wood、 plastic、 PCB、 PVC、 carbon fiber、 acrylic、 density board etcPower: DC 24V 5.6A power adapter (input voltage 110-240VAC) GRBL offline controller Support SD card and TF card at the same time, standard capacity 1G.With this offline controller module, you can directly control the CNC router without connecting it to your computer.After inserting the file into the SD card,the engraving file can be directly identified. You can also use the micro USB cable to connect the offline hand controller board to your computer and save the file directly.Manually control: manually adjust X,Y,Z axis location as engraving starting point,manually open or close spindle,manully open or close cooling fanFile engraving: after off-line controller save file, it can connect the GRBL control board and process engraving,no need to connect PC computerSave file: after the off-line controller connect PC,it will be recognized as USB,large capacity storage device, can access engraving file directly.SD shows it is SD card condition,turn on power supply after insert SD card,otherwise,it won't work.SD card capacity 4G could be recognized. Support oftware: GRBL controller,Candle, UniversalGcodeSenderAdd emergency stop button port,tool probe port and XYZ limit port.Input voltage: 12-24VDCThe spindle supports 0-100% adjustable PWM power.Support limit switch, tool setting, steering gear, cooling fan and other functions.Support PWM / TTL signal control, power 0-100% adjustable!Increase the power button switchCancel the drive module,integrate the imported stepper motor drive,no need to worry about module damage. And integrated heat dissipation aluminum alloy.Add offline recognition function, you can insert offline module and computer at the same time. The machine will automatically recognize whether it is controlled by the computer.Enhanced spindle drive.can support 20,000 rpm spindle.Add the fan port to force heat dissipation Add Offline controller Main Page Ctrl: Machine Control; File: Use the Gcode file; Press [Y+] [Y-] to select; Press[Ok] to Enter Control Page X± Y± Z±: Moving AxisOK/Spindle: Spindle ON/OFFExit/Step: Change Step/Exit (long press)How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed. File Page Common supported formats include nc. tex. tap.Press [Y+] [Y-] to select filePress [Ok] to EnterPress [Ok] to begin if you are readyNote:Long press [Exit] to stop machining Applications CNC 3018 Mini CNC machine small size, light weight, USB interface, GRBL control systems, great cnc router machine for beginers; 3018 cnc machine is very easy to install,stable structure.Main application:can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.soft metal like copper and aluminum and other materials, but can not carve hard metal, jade or other very hard texture of the items.If you change the spindle to a module,then also can carve the kraft paper, wood, leather(wallet), bamboo, rubber. GRBL Software Our parcel include a 4G USB flash drive,you can download the english user manual and GRBL software from the flash drive.File Format (gcode): *.nc, *.ncc, *.ngc, *.tap, *.cnc.Software used to create Gcode: Carbide Create, Artcam, MeshCam, Fusion360, Inkscape etc.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Reviews

*****

Verified Buyer

I've been using this for a while now and I have to say it's kind of fun to use. This is my second CNC machine the first one I built myself using parts from old printers. This one is better though with a decent controller board.I recommend getting the offline controller to as that comes in handy to position the head over the workpiece.Building it takes a little effort but it's rewarding once you are done. I found that when you are tightening the bolts that hold the rails together the T nuts tend to turn and miss the groove. To remedy that I was able to turn the bolt fast with a small screwdriver just to get it snug, then tighten with the supplied hex key wrench. You can also stick another hex key wrench in the groove to keep thevT nut from turning and there are several hex key wrench supplied.I'd say the build takes about 3 hours using the advice above, but it will partly depend on your mechanical abilities.So far I've cut mostly wood with it but I intend to do circuit boards also at some point.The quality of the frame is pretty good too. It's very study and stiff, and the stiffness is what you really need so the positioning will work right. There's no wobble or anything like that. Just make sure that after you get the frame assembled, go over all the bolts and make sure they are tight.I might update once I start doing circuit boards.
