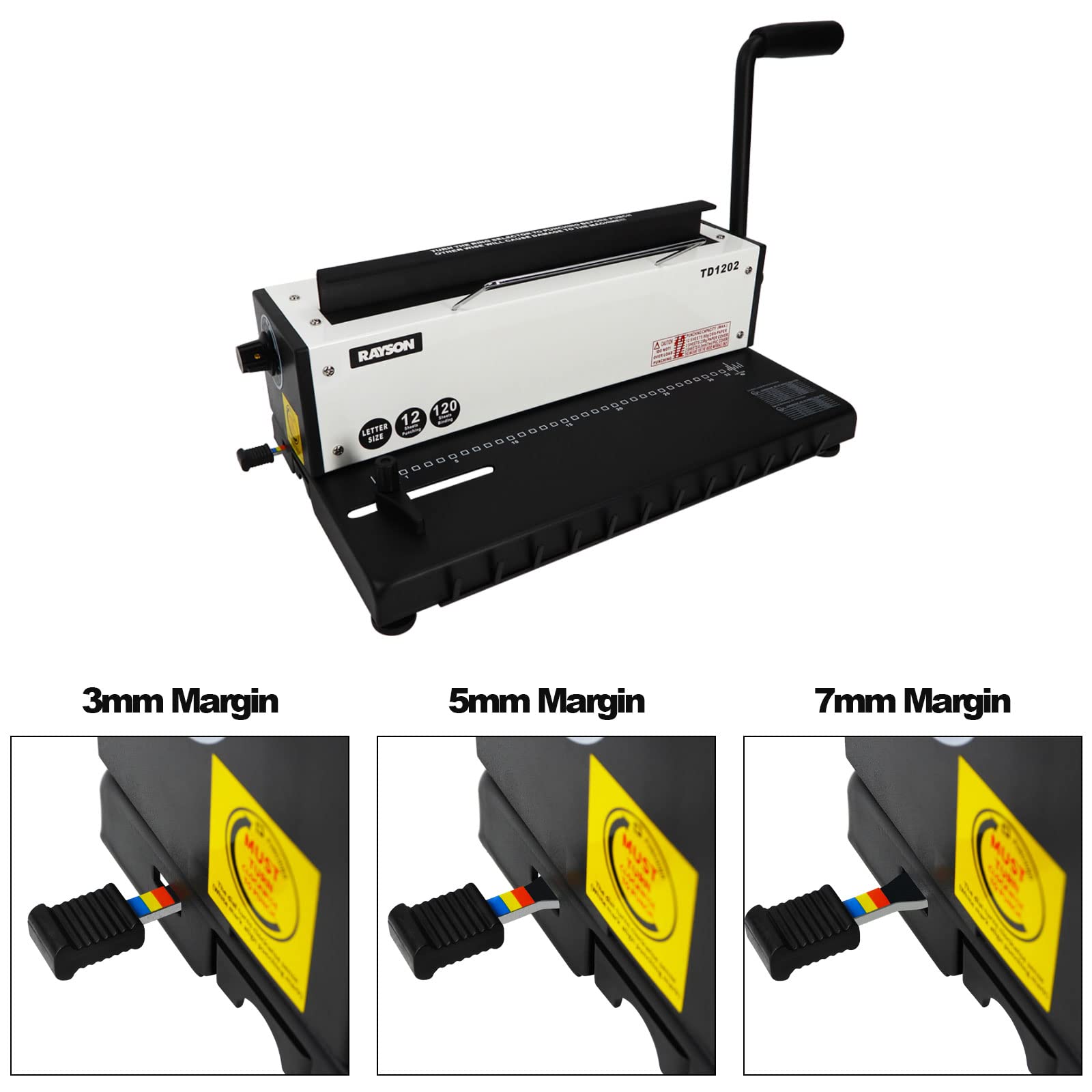

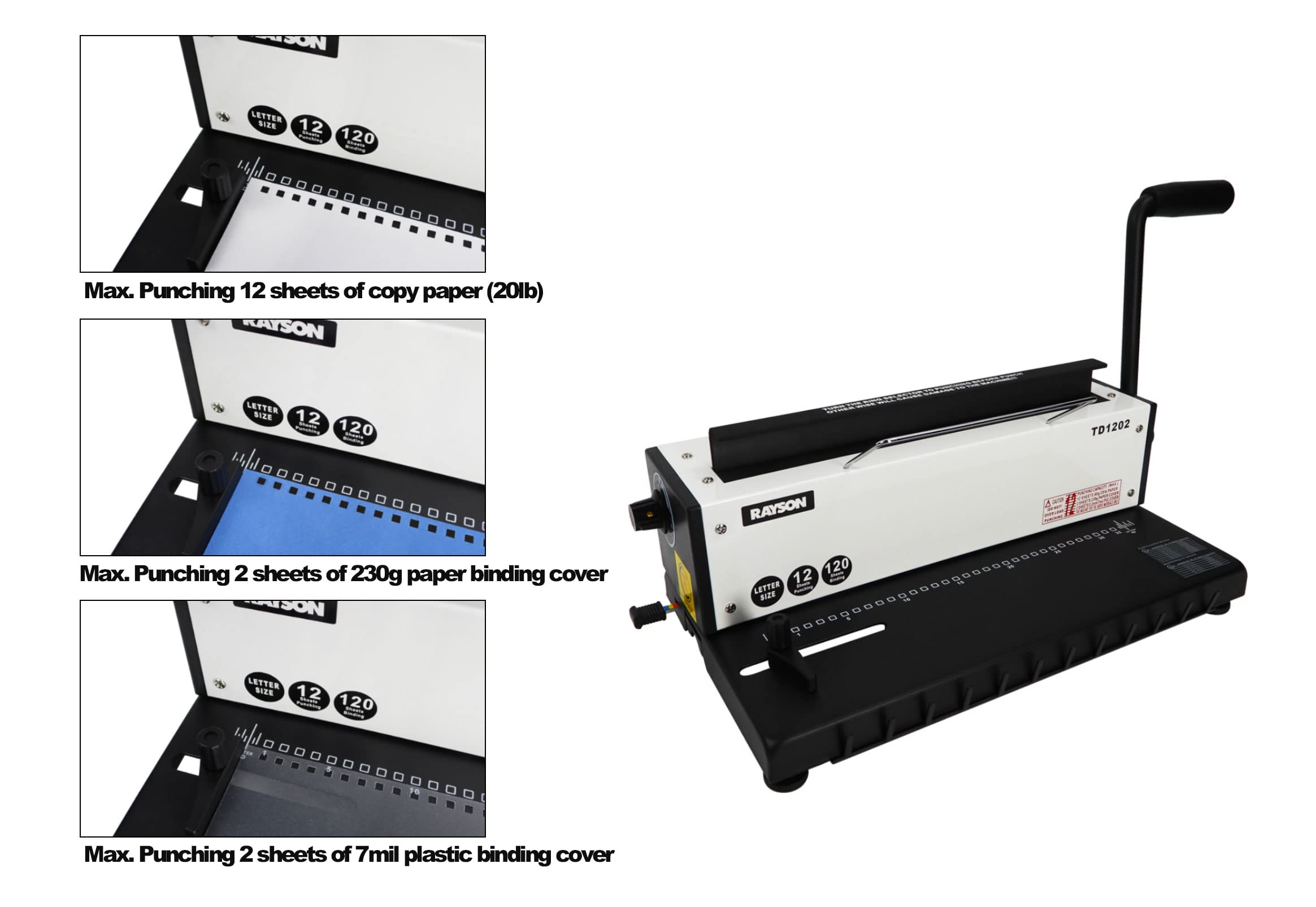

Durable Metal Construction for Long-Lasting Use The Rayson TD1202 wire binding machine is made of durable metal construction, which is a traditional and perfect machine for punching or binding documents, reports or presentations. It can punch up to 12 sheets (20lb/80g paper) at the time and binds up to 120 sheets with a 3:1 pitch double loop wire or spiral binding coil, which means there are three holes per inch of your book's spine. Max. binding ring size: 9/16" wire-o ring or non-limited spiral binding coil. The edge distance can be adjusted to 3mm, 5mm, and 7mm. Add a sleek, professional finish to presentations, reference documents, proposals, and more with Rayson TD1202 binding machine. Note Rayson's binding machine comes with oiled cutting blade for protecting the punch die away from rusting. To avoid staining on the important document, please use oiled removing paper(enclosed ) to punch first in order to clean up the blades. Model: TD1202 Features Holes quantity: 32; Holes shape: Square; Holes size: 0.15" x 0.15" Max. punching capacity: 12 sheets (20lb); Max. punching thickness: 1.5mm (0.058") Twin-loop wire binding spines: From 1/4" (6.4mm) - 9/16" (14.3mm) Binding capacity: 120 sheets (20lb) Item Weight: 15.43lb Packaged Weight: 16.76lb Streamlined, easy-to-use design boosts productivity Rayson TD1202 Wire Binding Machine Durable Metal Construction The Side Margin Adjustment (Paper stopper) Align papers to left of your page using the side margin adjustment.Enhanced accuracy edge guide for pinpoint punching which can control where the holes are punched on paper of any size. Adjustments can be made with ease. Side and Depth Margin Adjustments. The TD1202 has side and depth margin adjustments.Control the distance of the holes from the bound edge of your page using the lever on the back of the machine to accommodate or thicker books. Binding with Coil Binding Spines After punching, In addition to binding with wire binding ring, but also can bind a book or file with 3:1 ( it means per inch has 3 holes ) coil binding ring on a desk. Get more information about binding with coil binding ring with Roger's shop. Binding Spines Used with TD1202 Binder 3:1 Pitch Spiral binding Pros: Flexible, durable, many colors, large range of sizes, 360° page turn, lay-flat. 3:1 Pitch Wire-O Binding Pros: Professional, clean, attractive, 360° page turn, lay-flat.Wire-o binding ring size: 1/4" (6.4mm); 5/16" (7.9mm); 3/8" (9.5mm); 7/16" (11.1mm); 1/2" (12.7mm); 9/16" (14.3mm) 3:1 Pitch Click Binding spines Pros: Professional, clean, attractive, 360° page turn, lay-flat. Tips: Do not use this machine with 4:1 pitch spiral binding coil. Reason of Punching Not Completely Why some of the holes could not cut through？ Here is one of a solution~! Set the dial to punching position while punching, ( The dial on the side of the machine, this is very important for punching all of the holes clearly through. )When ready to bind, match your wire spine's diameter size to the appropriate measurement on the dial on the side of the machine. Consider All The Uses School Uses Text booksStudy guidesWorksheetsReportsArt projectsPresentationsReference documentsTraining toolsFinal examsMarketing and sales material Binding Spines Used with TD1202 Binder 3:1 pitch wire binding spines3:1 pitch coil binding spines3:1 pitch click binding spinesAnd so on. Any 3:1 pitch accessories can be used with TD1202 wire-o binder. But also have to pay attention on the holes shape is Square, and the holes size is 0.15" x 0.15" (4mm x 4mm). Recreational Uses CalendarsSports rosters and schedulesTravel literatureTraining bookletsPractice tipsRecipe cardsPhotographsCertificatesScrapbookingPresentations Click Binding Spines Coil Binding Spines Cutter Crimper Plier Wire Binding Spines Paper Cutter Trimemr Buying Options Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 4.2 out of 5 stars 46 4.6 out of 5 stars 287 4.2 out of 5 stars 52 4.4 out of 5 stars 264 — Price $17.84$17.84 $21.99$21.99 $14.95$14.95 $28.99$28.99 — no data Color Pink, Clear, Orange, Black, White, Blue Black Silver+Red Black Pink Size Choose 1/2", 3/5" 5/16", 3/8", 9/16", 5/8", 7/16" - no data 1/4", 5/16", 3/8, 7/16", 1/2", 9/16" - no data
