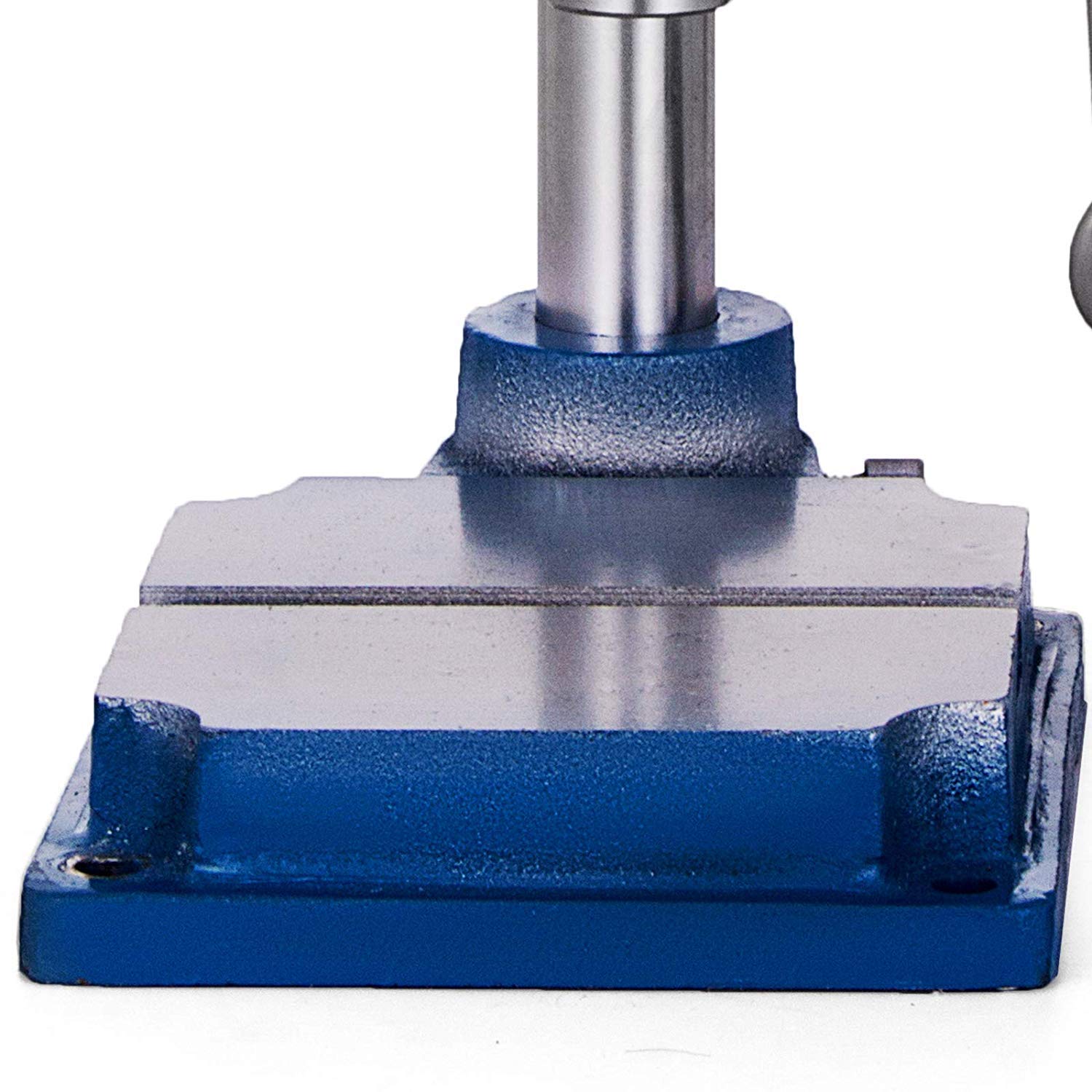

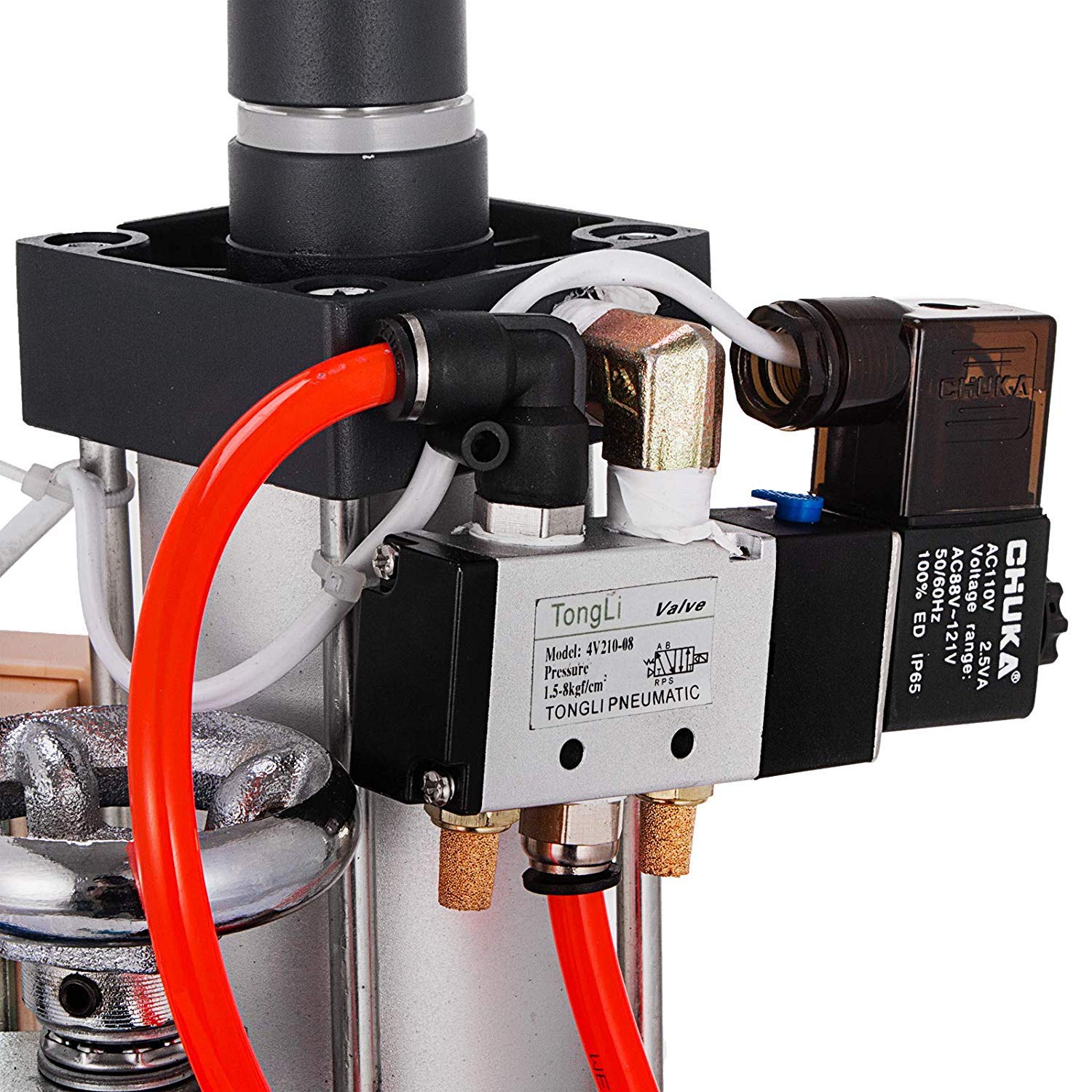

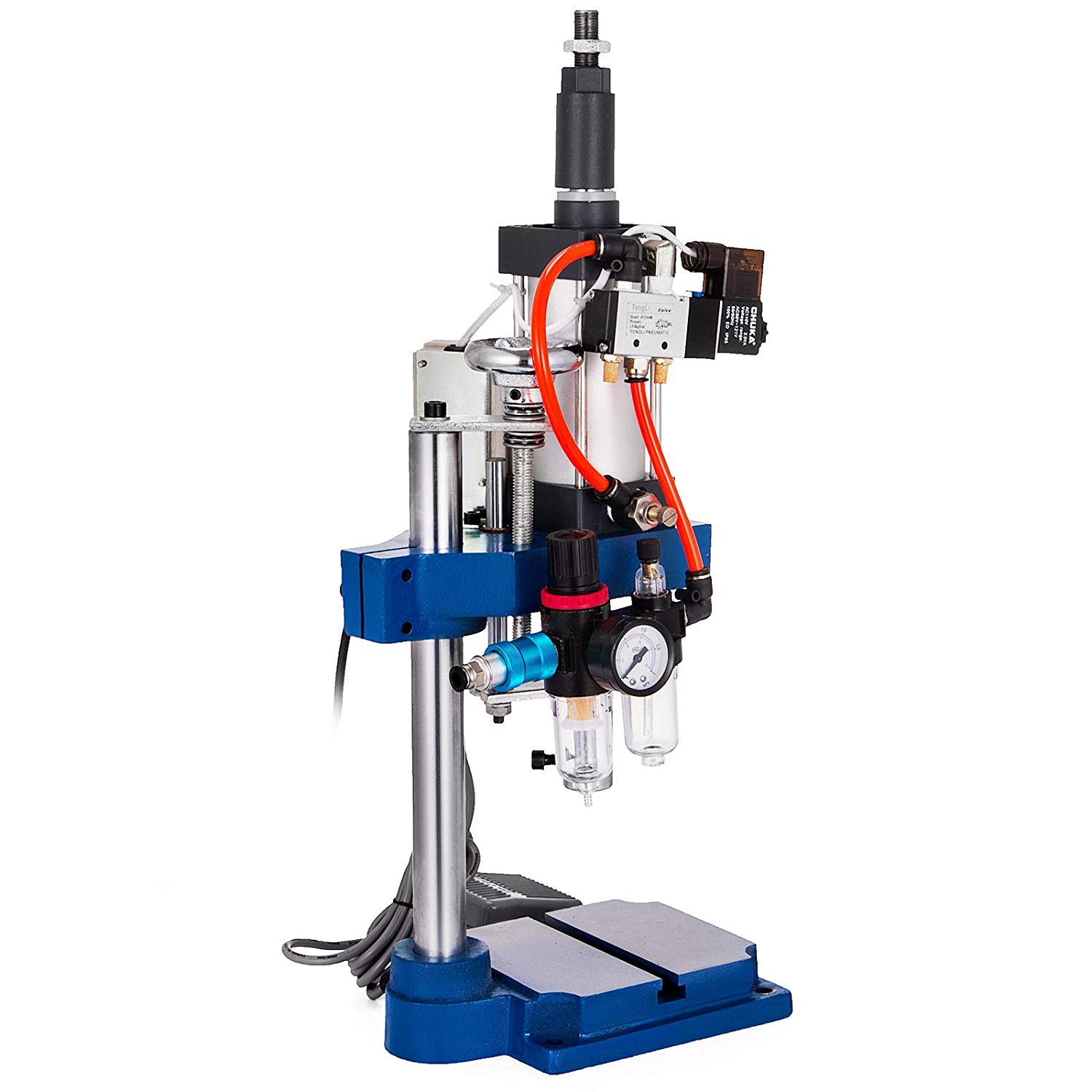

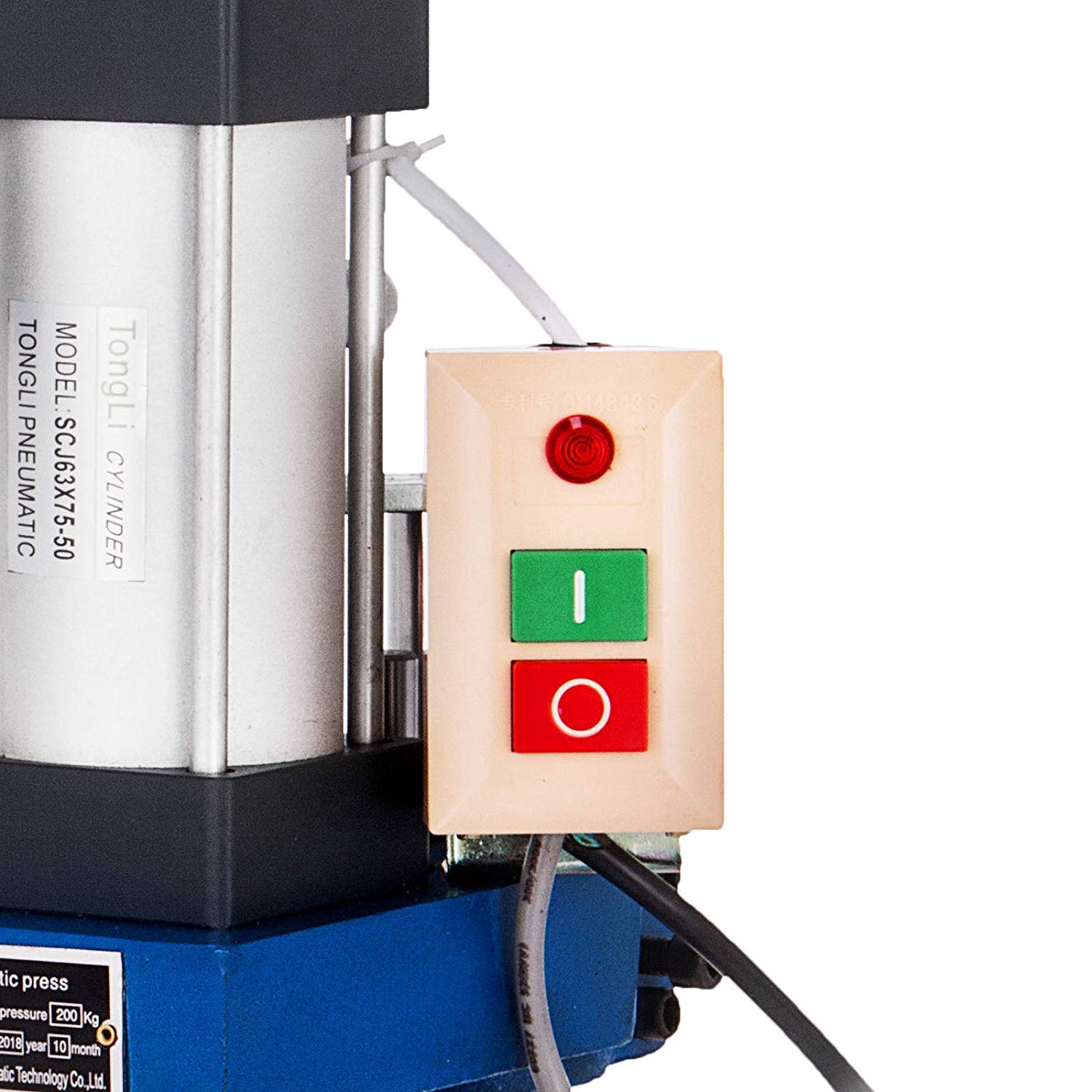

Highly Sealed Cylinder Cylinder diameter 2.5"/63 mm, the maximum stroke of 2.95"/75 mm, adjustable range of 2"/50 mm. Adopt a two-way sealing design, good sealing effect, high power conversion rate. Hand Buttons & Footswitch Use manual control of stamping, with a footswitch to start work, double protection device, safe and reliable operation. The footswitch cord is 6 ft/1.8 m long and easy to use. Precision Design Rotate the height adjustment handle to adjust the height of the body easily. The solenoid valve has high precision and sensitivity and can operate at a high frequency for a long time. T-groove Base Pneumatic presses with a 9" x 6" size T-shaped groove HT200 cast iron base, wear durability, securely mounted. It is easy to install various molds, and it is very convenient to install and disassemble. Air Source Processor Precision instruments can be any combination of decomposition to meet the different needs of air. And the oil cup polymeric material, heat sealing performance, impermeable airtight. Multifunctional Use Pneumatic punching machine is used for pattern hot stamping and can combine workpieces, punching, bending, riveting, extrusion, forming, punching, etc. Specifications Voltage: 110V ACPower Source: PneumaticOperation Pressure: 0.4-0.7 Mpa (4-7 kg/cm², or 110-140 PSI)Theoretical Output Pressure: 1121-1962 N / 114-200 kgDie Hole Diameter: 0.63" / 16 mmDepth of Throat and Mouth: 5.3" x 5.9" / 135 x 150 mmStroke: 5.9" x 5.3" / 150 x 135 mmTracheal Size: 0.31" x 0.2" / 8 x 5 mmAdjustable Cylinder Size: 2.5" x 2.95" / 63 x 75 mm Package Content 1 x Pneumatic Punch Press Machine 1 x Foot Pedal 1 x Manual Top-Grade Vertical Pneumatic Punch Press Machine Our pneumatic press uses high-performance cylinders, no noise in the hydraulic system or under standby status. Use high accuracy rotational resistance guide rod and guide plate. Saves electricity consumption and lowers production cost. High Accuracy Humanized Design Simple Operation Quick Adjustment Widely Applicable
