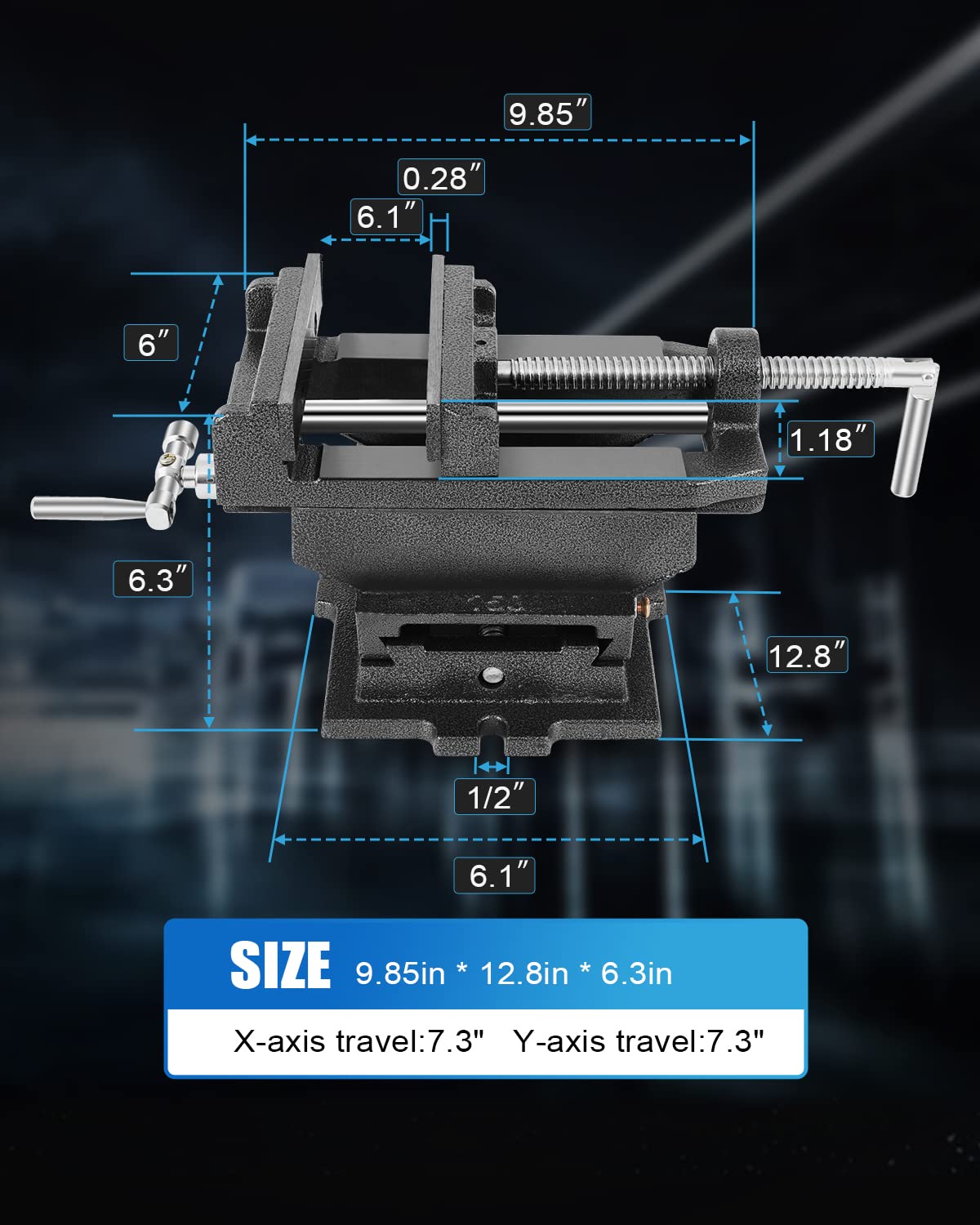

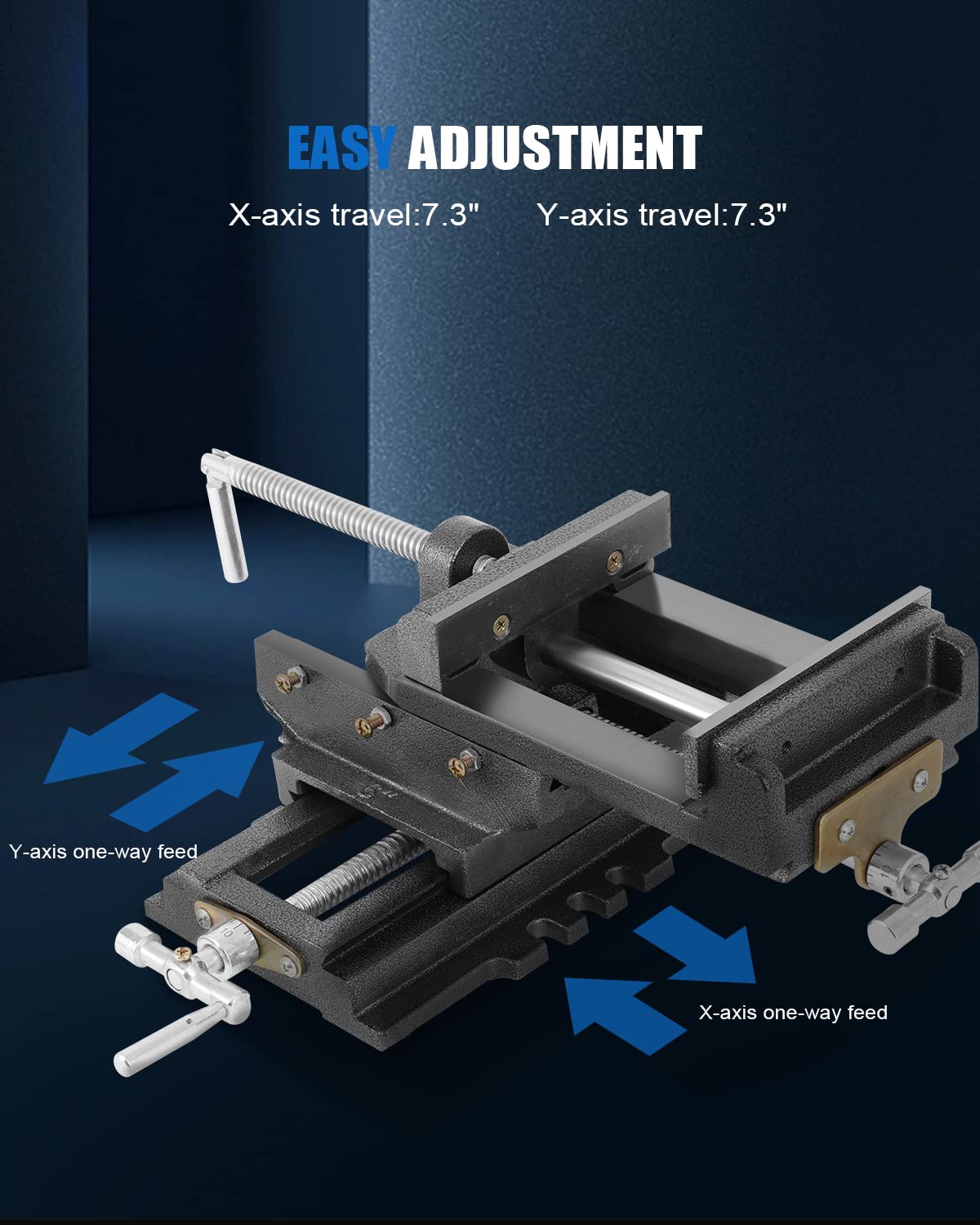

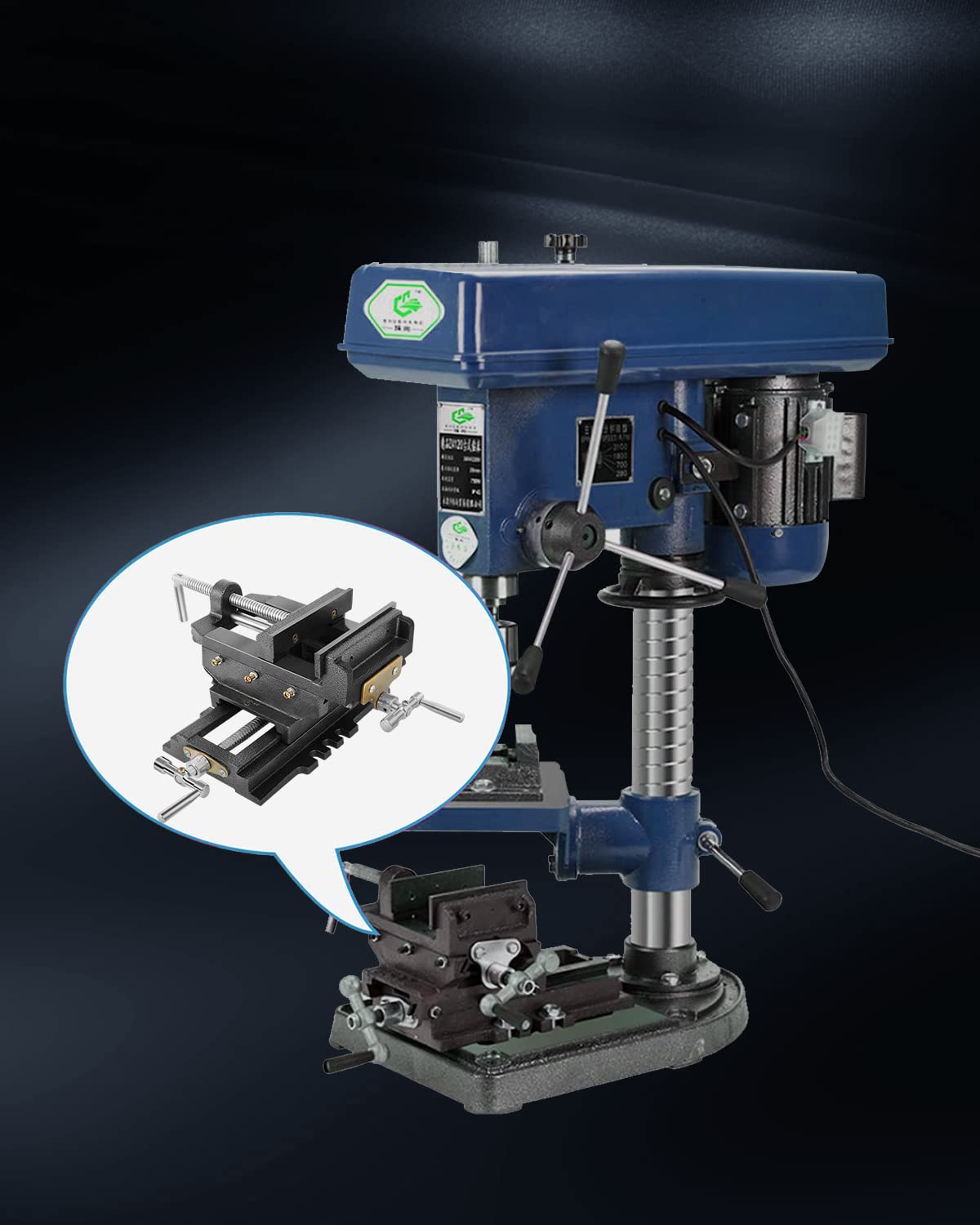

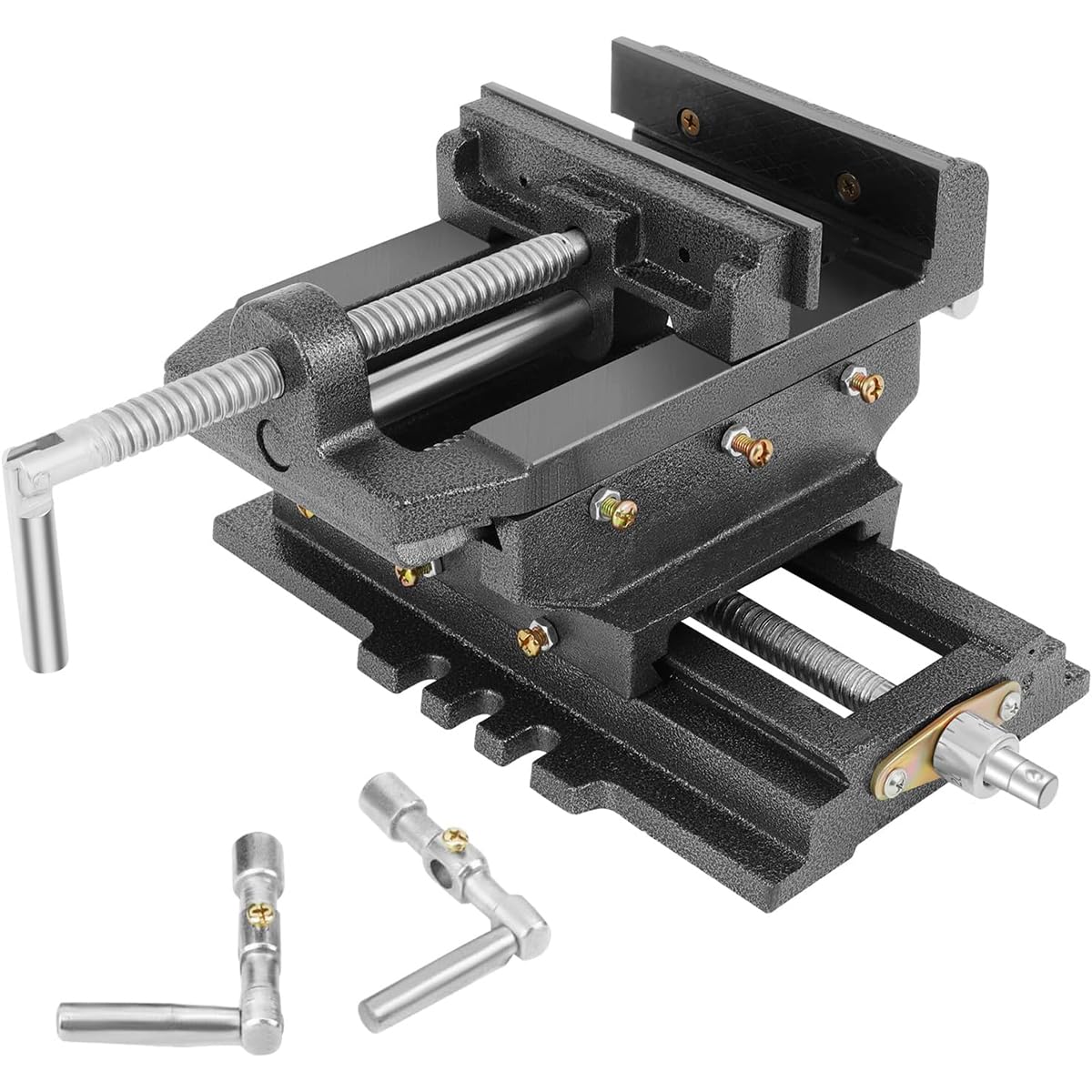

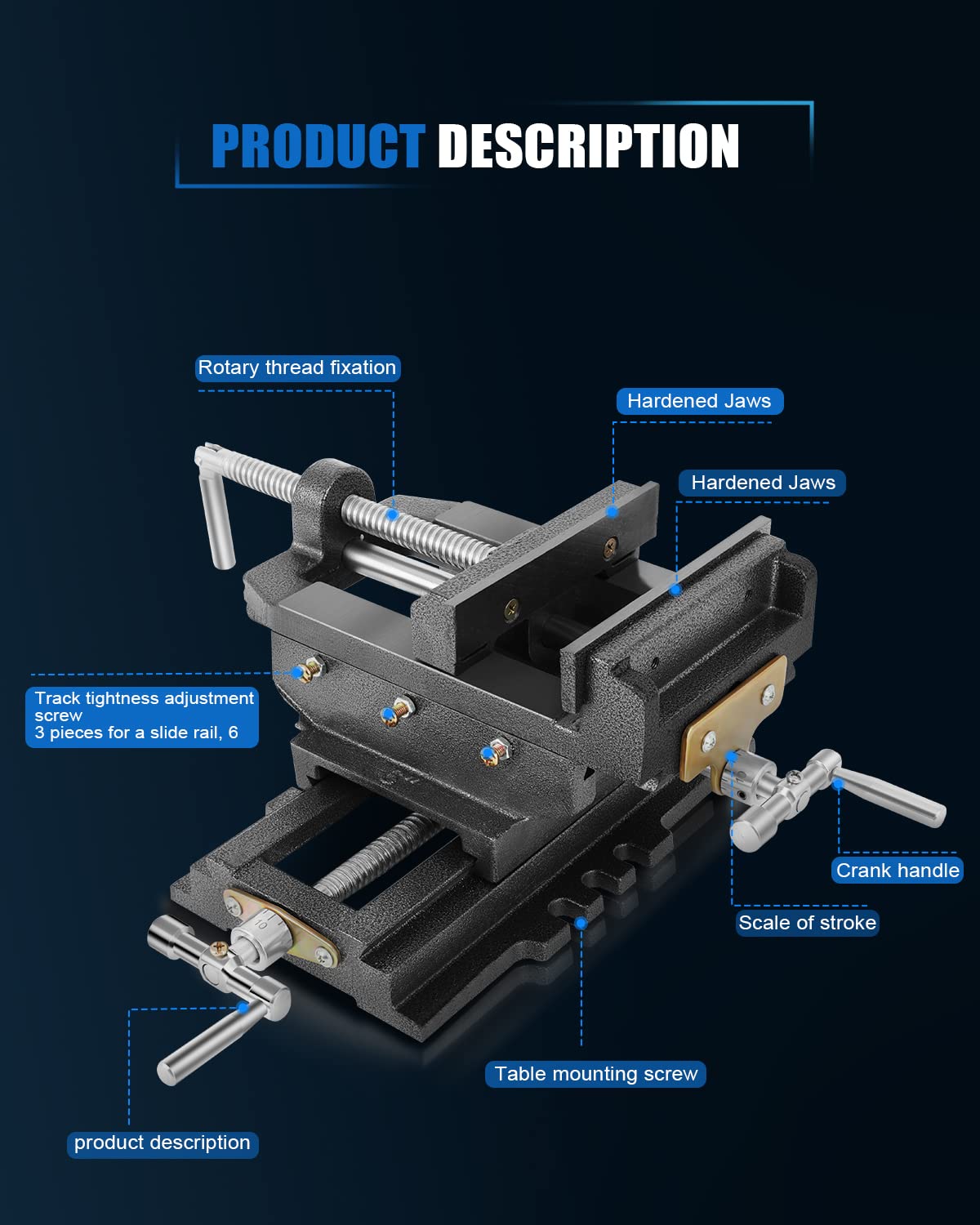

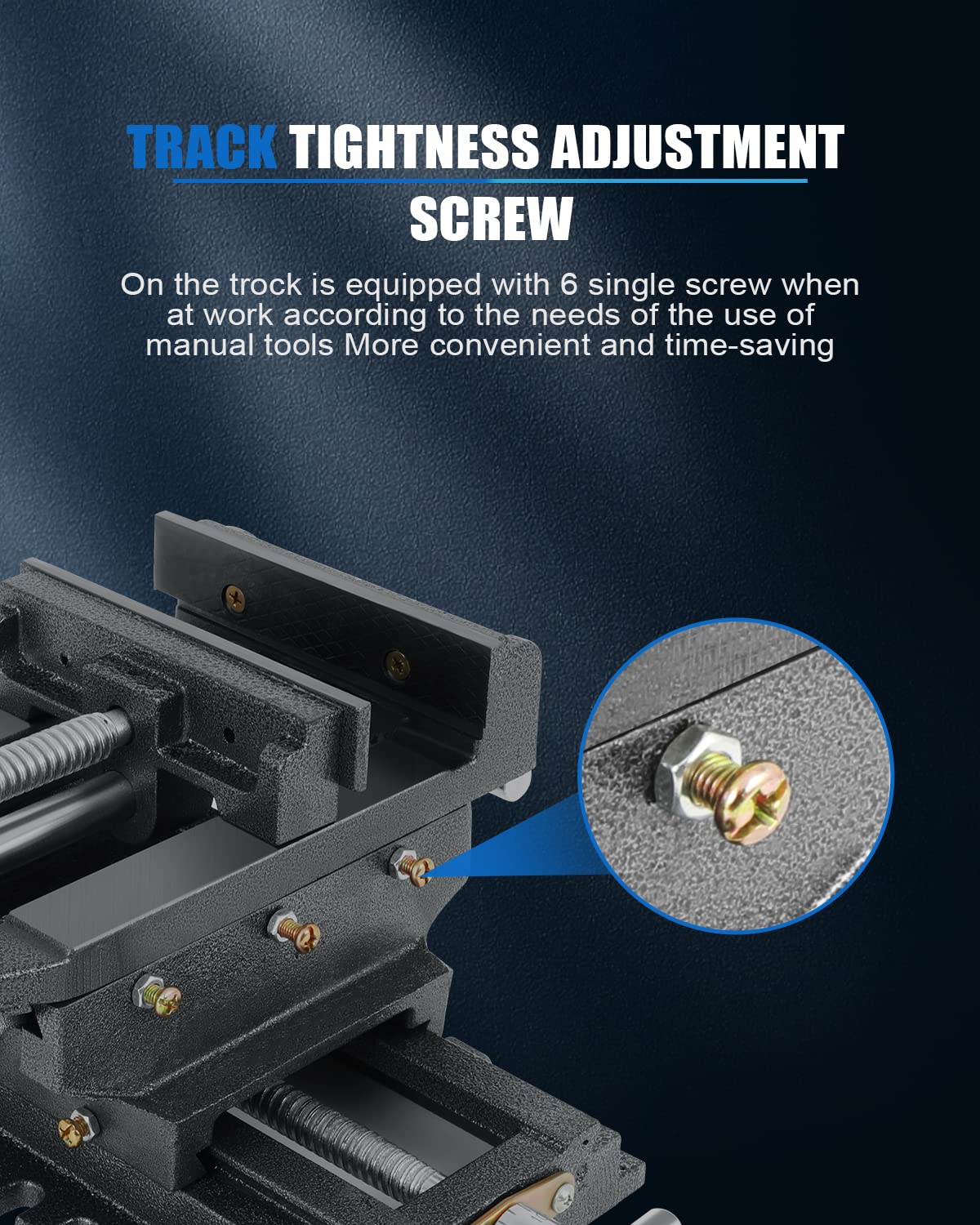

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. This 6 inch cross slide vise is an essential tool for fitters. Most work of the fitters is completed by using the clamping vise such as sawing, filing, chiseling and some of assembly and removal jobs. Specification Type Cross Sliding Vise Material Cast Iron Jaw Width 6" (150mm) Max Jaw opening 6.1" (155mm) Jaw Height 1.18" (30mm) Mounting Hole Diameter 1/2" (12.7mm) Mounting Hole Screw Diameter 0.4" (10mm) Hole Spacing on Both Sides 6.1" (155mm) X-axis travel 7.3" (18.5mm) Y-axis travel 7.3" (18.5mm) Vise Length 12.8" Vise Width 12.2" Vise Height 6.3" Gross Weight 28.7 lb Feature The cross-nose pliers adopt two mutually perpendicular feed mechanisms, which can realize simultaneous movement in X and Y directions, and can also be installed with a base to achieve 360° rotation.When used in conjunction with a desktop drilling machine, through manual feeding in two directions perpendicular to each other, multiple holes or multiple keyways on the same plane can be drilled in one clamping. It can also be used as an accessory of iron bed or grinding machine or as a tool alone. Feature High-quality cast iron The pliers body is made of high-quality materials with high tensile strength; the surface is sprayed with plastic to prevent rust and corrosion. Tightness adjustment There are three tightness adjustment screws on both sides of the track, which is more convenient to adjust the tightness and improve work efficiency. High precision screw High-precision screw, smooth movement, no clogging, hardened, not easy to deform, high strength. Jaws are detachable The jaw jaw adopts a detachable design, which can be replaced quickly, reducing costs and improving work efficiency. Feature The base can be fixed There are several fixing holes on the base, and the diameter of each fixing hole is:1/2" ; The distance between the center holes on both sides: 6.1". Strong clamping force The milling vise has a strong clamping force and can hold the workpiece very firmly. Jaw Width: 6", Maximum Jaw Opening: 6.1" XY axis movement The X/Y axis feeds in one direction, saving adjustment time; the surface of the guide rail is smooth, and it can move forward and backward freely. Scale The dial is precise and clear, and the fine-tuning knob can be adjusted precisely, one step, 0.1mm forward or backward, saving time and worry. Vise 6" Cross Slide Vise 4" Bench Vise 2.5" Machine Vise Type Cross Slide Vise Type Bench Vise Type Machine Vise Jaw Width 6" Jaw Width 4.13" Jaw Width 2.5"
