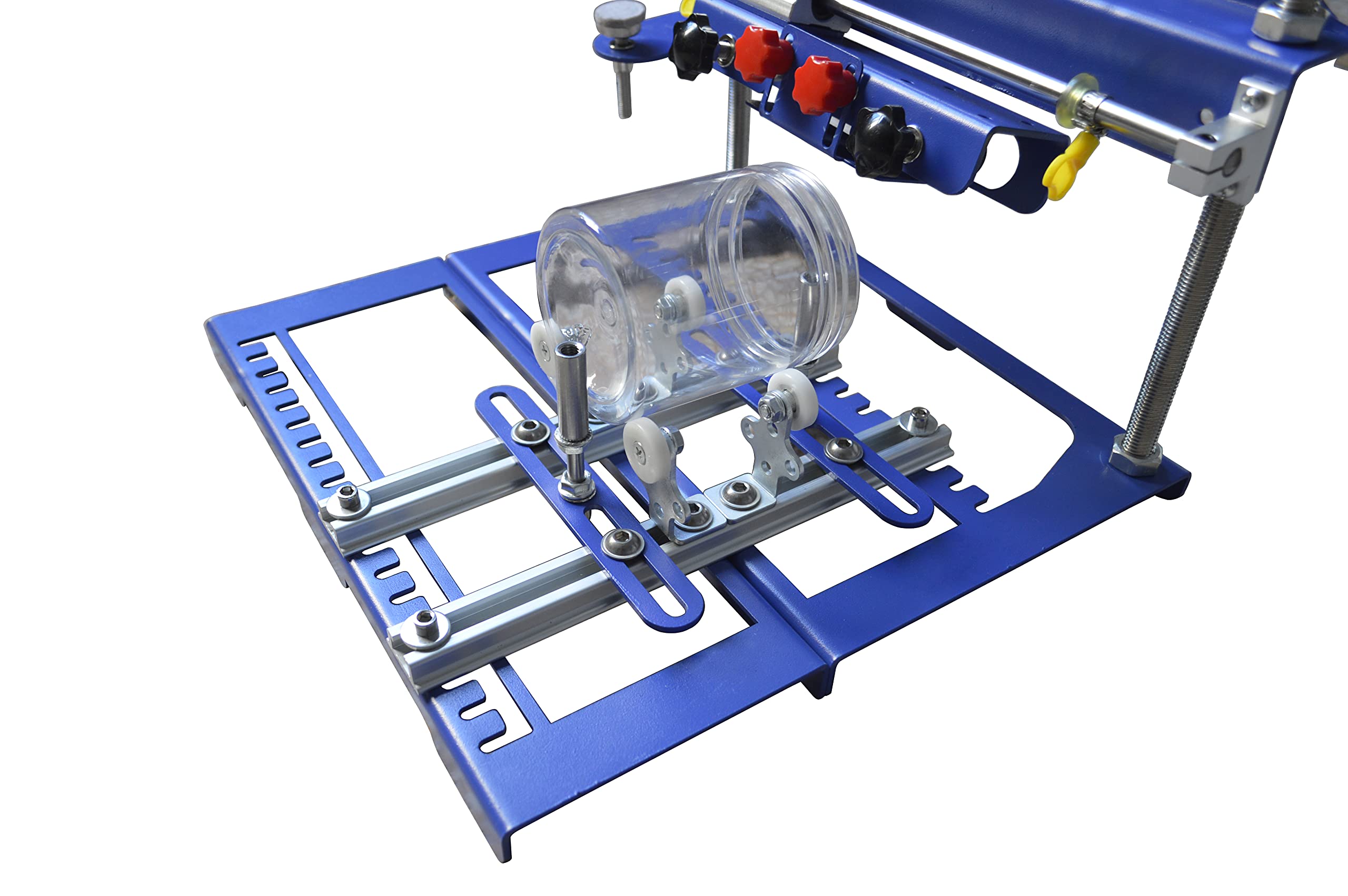

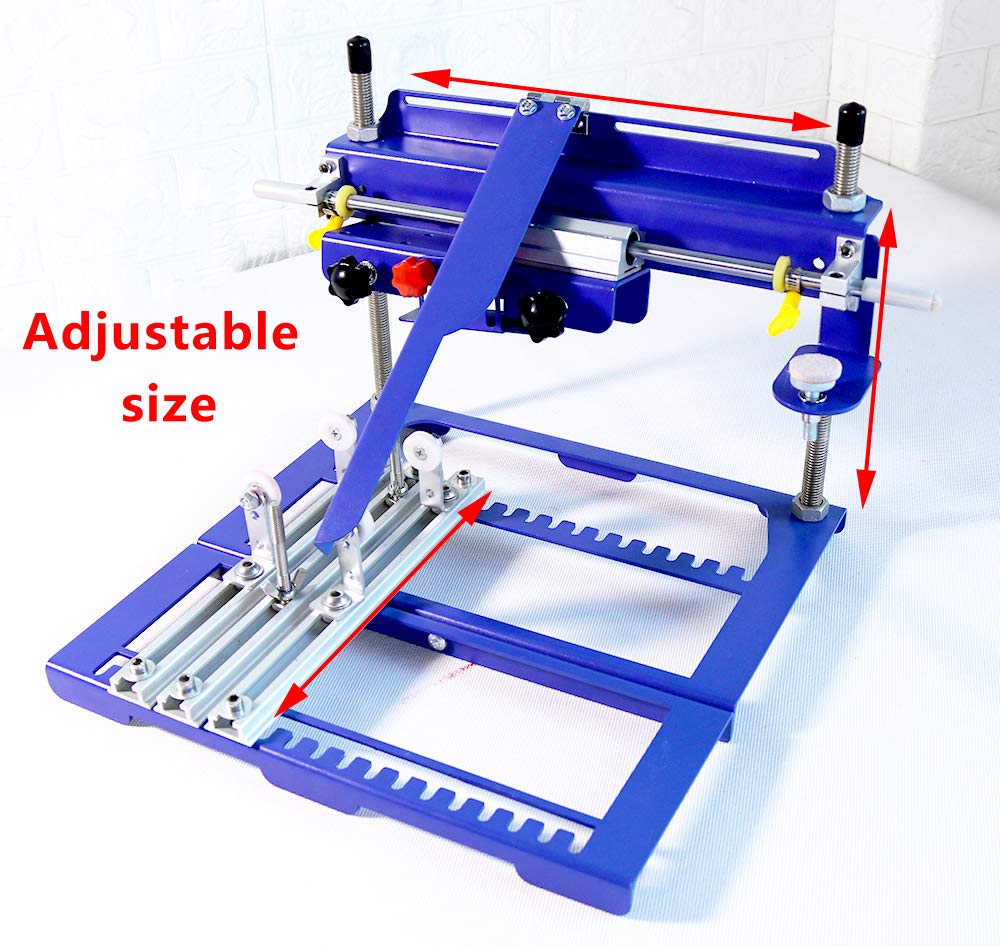

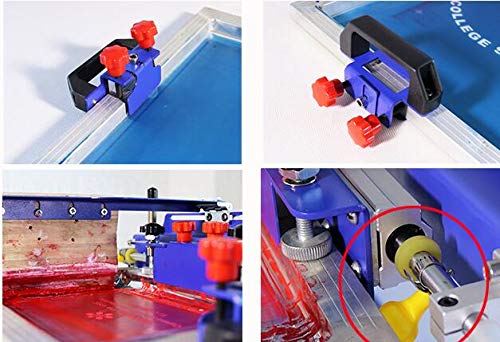

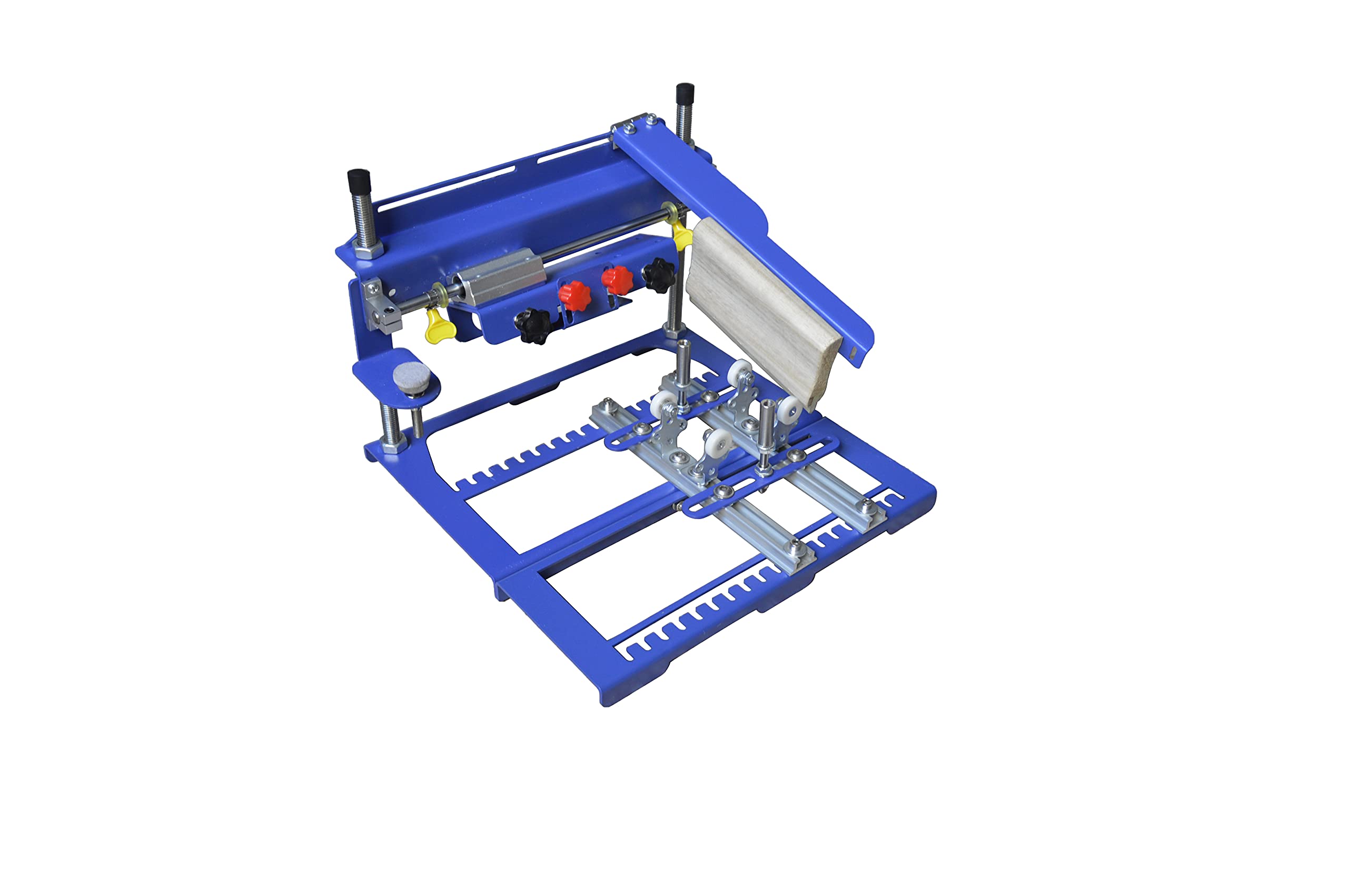

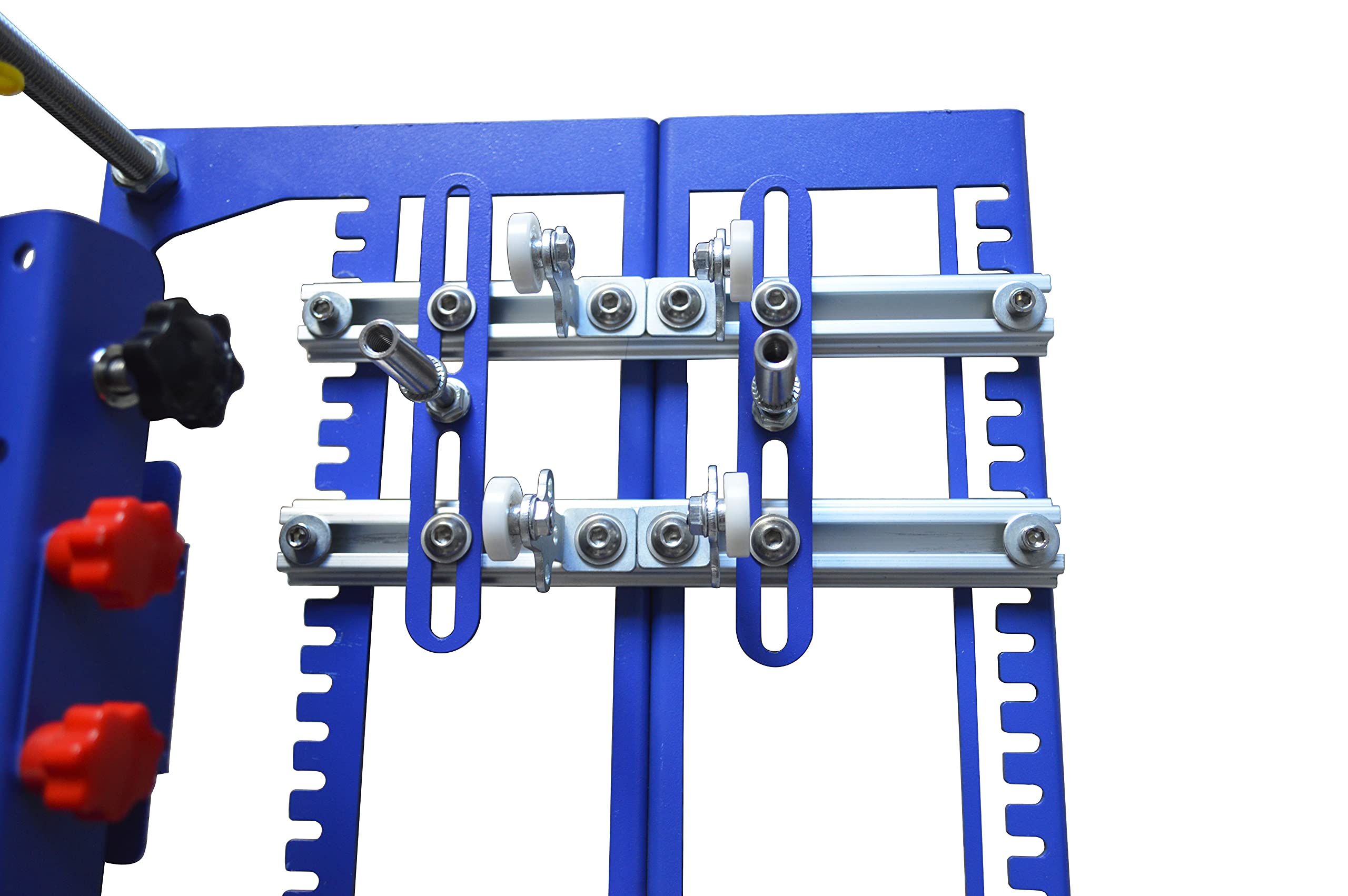

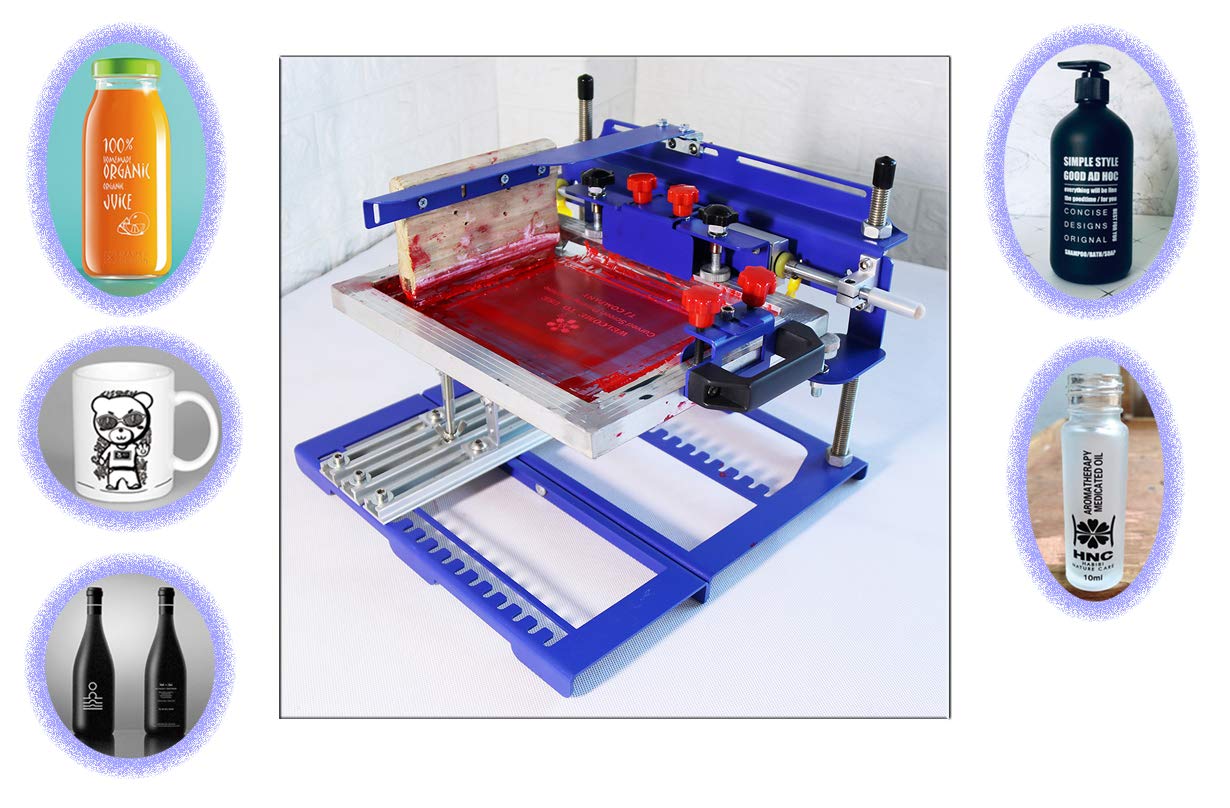

6x8 in Cylindrical Screen Printing Machine 8x10 in Cylindrical Screen Printing Machine Add to Cart Add to Cart Customer Reviews 3.3 out of 5 stars 4 3.5 out of 5 stars 7 Price $189.99$189.99 $259.99$259.99 Max pattern size 6x8 in（15x20 cm） 8x10 in（20x25.4 cm） Model SPE-A SPE-B Printing diameter 170mm 170mm This screen printing machine is mainly used for printing item with flat surface in cylinder or cone shape, such as bottles，mugs, pen ,rod, bucket. For cylindrical or conical type products, the printing surface has a large concave or convex, the printing surface has spots and other non-plane printing is not suitable for the machine. This curved screen printing machine is mainly used for the printing of cylindrical and conical products with the diameter below 170mm. The machine adopts left and right push-pull structure.Installation parts can be adjusted as needed, it is suitable for left or right hand easy operation.Suitable for printing patterns with width less than 200mm;Length less than 150mm;Suitable for all kinds of screen plate with the outer diameter less than 260*450mm and thickness less than 35mm. The machine is positioned by adjusting the height of the rear main frame,the rear main beam according to the height of the substrate,by adjusting the stand column screw to adjust up and down.The upper and lower adjustment range is 200mm.It can used for printing cylindrical and conical products with the diameter below 170mm Substrate printing rack can move from left to right,front to rear,three fixed alumium bar in the bottom can be directly installed on the base,the aluminum bar base can move 290mm from left to right;Both sides aluminum alloy strips are substrate placement rack installation strip,the middle is substrate positioning rack installation strip.Three mounting bars can be moved around as needed.Lock position in the base front and rear 19 u-shaped holes(each hole spacing 15mm),to ensure that the installation strip positioning accurate. Adopts three sets of substrate to place rollers,,metal bearing rollers(diameter 19mm);Nylon bearing rooler(diameter 25mm);Plastic bearing roller(diameter 50mm)can be changed according to the user's needs.Main frame and accessory frame can be installed with three rollers The installation of the screen plate is bidirectional fixed,the upper handle fixed screen frame;The baffle in the middle of the chuck is adjusted according to the width of the screen frame.After sticking to the inside of the frame,fix the two handles to fix the screen plate tightly.It can be applied to all kinds of screen plates with high,wide 10-35mm. The screen plate support base is mainly used to support placement of the screen plate after printing,prevent the screen plate falling down when support by hand;The base can be adjusted up and down according to the thickness of the screen plate to suit the best support. The screen frame with a special handle directly fixed on the screen frame,two installation methods,it can be installed in the upper part of the screen frame,it also can be installed on the side of te screen plate,it is easy to push and pull from left to right,the handle can be arbitrarily fixed in any part of the screen frame,the upper red handle and the front baffle fixed screen plate,to ensure that the screen plate firmly fixed on the handle.The handle fits various mesh frames within a thickness and width of 35mm Squeegee rack is used for self-tapping wood handle squeegee,and it is suitable for the length of 200mm wood handle squeegee.The rack can be moved about 250mm according to the position of the pattern of the screen plate The screen plate movement distance positioning;Both sides of the optical axis are equipped with positioning rings and anti-impact rubber rings.The positioning rings are adjusted to the appropriate position according to the pattern size.Anti-impact apron can prevent the metal between the impact of abnormal sound,protect machine parts. This machine can realize the main operation of the left hand by adjusting three parts.Adjust the screen frame handle;Adjust the position of the slider bearing;Adjusting the support base of the screen plate.
