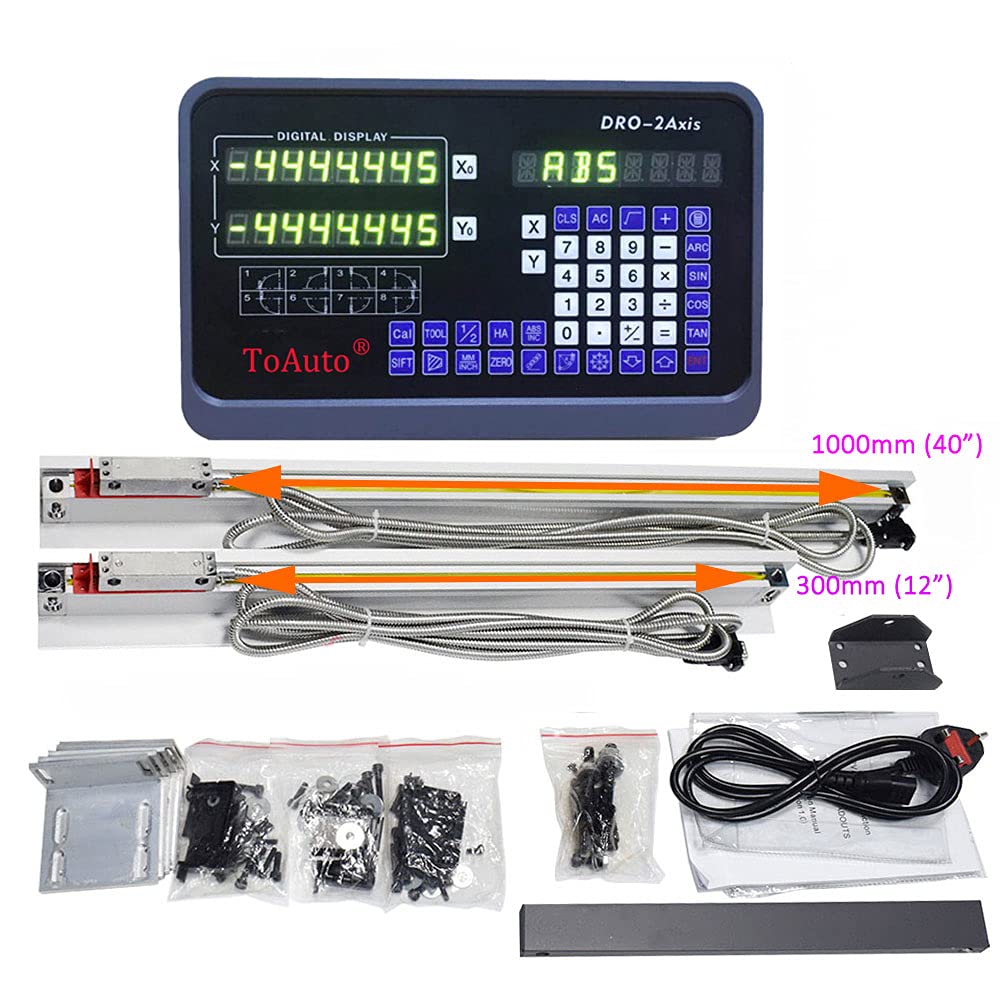

2 Axis DRO Digital Readout Display with 2pc Glass Linear Scale - 5 Micron High Precision for CNC Mill & Lathe Machines (300mm+1000mm) | Perfect for Metalworking, Woodworking & DIY CNC Projects

$151.79

$275.99

Safe 45%

2 Axis DRO Digital Readout Display with 2pc Glass Linear Scale - 5 Micron High Precision for CNC Mill & Lathe Machines (300mm+1000mm) | Perfect for Metalworking, Woodworking & DIY CNC Projects

2 Axis DRO Digital Readout Display with 2pc Glass Linear Scale - 5 Micron High Precision for CNC Mill & Lathe Machines (300mm+1000mm) | Perfect for Metalworking, Woodworking & DIY CNC Projects

$151.79

$275.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

10 people viewing this product right now!

SKU: 45218112

Guranteed safe checkout

Description

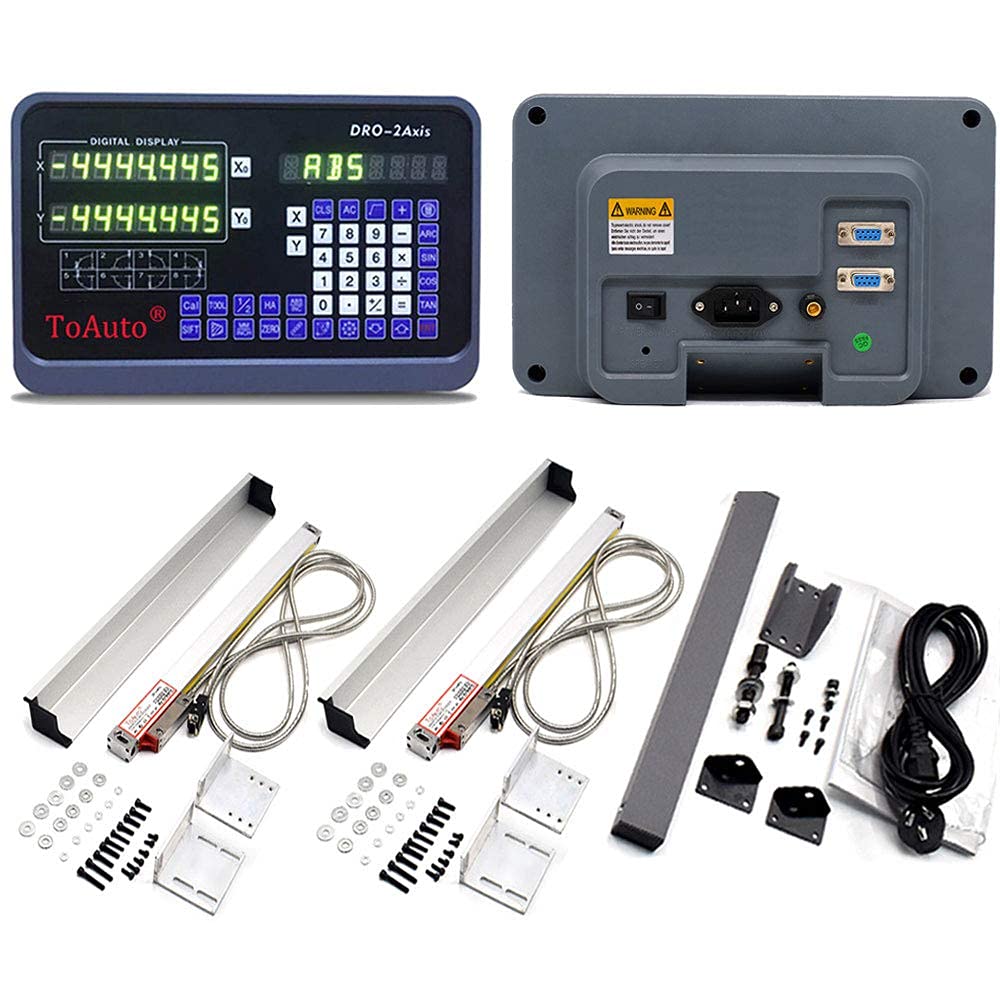

Resolution Adjustable DRO is designed to match multi kinds of linear scale with resolution 0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm or 50µm. The DRO resolution must be set to completely match the linear scale precision. (This kit default is 5um/0.005mm/0.0002" resolution) 9 Pin Connection Readout only allows TTL square wave signal input through 9 pins connector, which completely matches the linear scale encoder . Pin 1 to 4 connects +5V,0V,A,B , and the pin 5-9 are blank. Durable Keyboard Robust casing, high reliability and durability switch design. Full-closed design ensures its clean and dust resistance, safety increased. Having a good capacity of resisting disturbance,durable keyboard,easy to change REPEATABLE POSIIONING Sensor adopts the precision metrology grating as the measurement standard. And the sliding parts have excellent repeatable positioning performance. And black plastic cover to protect the read head during transpotation, just need to remove it after installation . 3 METER SIGNAL CABLE & ACCESSORIES Signal cable uses multilayer shielded wire steel and metal shell to provide extra protection . Deafult offer 3 meters (9.84feet long) cable connecting with linear scale. And full set of installation accessories included to avoid unsccessful installation . WIDELY APPLICATION Widely used for manual machine ,such as milling machine ( for Bridgeport Mill, Knee Mill,Rong Fu 31 mill / drill, Grizzly Mill,etc), drilling machine, grinding machine, lathe, EDM, linear cutting machines etc. DRO Functions : Circumference holes processing Linear holes processing ARC processing Oblique processing Slope processing Chamber processing R function Tool diameter compensation function Digital filter Radius diametr, mm/inch function etc. Package Included : 1pc 2Axis DRO Digital Readout 2pc Linear Scale (upon your choice) 1pc English User Manual 2pc Mounting Cover 3pc L type Mounting Plate 1 full set Installation screws Specifciations : Scale Travel (measuring) length : 50/100/150/200...1000MM (come in 50mm increment) Supply Voltage : AC 80V~260V; 50~60Hz,US Plug Power consumption: 15VA Operating temperature: 0~45°C Storage temperature: -30~70°C Signal Input : TTL square wave Resolution : 5µm (0.005mm/0.0002") Overall Length : Travel Length + 140mm Linear Scale Interface: DB9(RS232) Installation On Lathe Mill Machine 2 Axis Digital Readout DRO 3 Axis Digital Readout DRO Kit 150mm+300mm+600mm 3 Axis Digital Readout DRO Kit 350mm+450mm+950mm 3 Axis Digital Readout DRO Kit 450mm+500mm+1000mm 3 Axis Digital Readout DRO Kit 150mm+300mm+550mm Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 42 4.5 out of 5 stars 182 4.5 out of 5 stars 182 4.5 out of 5 stars 182 4.3 out of 5 stars 85 Price $94.99$94.99 $294.99$294.99 $322.99$322.99 $379.99$379.99 $262.99$262.99 2 Axis Digital Readout DRO ✓ no data no data no data no data 3 Axis Digital Readout DRO Kit no data ✓ ✓ ✓ ✓

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Reviews

*****

Verified Buyer

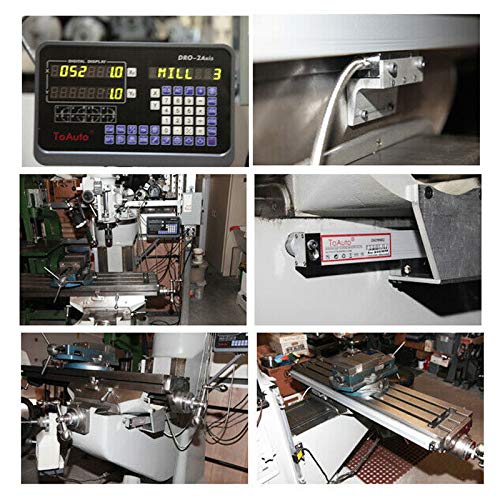

I ordered this DRO after watching many YouTube videos of folks that have bought the same or similar. It works exactly as it says it will, as backed up by indicators and micrometers in my shop. There is a process to dial in error. In my case, there wasn't any worth messing with. If you want it balls on to the tenth ... you can make those calibration adjustments.For the new machine hobbyist like me - beware, this is not for the faint of heart. It is not hard, but very meticulous and time consuming using tools far less accurate that what you've become accustomed to (In many cases I hand drilled holes in the lathe body). From the videos I watched, I fully expected this level of effort. I had to fabricate some brackets, drill and tap many holes on my lathe, machine some standoffs, etc. If you've had a small lathe or mill for a while, this isn't a big deal. It took me 4 evenings after work to get it done. The good news is that the scales were designed for this expected less than accurate drilling. They are slotted and allow you to adjust finely running an indicator along the scale until it runs parallel.Hope this helps!
