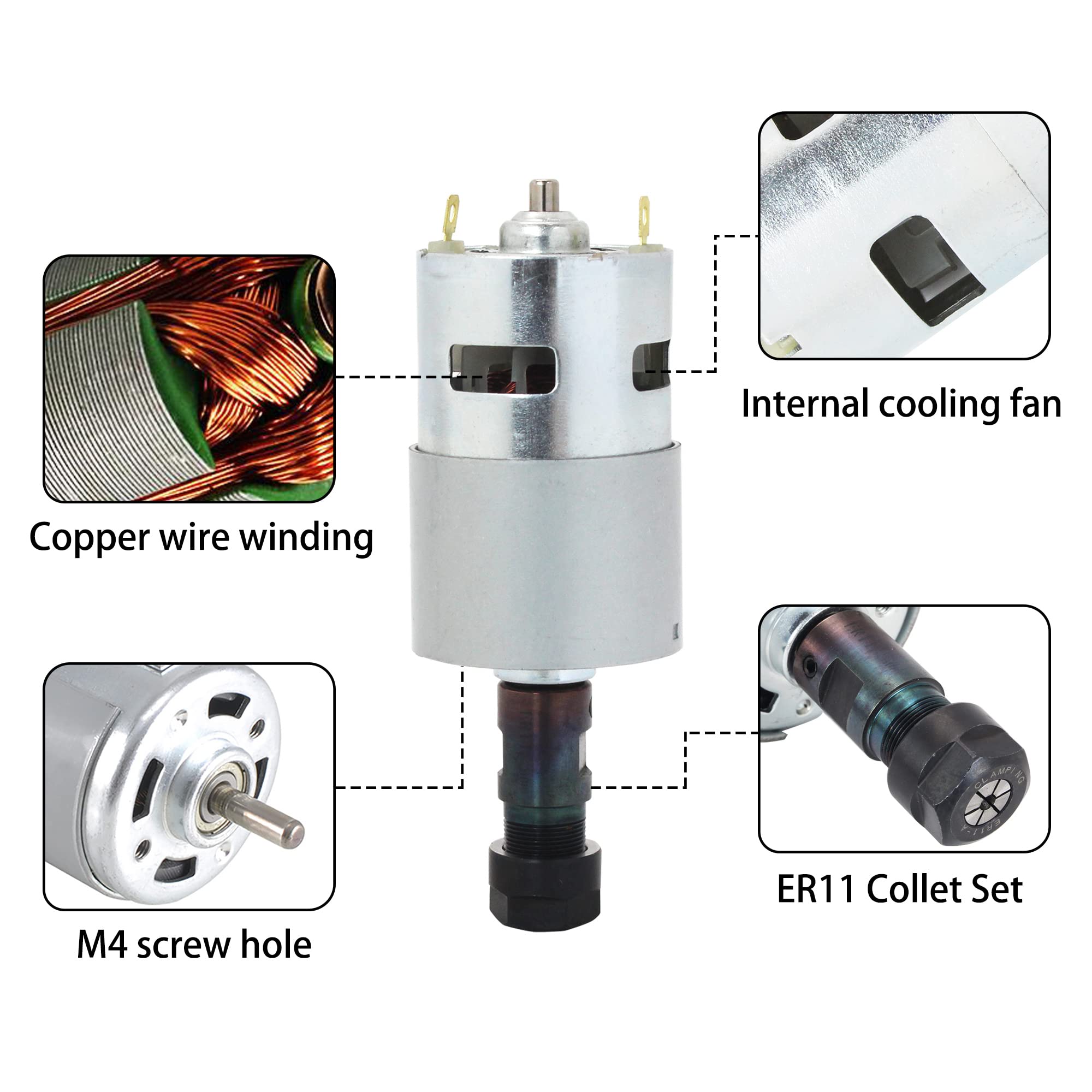

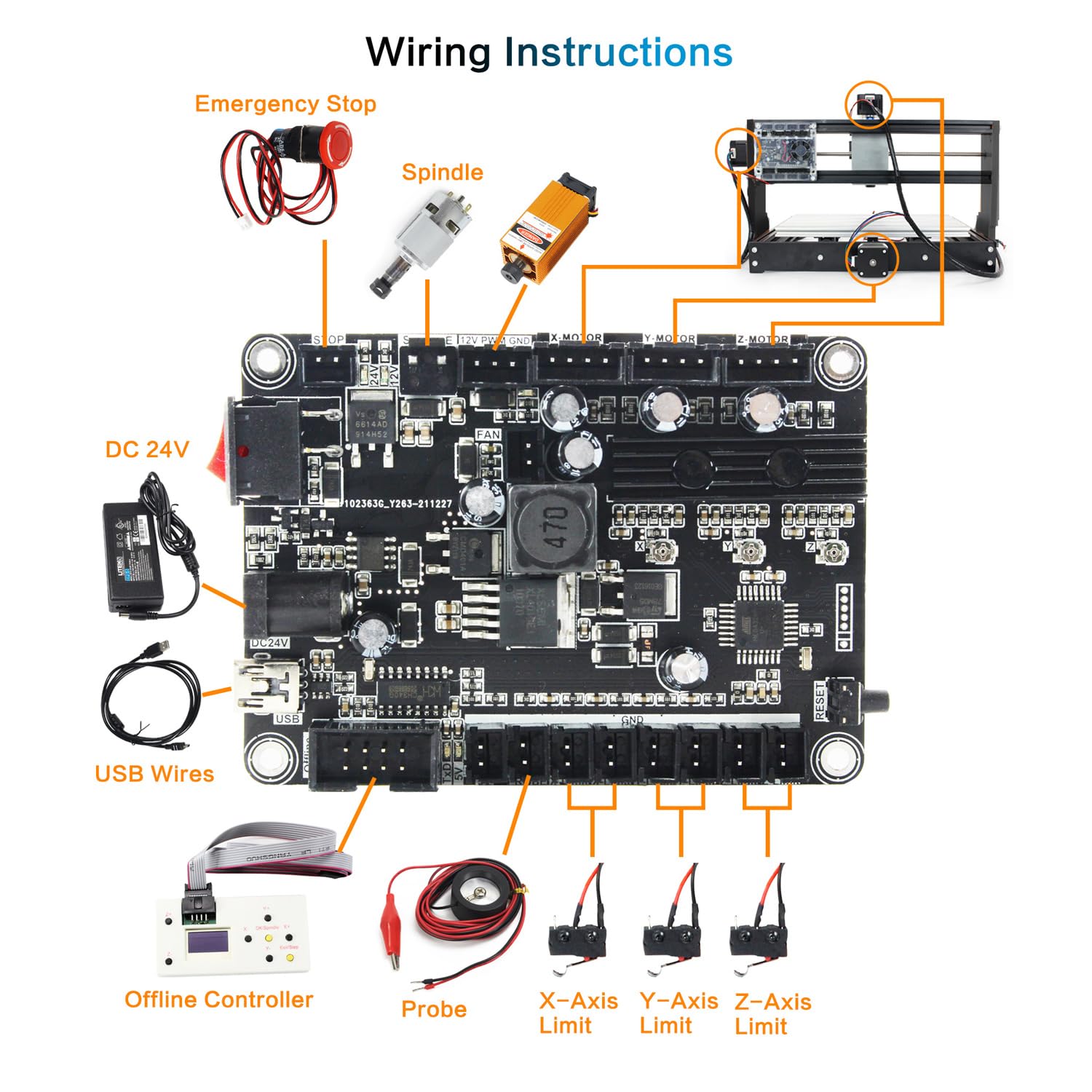

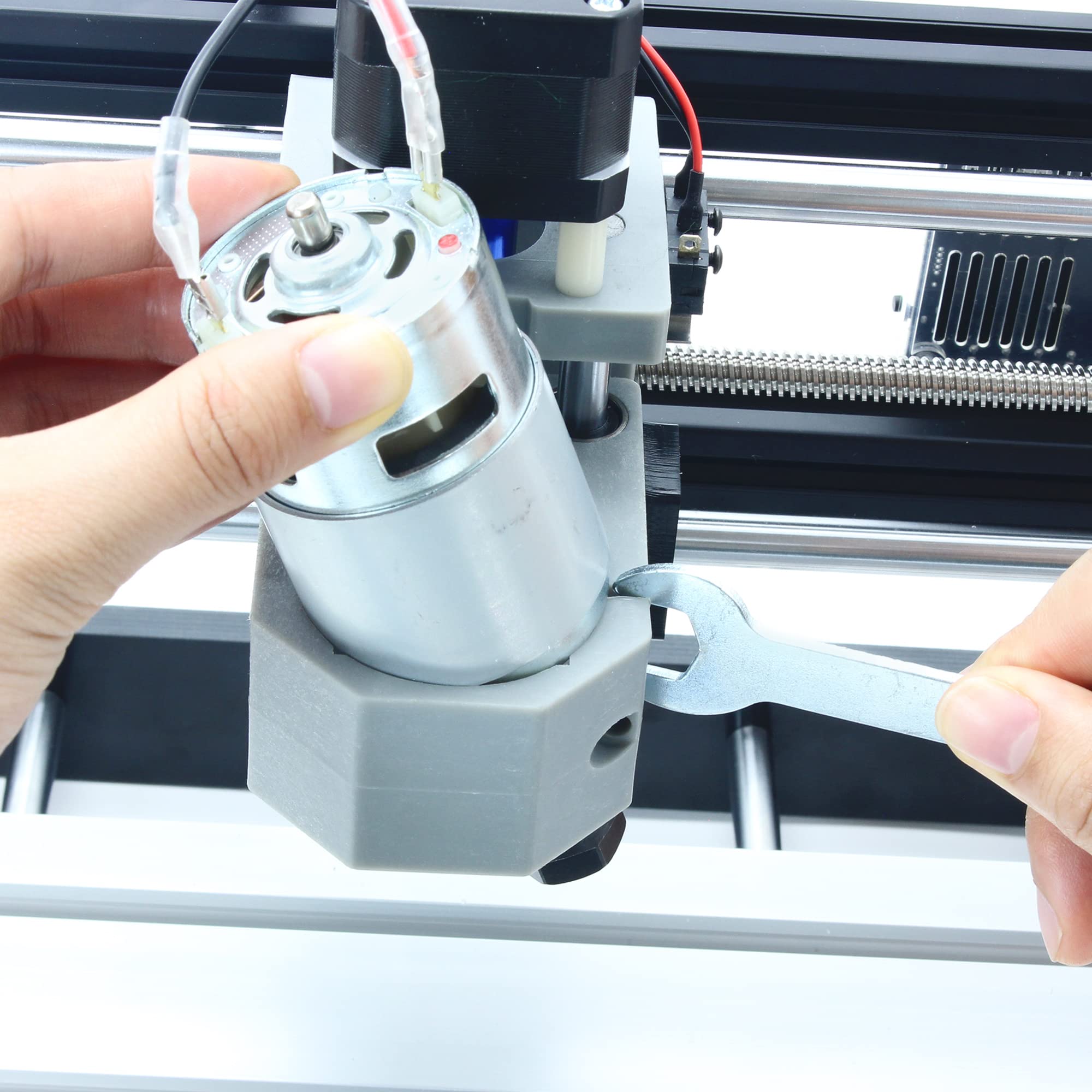

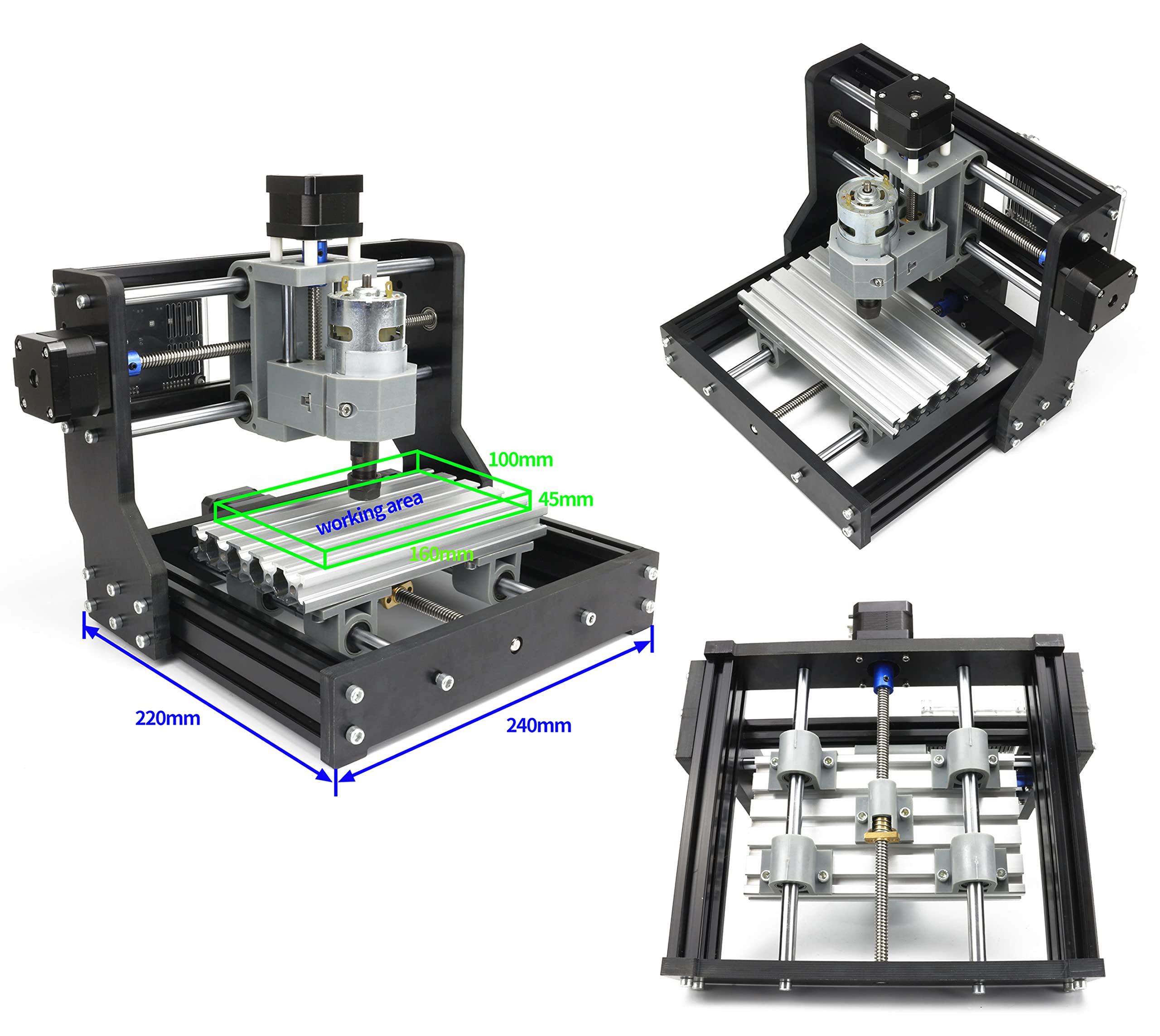

CNC ROUTER MACHINE 1 x DIY MINI CNC Router Machine Kit1 x Power Supply10 x Tip 0.1 mm, 20° 3.175 mm Drill Bits1 x English Manual1 x 4GB USB Flash Drive1 set Allen Wrench1 x Offline Controller Connection: PC-USB connectionSoftware: GRBL controllerSupporting file:G-code (.nc/.txt/.tape/.gcode) Specification Frame size :300x260x250mm(approximately 11.81x10.23x9.84 inches) Working area: 180x100x45mm (approx.7.08x3.93x1.77 inches) Material: PA6 Nylon + Aluminum profile Power supply : 24V 5.6A power adapter (input voltage 110-240V) 775 Spindle motor: 12-24VDC 10000RPM Collet: ER11 3.175mm (Can be equipped with 0-7mm) Stepper motor: Nema17 stepper motor 1.3A, 0.25N.m Processing accuracy: About 0.2mm About Machine Installation: Although this mini engraving machine is shipped in bulk, it is simple and easy to install. The package is equipped with an English installation and operation manual, so users do not have to worry about not installing the machine.In addition, it should be noted that this is only a mini machine suitable for novices or DIY enthusiasts, and cannot be compared with professional industrial machines 775 Spindle Motor & Drill Bits Front and rear double ball bearings, universal DC 12V-24V voltage.Shaft diameter: 15mm; Motor diameter (without magnetic sleeve): 42mmMounting hole diameter: M4 screw hole; Mounting hole pitch: about 29mm. Power: 100WSpeed: 10000RPMCollet: ER11large torque, low friction and stable operation.Double ball bearings have low noise. With 10pcs 3.175mm Drill bits: Tool holder diameter: 3.175mm/0.125inMaterial: Tungsten steelBlade length: 15mm/0.59inTotal length: 38mm/1.5inTip: 0.1mm/0.004inm Angle: 20° Supported engraving materials: Wood, plastic, acrylic, pvc, pcb, carbon fiber, density board, plastic phone cases, rubber stamps, copper , aluminum and other soft materials. It should be noted that materials such as jewelry, jade, stainless steel, stone, ceramics and other similar materials are not supported. About GRBL System Q-1: What should I do if the driver and software cannot be installed successfully?A-1: First install Win7/ win10 under the support system, the re-install or exit th anti-viirus software and re-install. ( We cannot guarantte 100% support for win10. If the user cannot install the driver on the win10 system, please contacte uss to solve it. ) Software: Grblcontrol Format flies that support Grblcontrol engraving: Support G-code files of nc, ncc, tap, txt Format flies that support 2-axis engraving: Support nc, ncc, tap, G-code, ngc, png, jpg, gif, svg GRBL1.1 CONTROLLER BOARD Updated Version New fuction : Add emergency stop port and X/Y/X axis limit switch portAdd the power switch button, simple operation, more safety in the process of using the machine.Enhanced spindle drive, can support up to 20,000 rpm spindle motor.Add the outer casing, not only protect control board in transit, to avoid short circuit problem during use.Cancel the drive module,use integrated imported stepper motor drive,with short circuit protection,and integrated heat dissipation aluminum alloy. Improved USB interface: The original USB interface is patch soldering, transport collision and improper use, easy to drop, now changed to plug-in, very strong. The spindle drive increases the optocoupler isolation, which makes the control board generate less heat, and the spindle speed adjustment is more linear and safer. Add offline controller recognition,can insert offline modules and computers at the same time. Offline controller will automatically identify if there is computer control. Add the low noise fan port to force heat dissipation.
