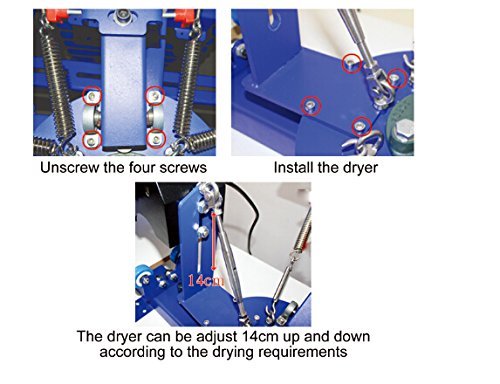

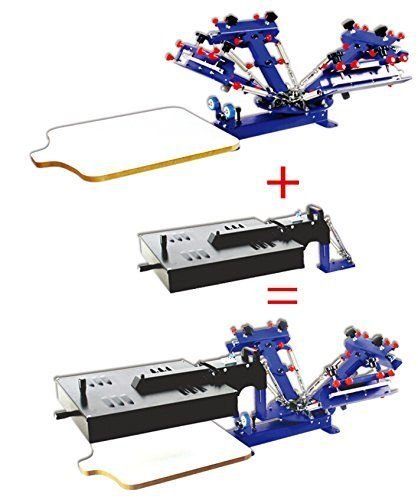

Description: This flash dryer was a supporting universal device for the single rotary,double rotary screen press produced by our company.it was compatible with all the multi color screen press produced by our company since 2016.just take domn one set of the screen frame arm on the press,then you can add this dryer on the press to work.after installation,the original 4 color over printing will turn to 3 color;6 color screen press will turn to 5 color.if you do not need to dry,just restore the screen frame arm back to it's position. After add the dryer on the multi color screen press,when print one color,turn the dryer to the workstation,flash dryer a few seconds,when the substrate surface was dried,and do not stick to the screen,turn away the dryer and printing next door...it will reduce the drying time,improve work efficiency,lower work intensity. Operations 1.After well installed,connect the power supply 2.Turn on the switch and the it will work automatically 3.Put the probe of the thermometer on the dtying table,heat for some time(20 minutes in reference)and then check the actual temp.if the temp is too low or too high,just risen or lower the height of the drying box. Reference Data Based on our text,in the condition of 24degree room temperature and no air flowing around the dryer,when the flash dryer has been working for about 30 minutes,the max temp of 0.79''(2cm) below the drying box can reach about 190 degree Adopts stainless steel heater Power:1600W Baking area reaches 16"x16" (40x40cm). Dryer size : 49*45*8cm（19*18*3inch） Parameter: Input voltage：110V Package Dimensions:78*48*18cm G.W.:31LB(14KG) Items included 1 set of 1600W General Flash Dryer for All Screen Printing Press (006298)
