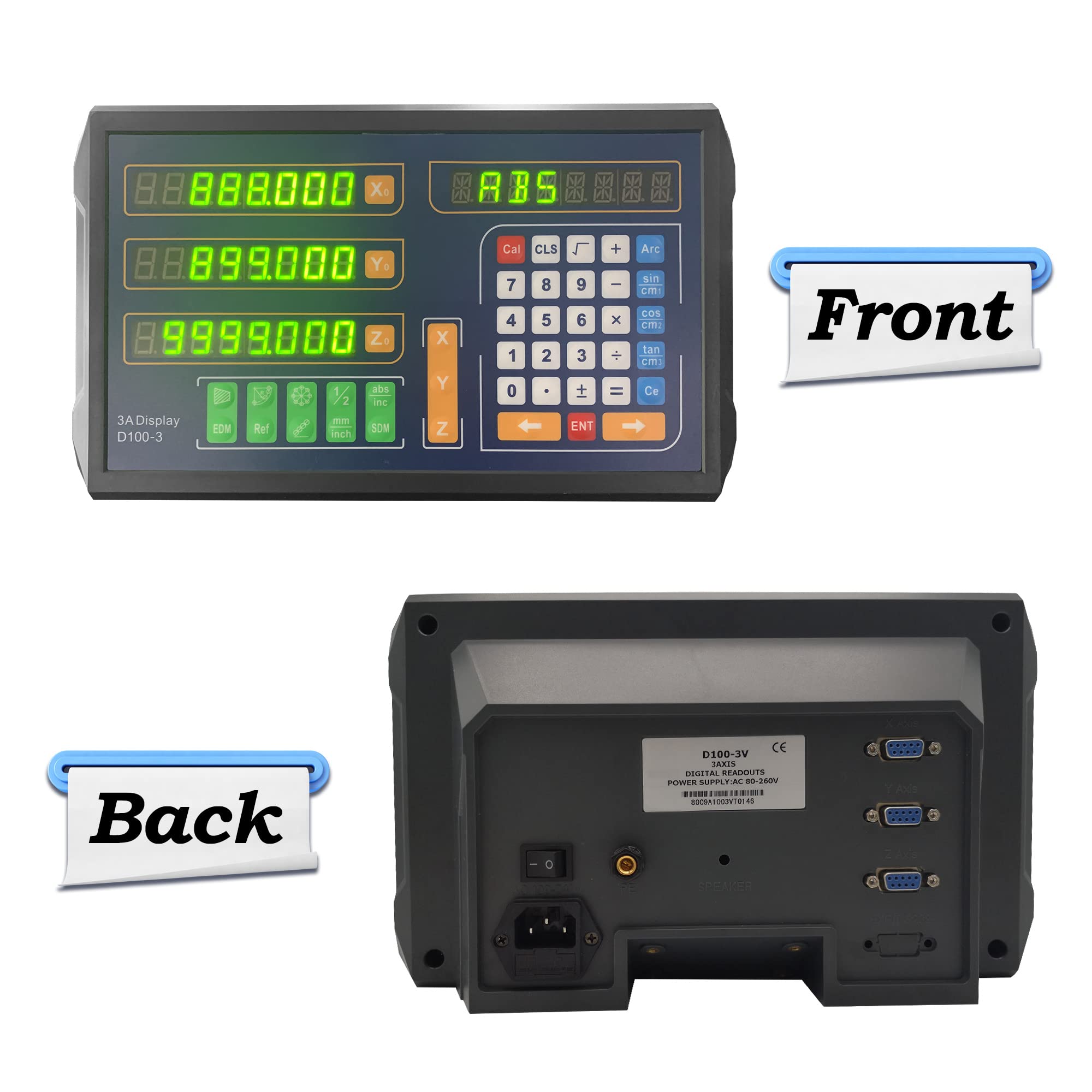

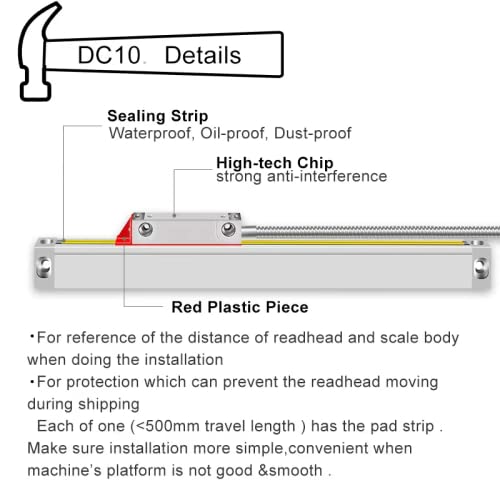

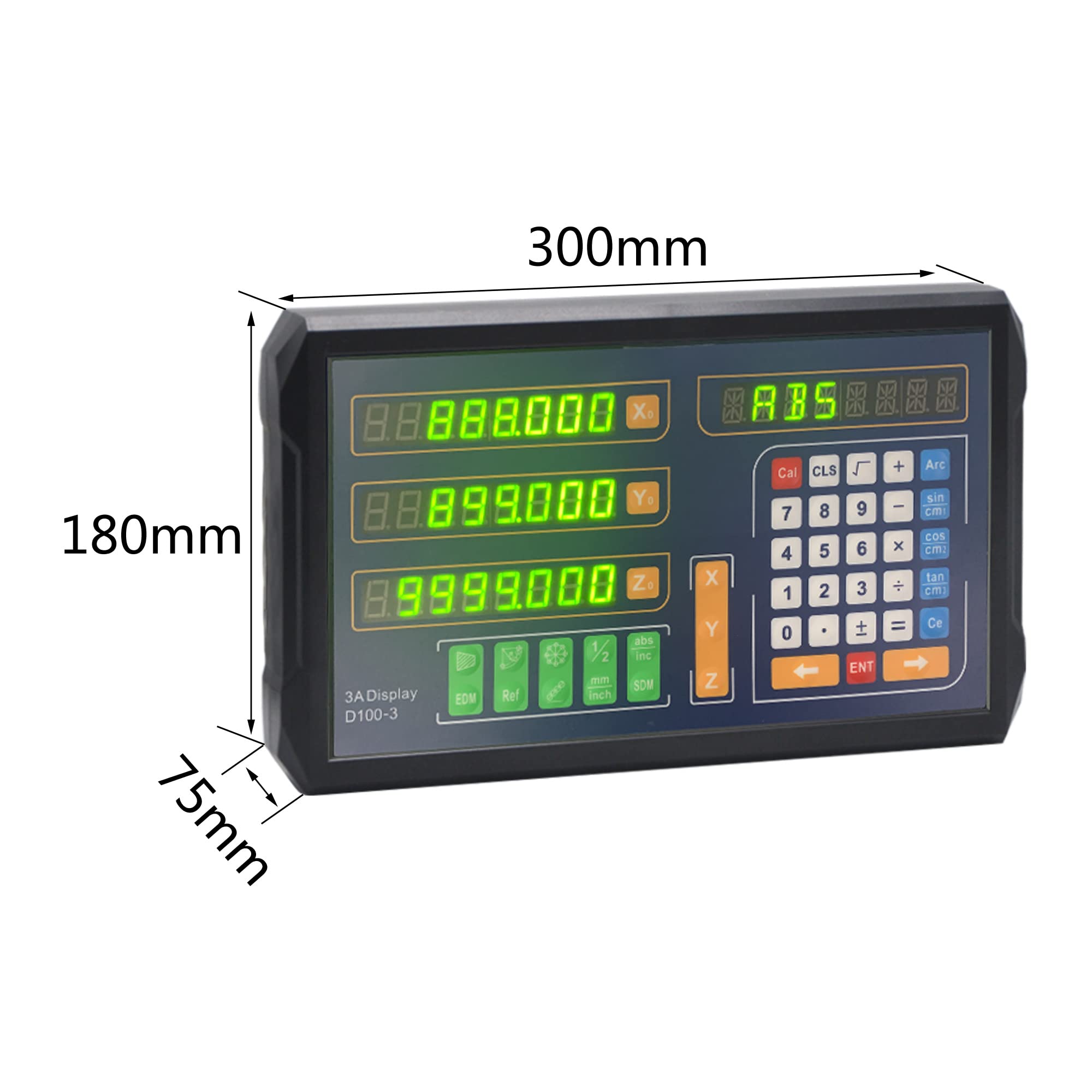

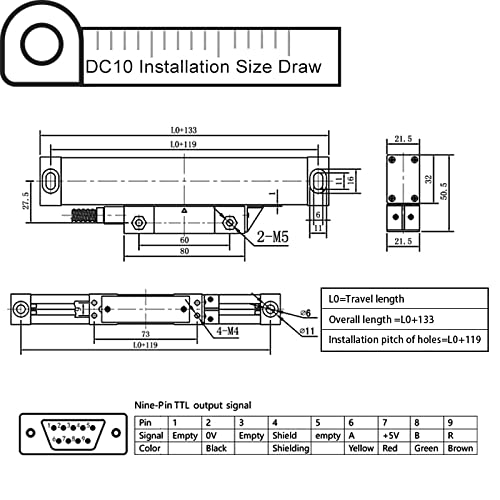

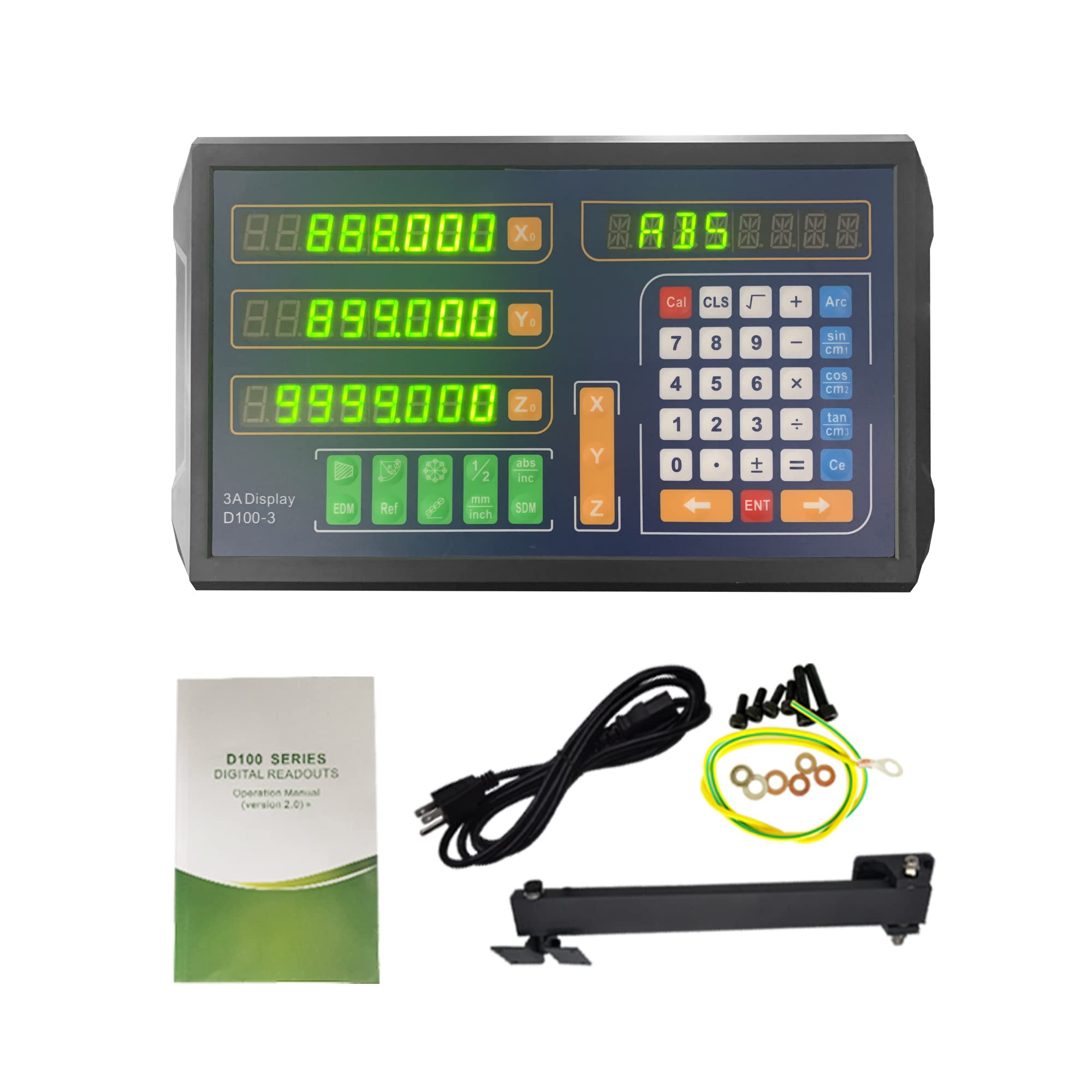

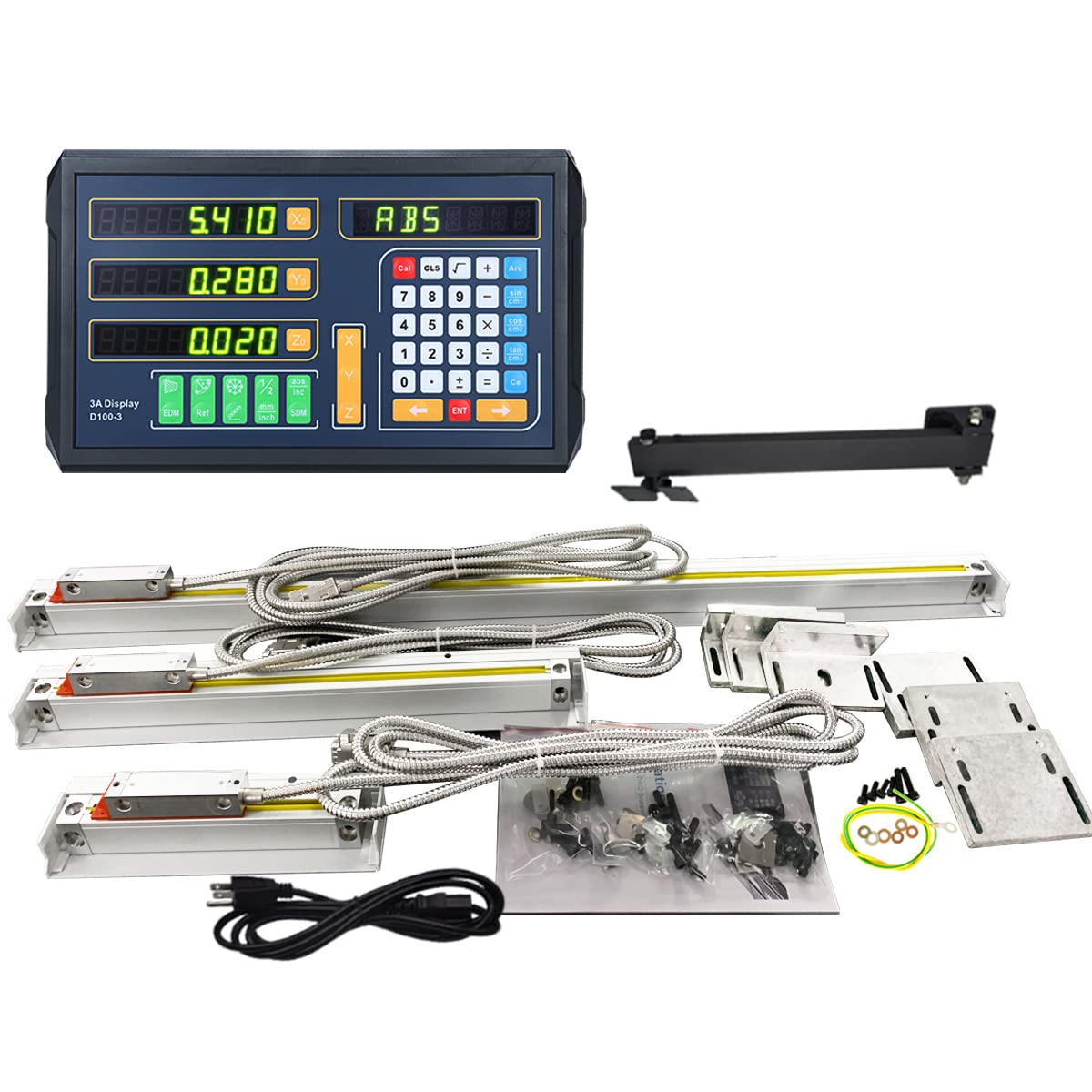

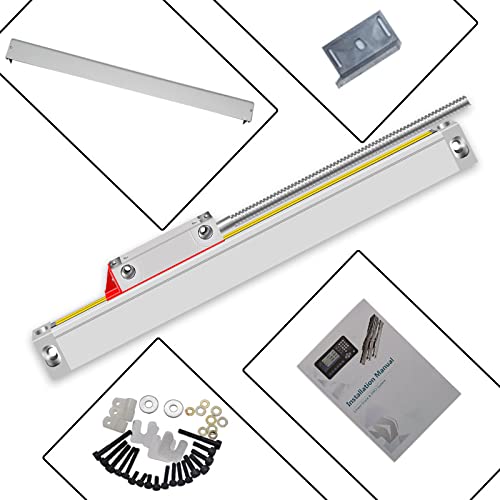

D100 Digital Readout Package Included : 1pc 3Axis DRO Digital Readout 3pc Linear Scale (upon your choice) 1pcs USA plug 1pcs DRO bracket 3pc Dust Cover & Screws Special function Bevel punching function ,1/2 functionDivided holes on Circumeference function -PCDArc machining functionCalculator functionPower off memory Supply Voltage : AC 80V~260V; 50~60Hz,US PlugPower consumption: 15VAOperating temperature: 0~45°CStorage temperature: -30~70°CSignal Input : TTL square wave Basic function ZeroingMM/INCH SwitchingDimension inputABS/INC conversionSleep mode200 Set SDMLinear Scale conpensation D100 Baykunl D100-2V model can be widely used on the milling .Lathe machine, grinding machine. The windows at the left side display machine type. D100-3M,Applies to 3axis milling machine machine, D100-3L applies to 3 axis Lathe ,D100-3G applies to 3 axis grinding machine. Linear Scale Advantage 1 ; Linear encoder 5µm used in conjunction with the digital readout is designed for manual machine tools or other equipment having linear movements, for example lathe, milling machines and cnc equipment. 2 : Alternatively the encoder output can be used for automatic positioning control of machine tools or similar equipment via CNC or PLC unit .(Customized ) 3 :The encoders may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement. Linear Scale Parameter Measuring Range 0-1020mm Resolution 5um Output Signal TTL Cross Section 20.5*31MM Accuracy +-3um/meter . +-5um/meter Max moving Speed 60m/min Stronger anti-interference ability 90°NSK brand five bearing sliding structure.Silky smooth movement throughout.Signal cable uses multilayer shielded wire steel and metal shell protection. Effortless To Install The parts provide the accurate distance (1.2mm) between the sensor and scale body when operator install it.RPP should be removed after installation is finished. Vertical 5 bearing Sliding system 1: The scale body adopt aviation grade aluminum,effectively avoid any scale bending.and the sensor uses zinc alloy die casting with chrome plating, corrosion resistance
