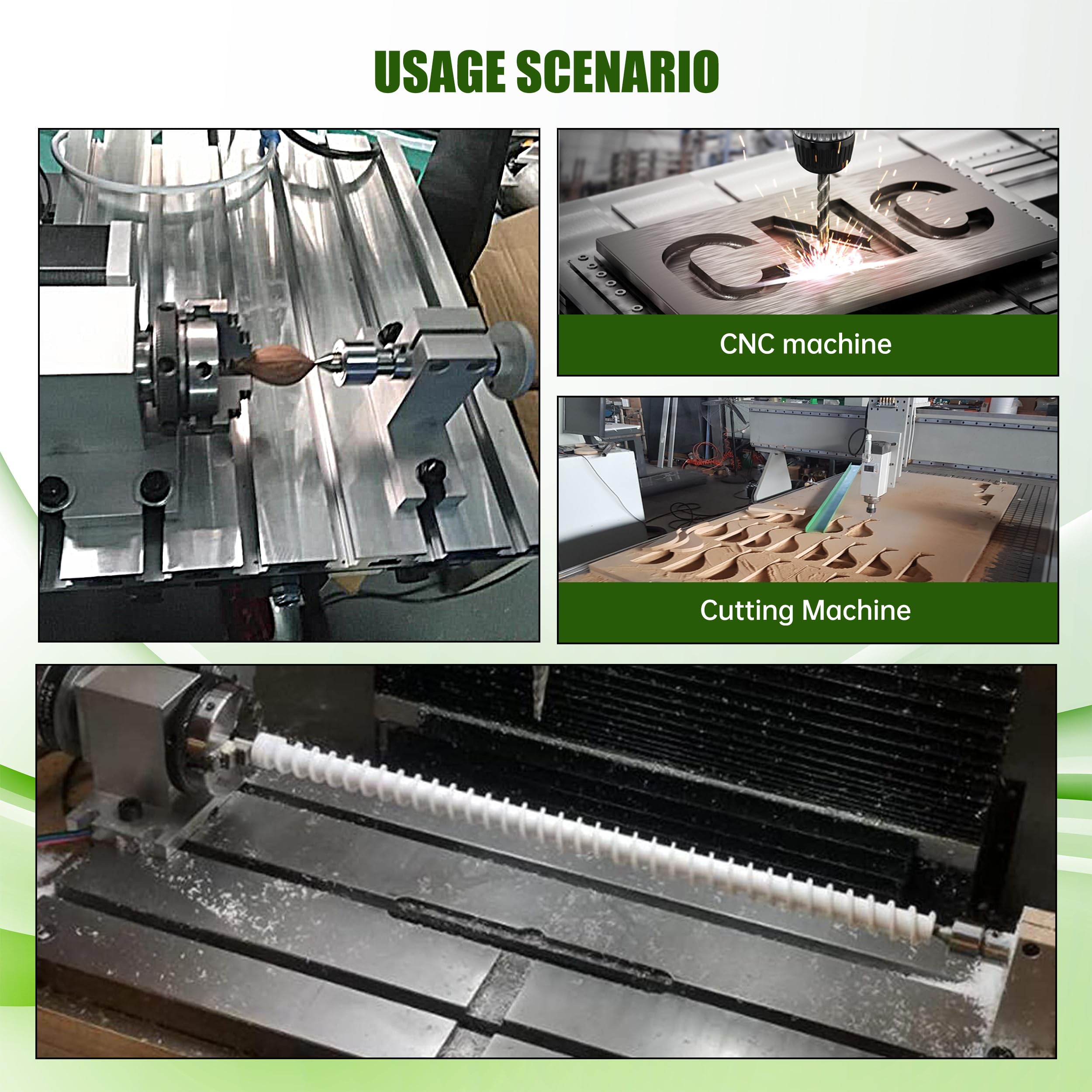

4th Axis CNC Rotary Table with 65mm 3-Jaw Chuck & Nema17 Stepper Motor - 4:1 Reducing Ratio for CNC Milling, Engraving & Woodworking - Includes 54mm Tailstock for Precision Machining (Perfect for DIY Projects, Metalworking & CNC Router Upgrades)

$88

$160

Safe 45%

4th Axis CNC Rotary Table with 65mm 3-Jaw Chuck & Nema17 Stepper Motor - 4:1 Reducing Ratio for CNC Milling, Engraving & Woodworking - Includes 54mm Tailstock for Precision Machining (Perfect for DIY Projects, Metalworking & CNC Router Upgrades)

$88

$160

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

14 people viewing this product right now!

SKU: 76825289

Guranteed safe checkout

Description

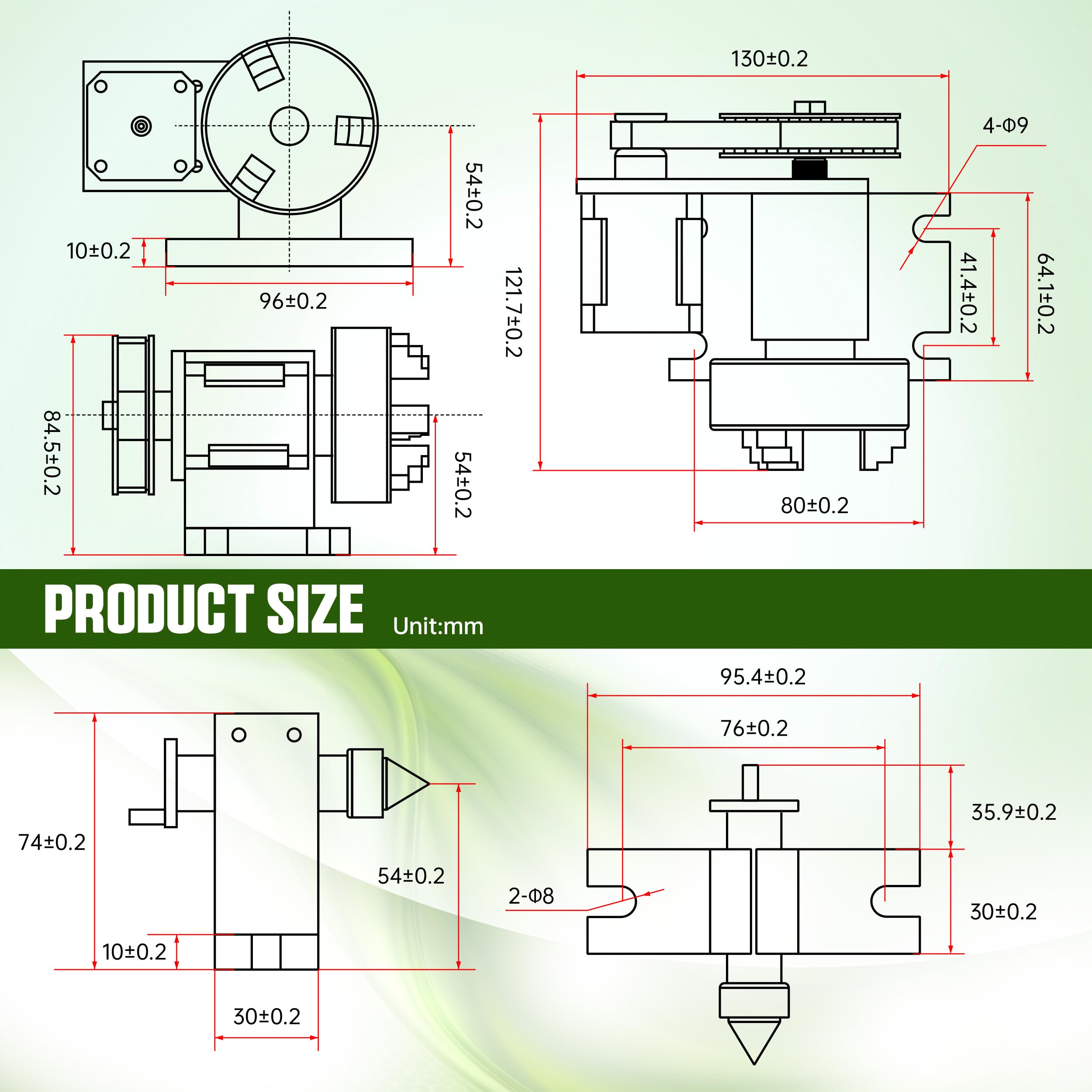

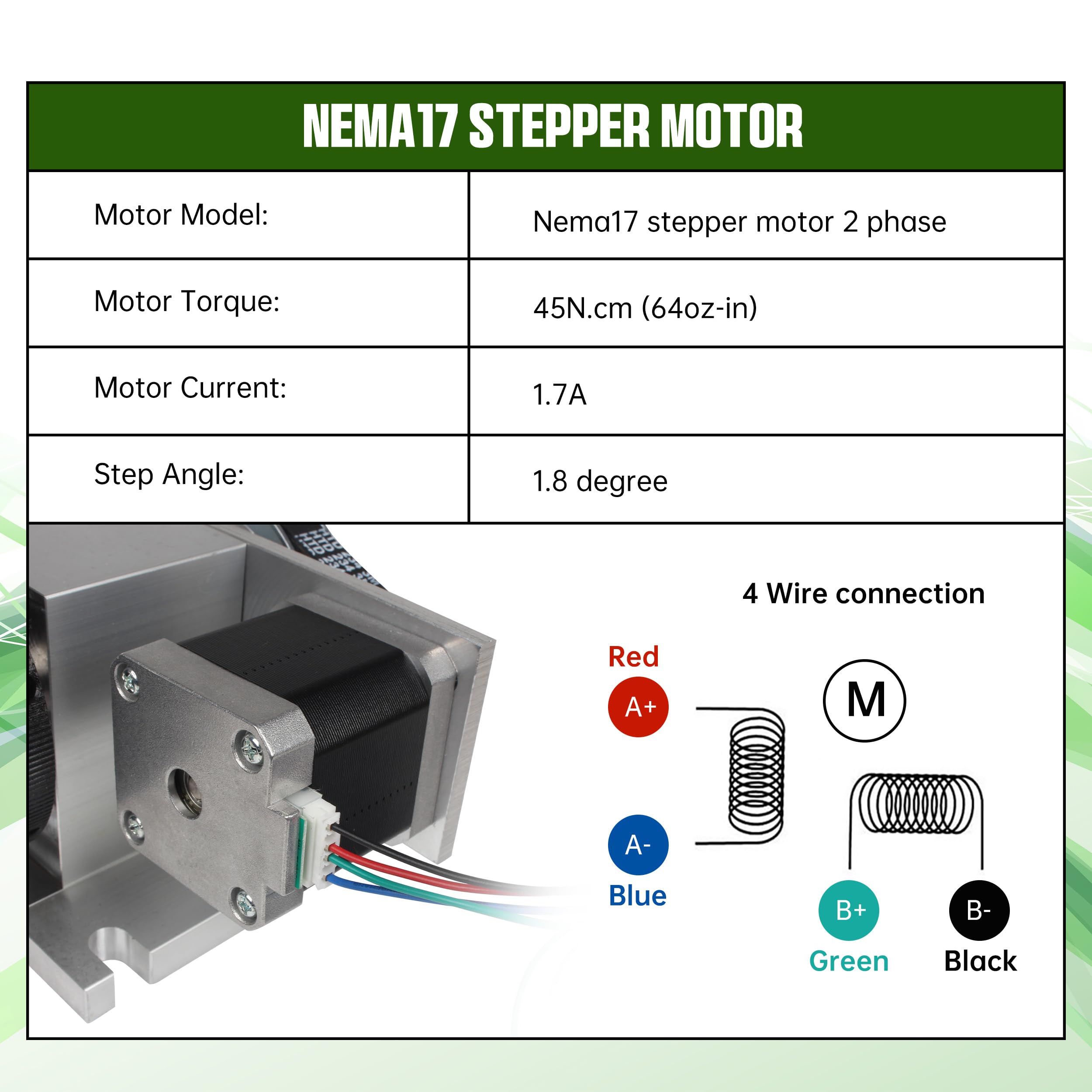

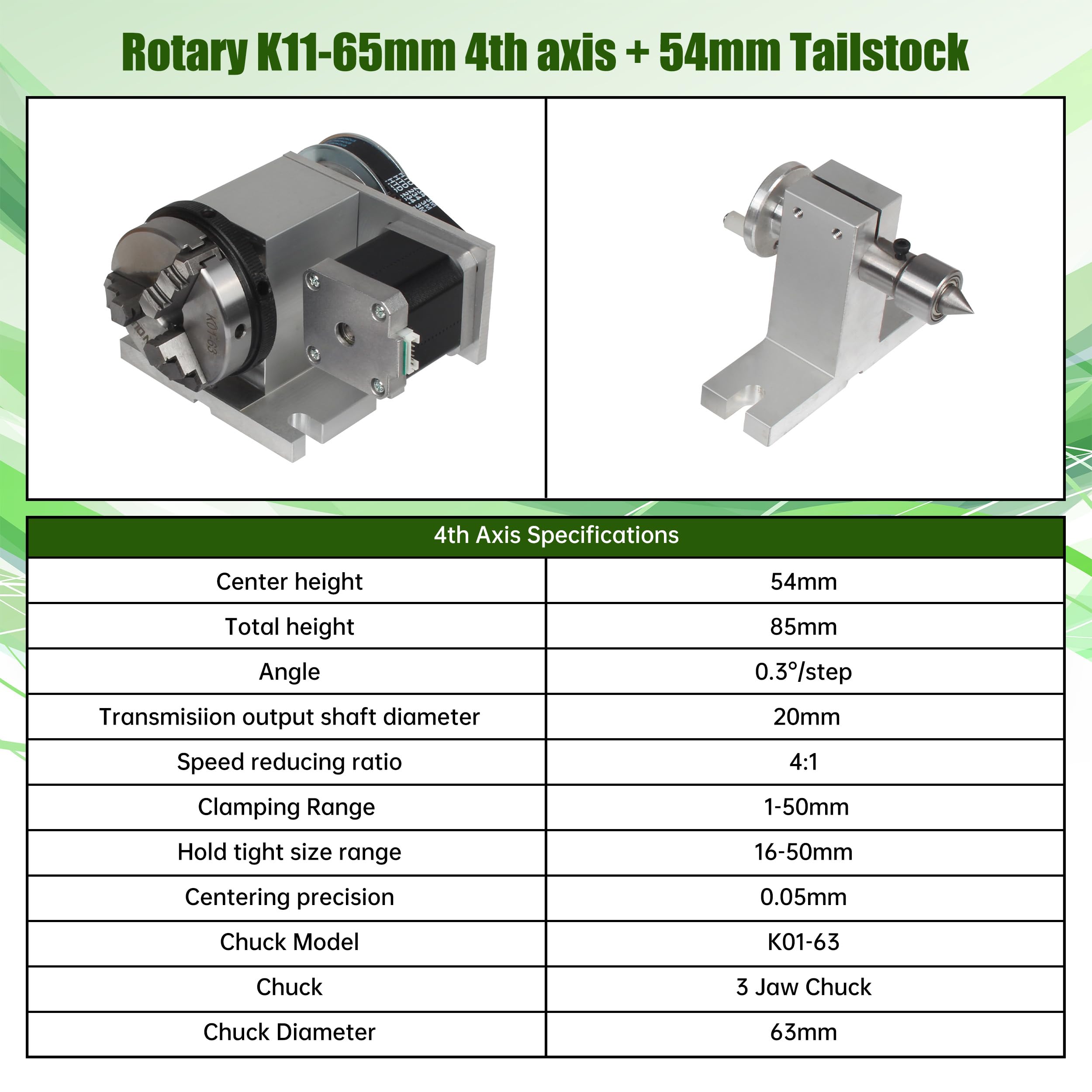

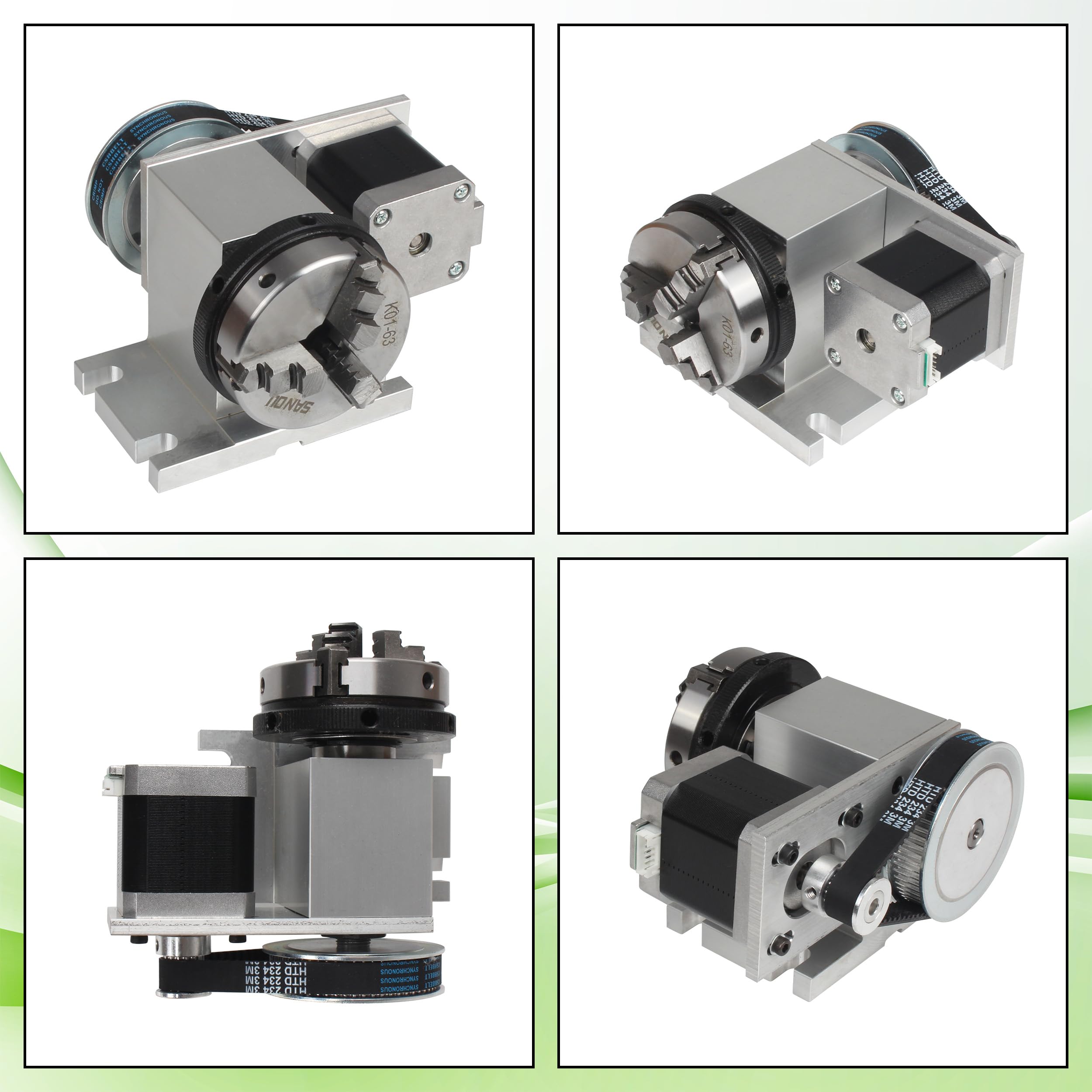

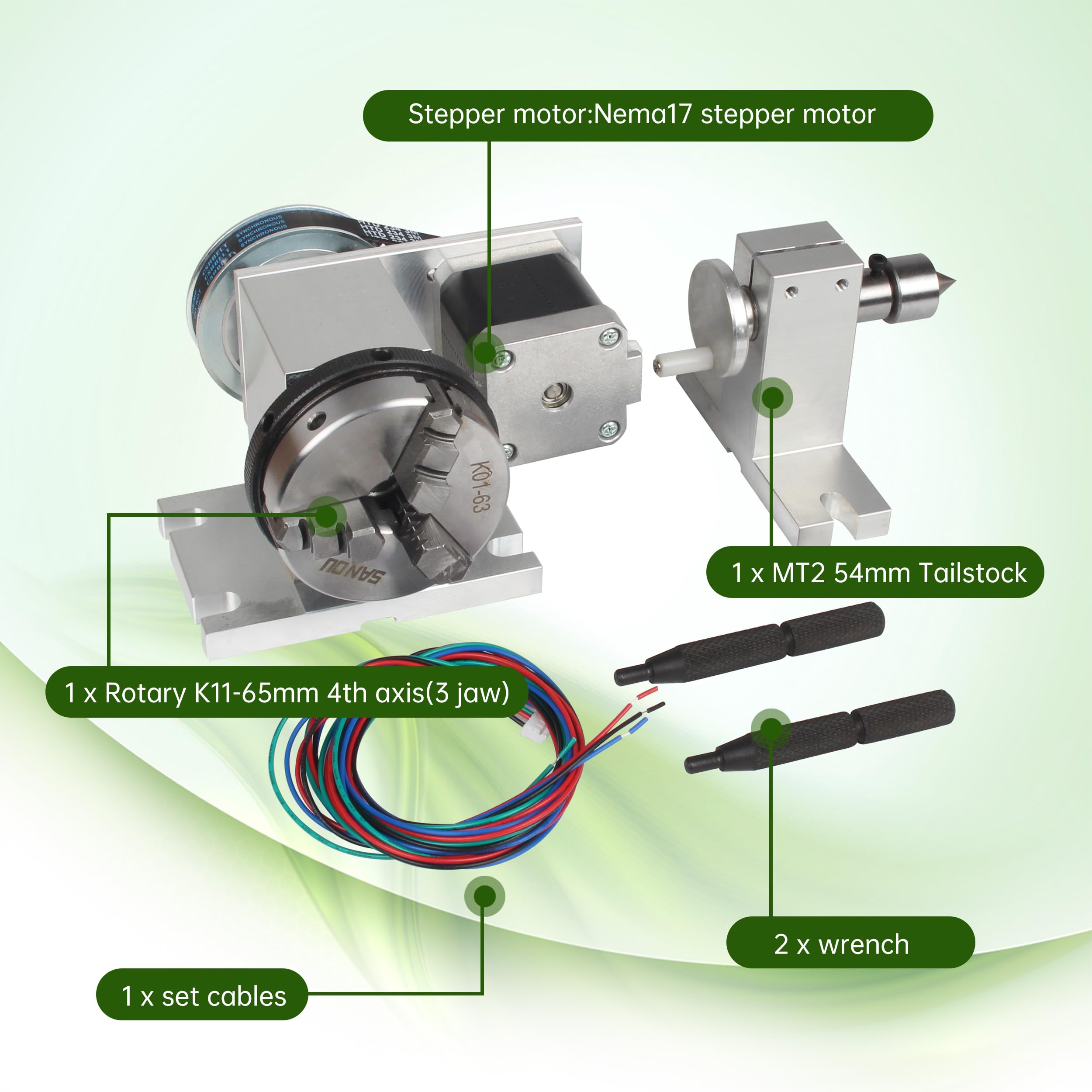

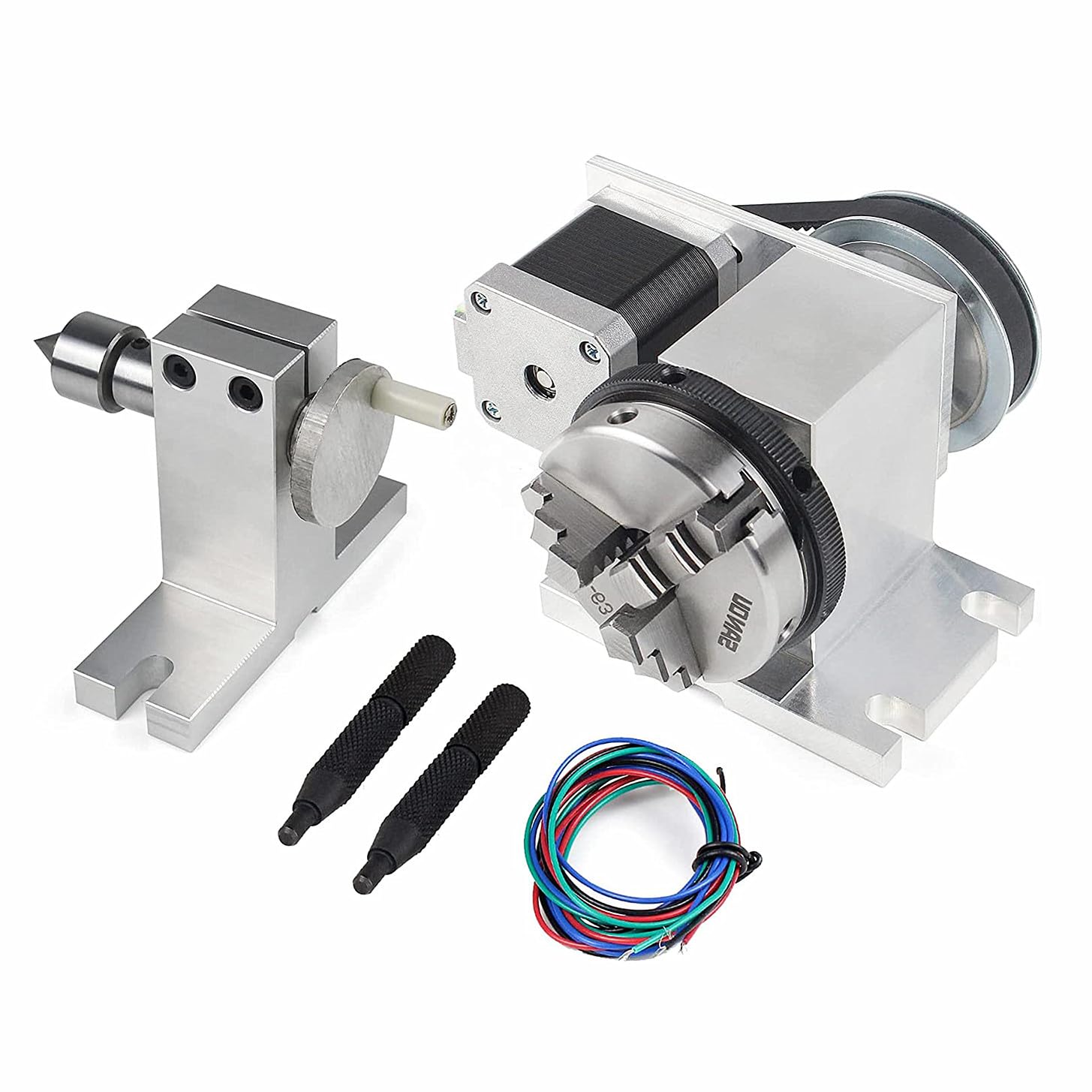

Package included: 1 x Rotary K11-65mm 4th axis (with 3 jaw chuck & Nema17 stepper motor) Reducing ratio 4:11 x 54mm Tailstock2 x wrench1set cables K11-65mm 4th axis Center height: 54mmTotal height: 85mmAngle: 0.3°/stepTransmisiion output shaft diameter: 20mmSpeed reducing ratio: 4:1Clamping Range : 1-50mmHold tight size range:16-50mmCentering precision: 0.05mmChuck Model: K01-63Chuck:3 Jaw ChuckChuck Diameter: 63mm 3 Jaw 63mm Chuck Chuck Diameter: 63mmInternal jaw clamping: 1-50mmExternal jaw clamping: 16-50mmCentering precision: 0.05mm Motor Model: Nema17 stepper motor 2 phaseMotor Torque: 45N.cm (64oz-in)Motor Current: 1.7AStep Angle: 1.8 degree Wiring's Motor's Red wire connect to driver's A+ Motor's Blue wire connect to driver's A- Motor's Green wire connect to driver's B+ Motor's Black wire connect to driver's B- Tailstock: Center height: 54mmTop tip: activity typeTelescopic stroke: 30mmAxial lock key for riding stock

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Reviews

*****

Verified Buyer

Every once in a while China really outdoes themselves. This is one of those times.This thing is simple, clean and accurate. Now, honestly, there isn't too much to these, but this little package for $250 is a great deal.I found a random $20 controller to go with this and it works great. Spins plenty fast, even with the 6:1 reduction.Mating it to my Tormach took some work, but in the end, operates perfectly. Tormach is not expecting a 4th axis with a 6:1 reduction ratio, so none of the micropulse pin settings on the stepper driver generate a proper 360 degree turn when commanding a 360 degree move.You have to go into an .inc file on the controller and change the 4th axis SCALE. Then, if you want it to turn faster, you have to change some speeds, also in the .ini files. It's all on the LinuxCNC forum. But very easy to do and saves $3000 versus a MicroARC.Highly recommended.
