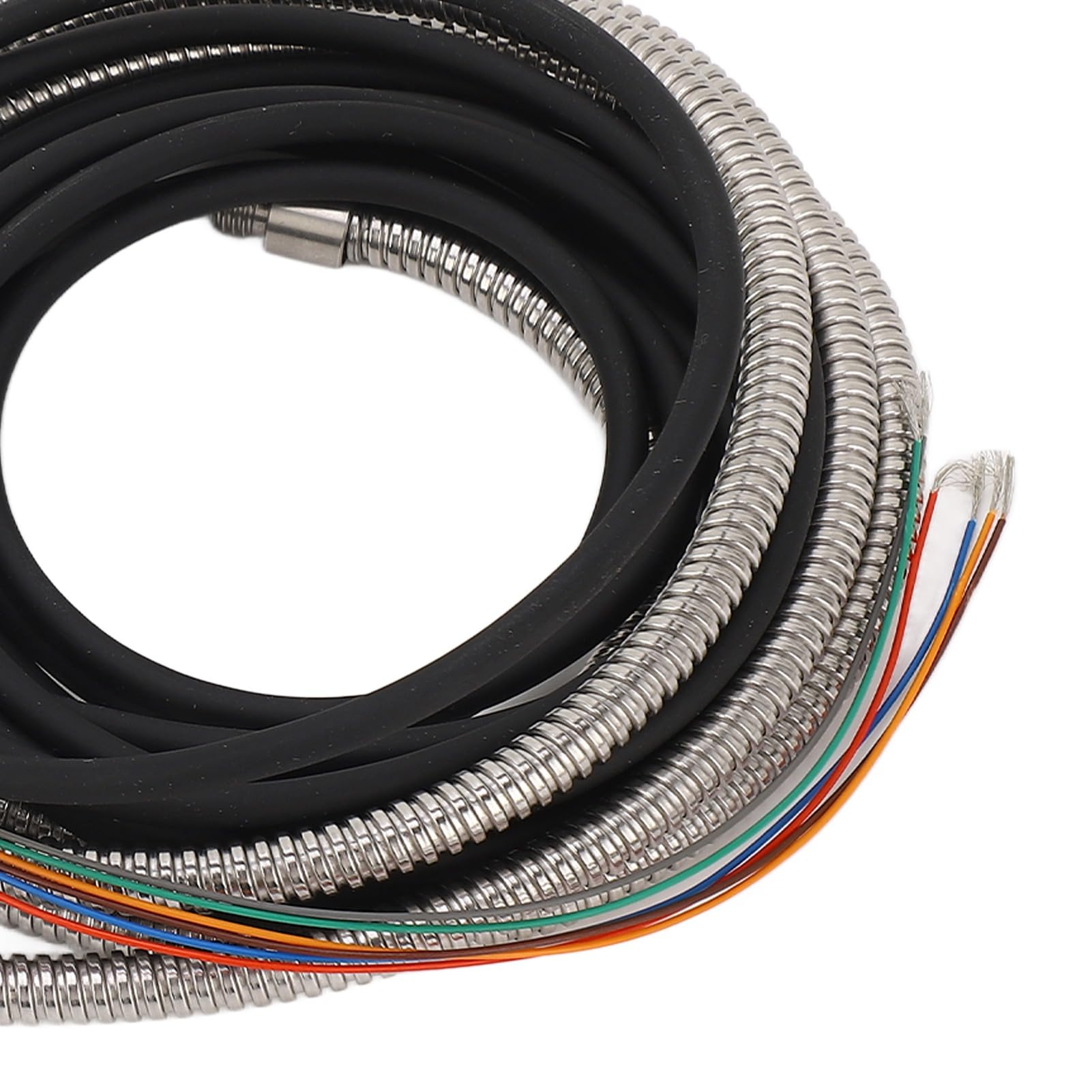

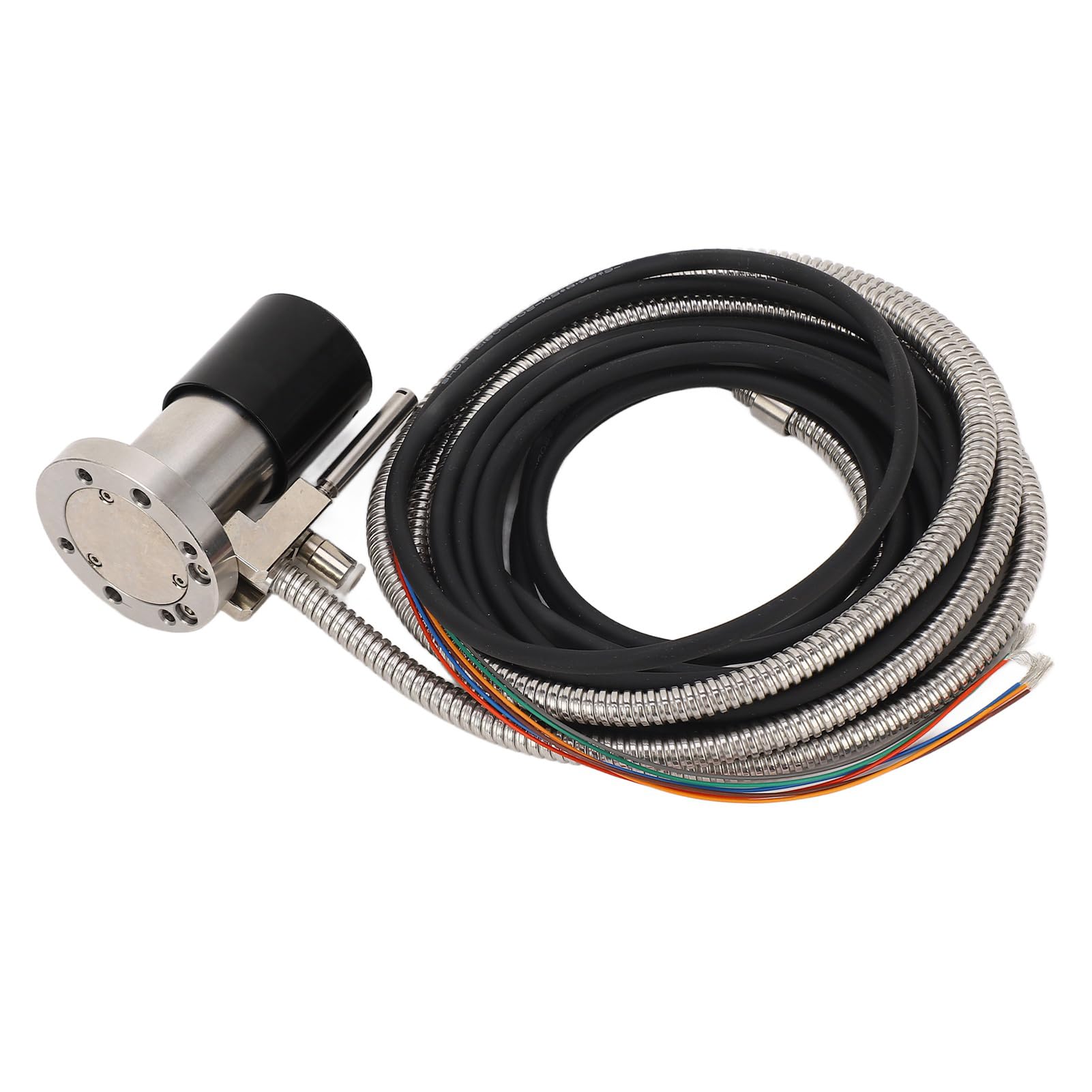

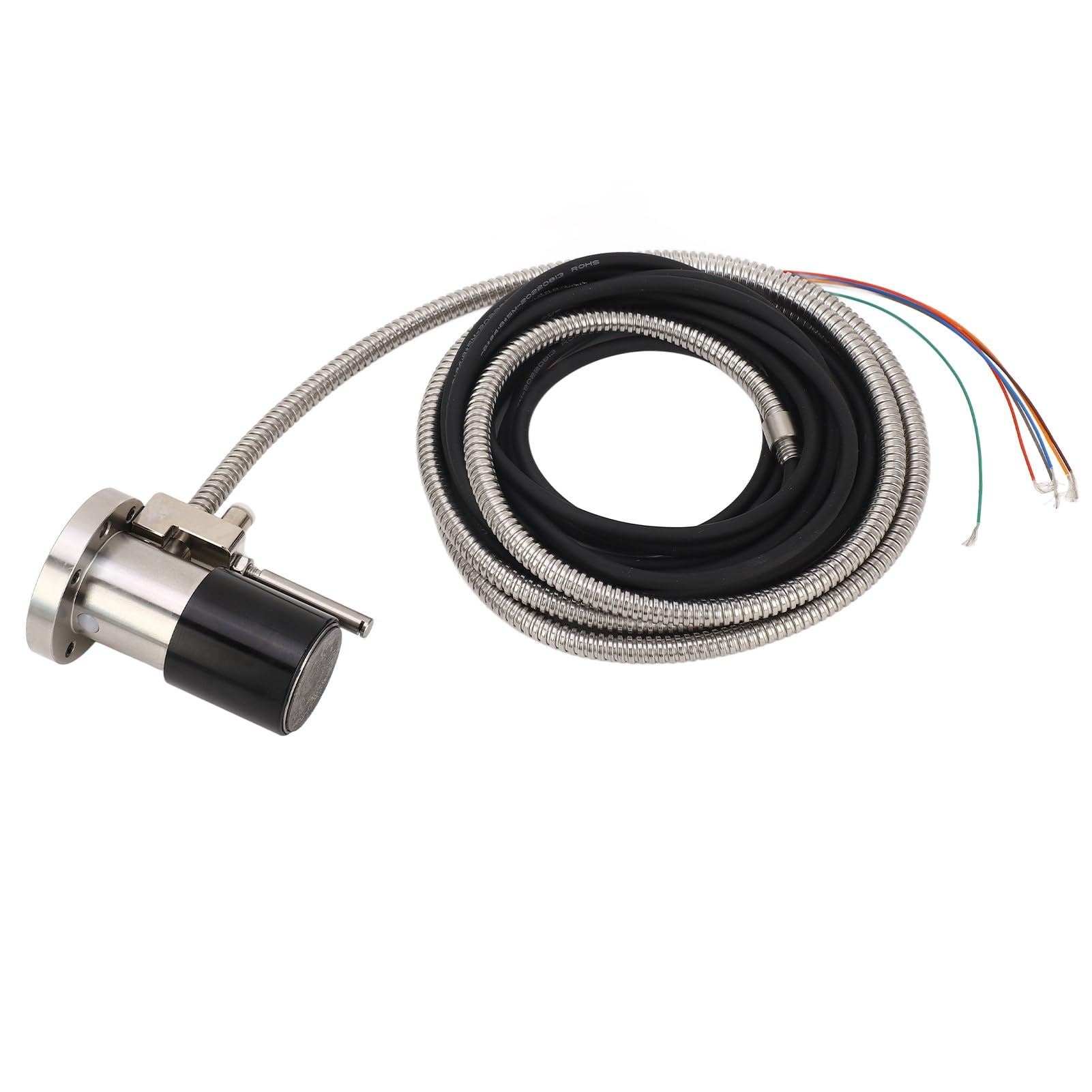

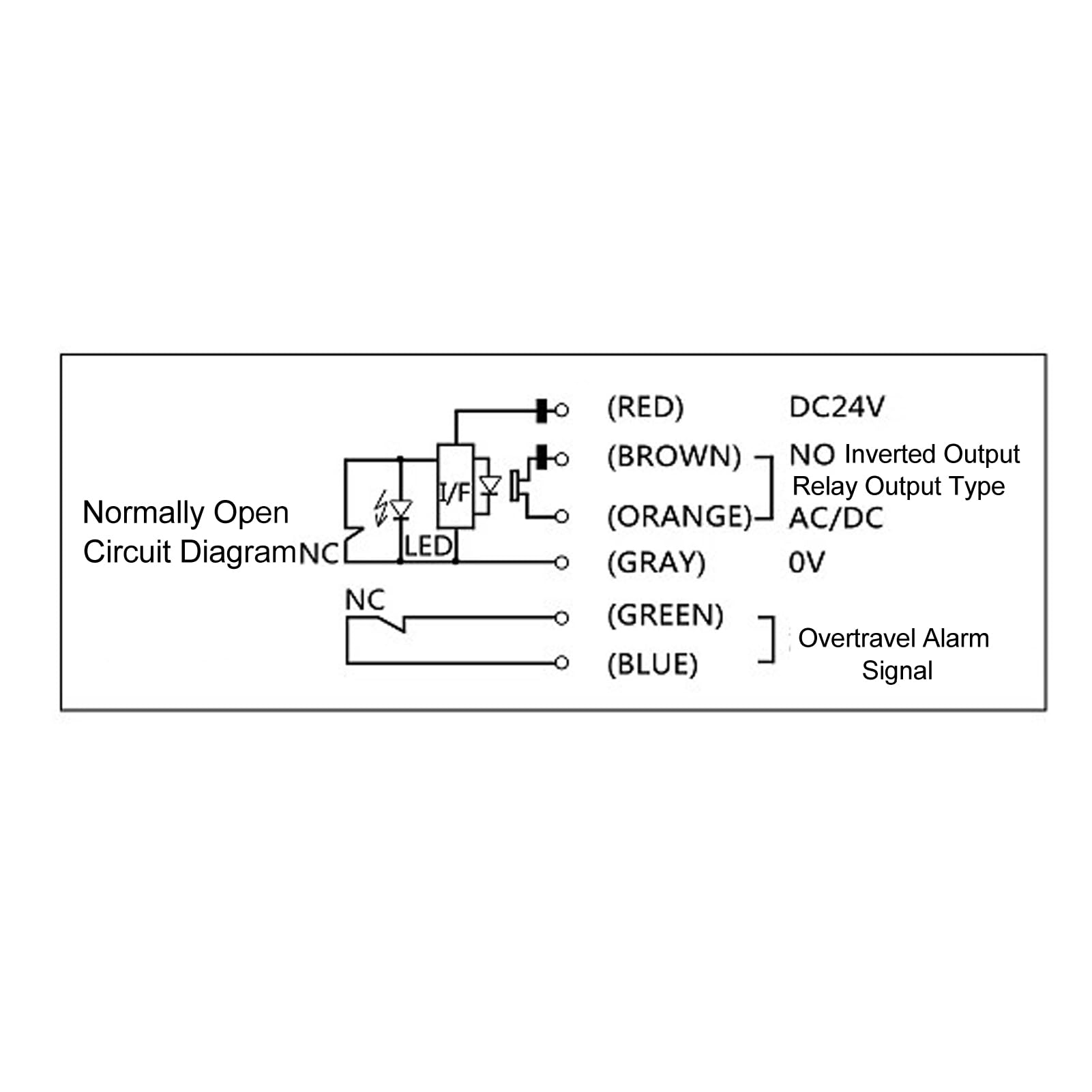

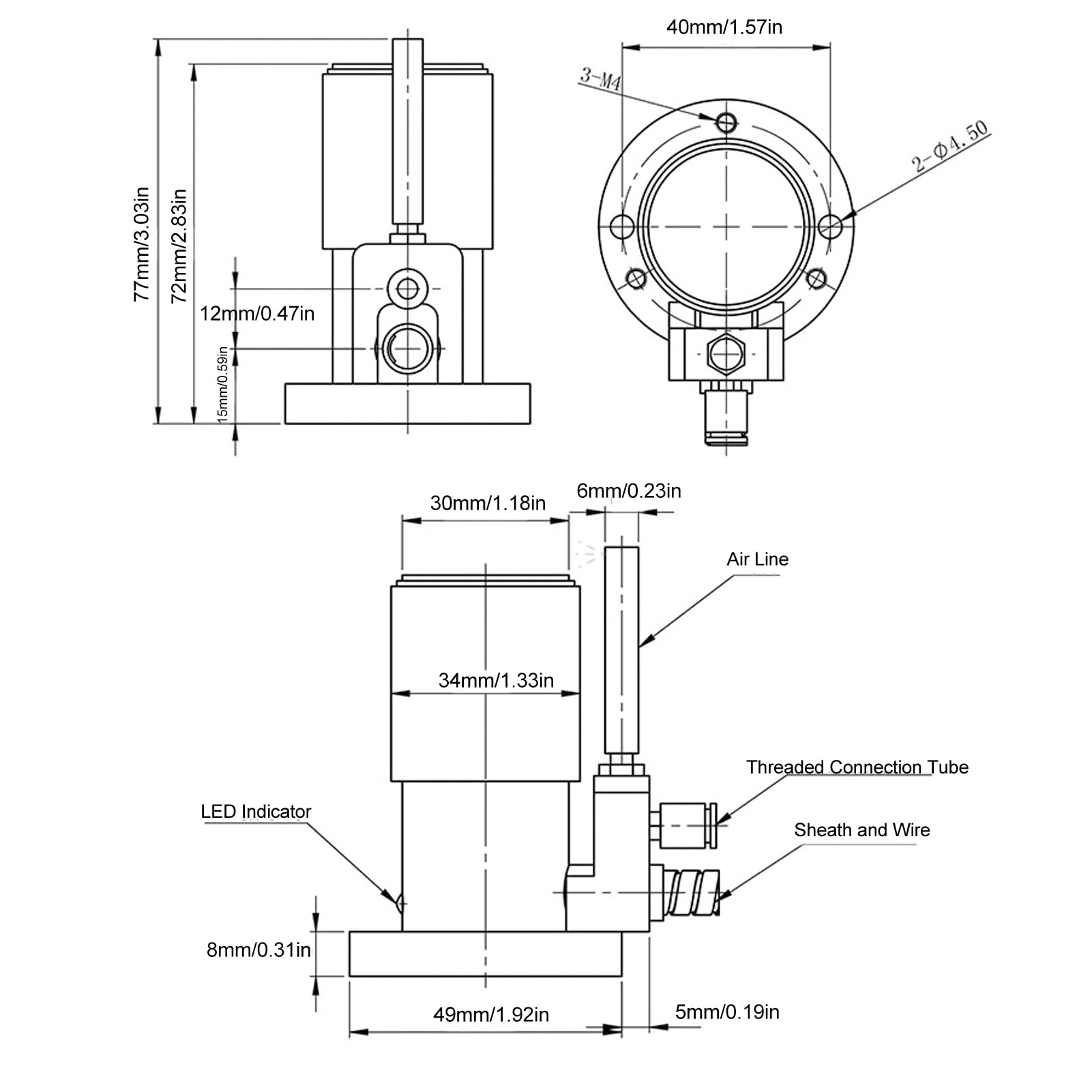

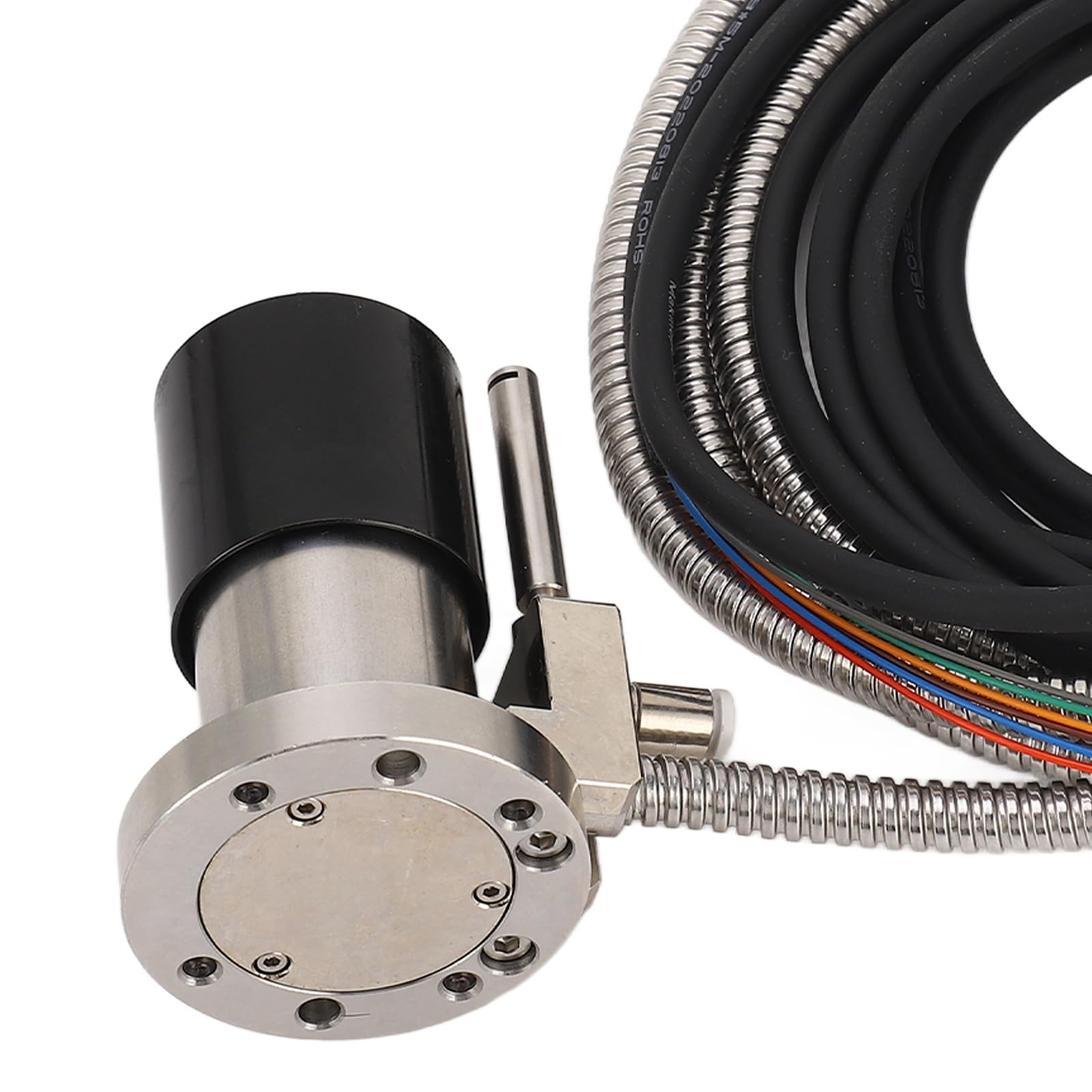

Spec:Item Type: Touch Tool SetterModel: M26D-30-1Voltage: DC 24VLine Length: The length of the standard line is 5m / 16.4ft(approx.), with a protective tube length of 1.5m / 4.92ft(approx.). There may be a small error in the manual measurement. Output: NO, normally open. Knife Facing: Approx. 30mm / 1.18inStroke: Approx. 8mm / 0.31inRepetitive Accuracy: 0.001mm under 50-200mm per min operating speed. Contact Life: 3 million times. Waterproof Grade: IP67Contact Force: 1N for vertical installation. Cutting Surface Material: Tungsten Steel Superhard AlloySurface Treatment: Grind the mirror surface for 4 secondsContact Rating: DC 24V 20mA maximum, and the recommended value is 10mA resistance load. Indicator Light: Normally open LED light on, normally closed without LED indication during operation. Alarm: Overtravel alarm . packing list:1 xTouch Tool SetterNotice:1. Try to install it in a place with less iron filings and splashing on the workbench. 2. After the wiring is completed, place the tool setting instrument in another place on the tool setting seat, test that the tool setting is normal, and then fix it in the correct position. 3. Please use it correctly within the rated DC 24V ± 10% 20mA maximum power range to avoid overloading and burning internal components. 4. The tensile strength of the power and lines is below 20N, that is, 2KG, and the bending radius of the metal tube of the power line sheath is R7. 5. If you need to use the blowing function, the outer diameter of the trachea should be 4MM, the inner diameter should be 2.5MM, and the recommended air pressure should be 0.3‑0.6MPA. 6. Please control the diameter of the tool to be less than 20mm. 7. Control the cutting speed below 50‑200mm/min, the speed is related to the mechanical electrical response.
