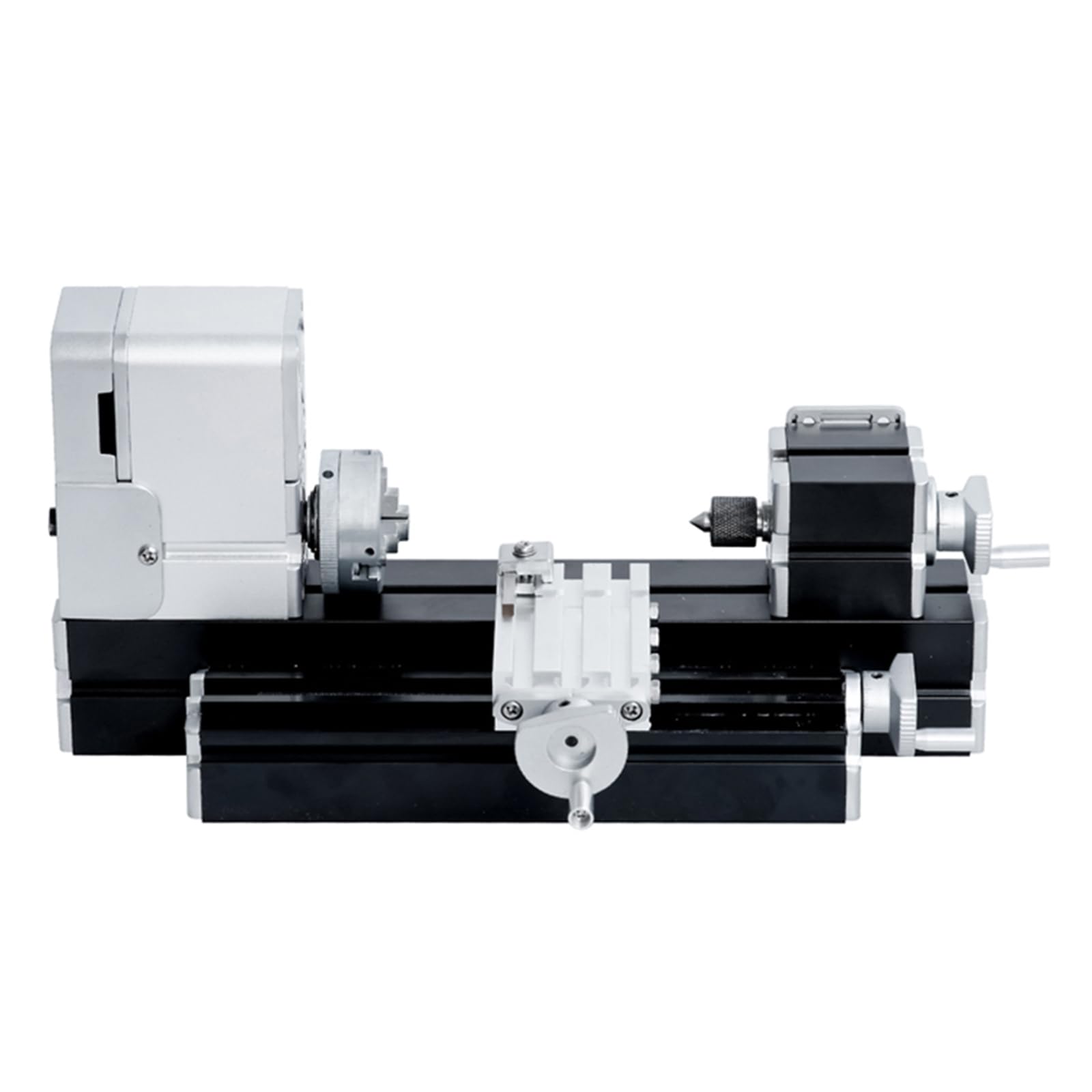

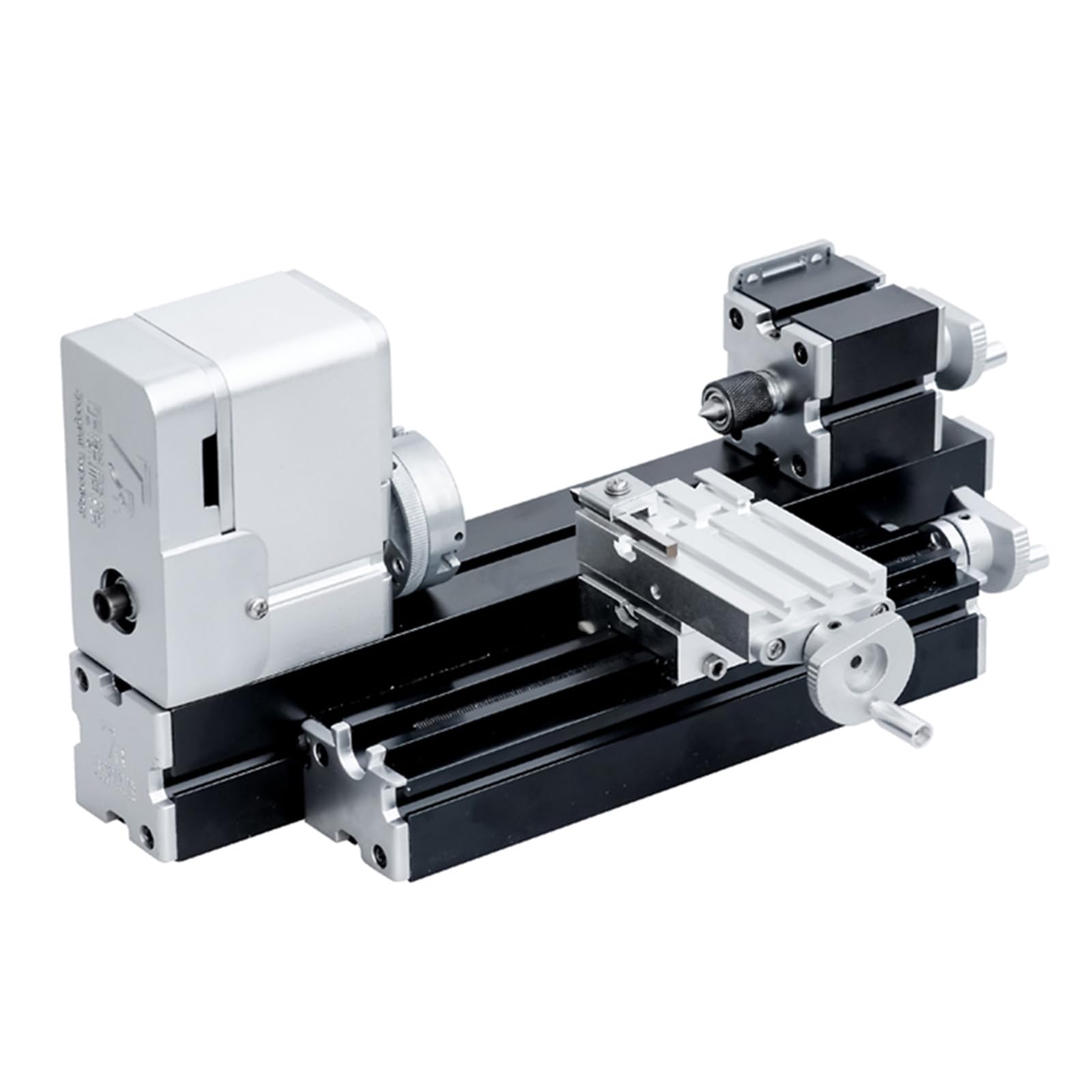

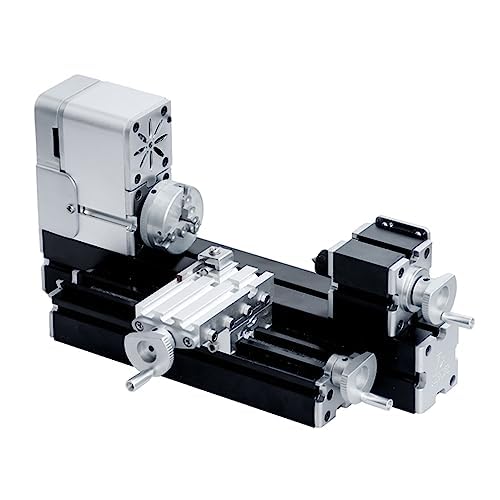

ZHRUI All-metal Miniature Lathe 36W 20000rpm Didactical Mini metal Lathe Machine for Hobbyist Woodworking Craft Technical Parameter: Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpmInput voltage/Current /Power: 12V/3A/36WInput Voltage of Switch Power Supply: 110V-240VThe largest diameter of processed material: 50 mm (Positive Jaw Gripping Range: 3mm-30mm,Opposite Jaw Gripping Range: 3mm-50mm;Kind Notice: manual measurement, there will be 2-3mm error.)The length of processed material: 150mmThe chuck and collets is 1 to 6mmX-axis slider travels: 150mmThe processed materials can be clamped by three-jaw chuck / collets, its maximum diameter is 50mm, center height-25mm, center distance- 150mmMachine size:310mm*100mm*150mm; Bottom plate size: 315mm*200mm*17mm Package List: 1 x Mini Lathe1 x Set of Accessories1 x Workbench Plate1 x Power Adapter1 x User Manual 1. The motor case and headstock of all-metal machine tools is jointed completely. Main parts configure with metal structure and no plastic components in the whole machine body, such as motor box, headstock, hand wheels, slider, 3-jaw chunk/4-jaw chunk, turning tools clamping jaw, machine bed, gear, side cover, working table, connection piece, tailstock, countershaft, drive belt cover etc. 2. Fan built-in motor is featured with Ultra-quiet & high rotary speed. That's special customized option for motor cooling & effective work. 3. The most parts of machine tools are dealt with two surface treatment methods of electroplating and ink-jet anodized to make appearance more cleaning & glorious, lasting rust-proof.4. Machine bed is made of Europe standard T-type aluminum material, moving more precisely &smoothly. 5. 3C quality assured transformers have the function of over-current, over-voltage and over-heat protection. 6. To improve the stability and service life, the connection block be fixed by square nuts, which avoid screw loosing after long time vibration. 7. The connection block adopts dovetail structure, which matches with each slot of the machine tools parts to enhance its performance and accuracy. 8. Children-proof design & safe fillet processing technology, they are all to prevent metal parts from scratching the skin. 9. Versatile application: The turning tools of mini metal lathe are made of steel material, which can be perfectly used to process the soft metal (gold, silver, copper & aluminum), acrylic and engineering plastics etc. 10. By adding some loose-preventing nuts on the side of small& big slider, not only avoid the gap after excessive vibration, but also improve the processing accuracy. 11. The whole hand wheel is made of super alloy material, which be assembled in X, Z axis and tailstock. Featuring with 0.02mm scale line, the hand wheel increases the precision when processing. (The scale lines are molded at one time, aren't sticky labe 12. The chuck is fixed by a hexagon nut to increase the tightness of the clamping tools (such as drill bits, cutters, wood-turning lathe driver). 13. 3/4 semi-circular structure designed hand wheel, that's quite convenient for dismantling connection pieces. 14. There are three parallel dovetail slots available on the big slider, which facilitate the movement of mini lathe tools and installment of the holders and the cutlery.15. Adding intermediate pieces under motor box, tailstock and lathe tools clamping jaw, which enlarge the machining rotary diameter & practical usage. 16. 3-jaw chuck can be used to clamp the material at a maximum diameter of 50mm, four-jaw single-action chucks is available. It is perfect optional choice for irregular shape (such as square, elliptical, hexagonal material), also expand the effective work area. Q and A: Q1: What's the usage of ZHRUI miniature machine tools? The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill&innovative ability. Q2: Is it easy to assemble and operate the miniature machine tools? What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, we can provide online service. Q3: What size of turning tool of the machine need? 4*4mm(We have them for sale,too.) Q and A: Q1: What's the usage of ZHRUI miniature machine tools? The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...Based on its modularity and the child friendly use, that's ideal& creative product to inspire children hand-on skill&innovative ability. Q2: Is it easy to assemble and operate the miniature machine tools? What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, we can provide online service. Q3: What size of turning tool of the machine need? 4*4mm(We have them for sale,too.)
