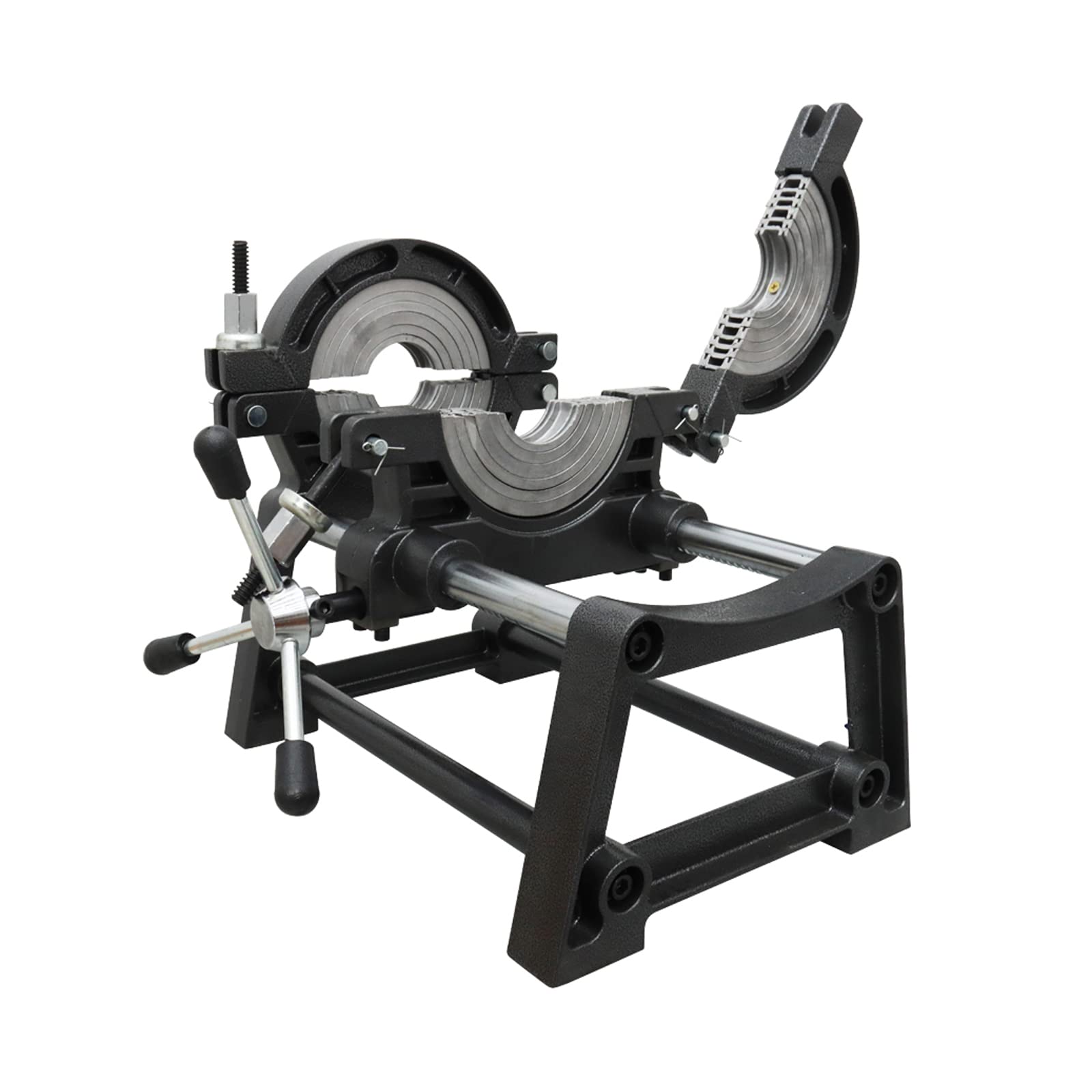

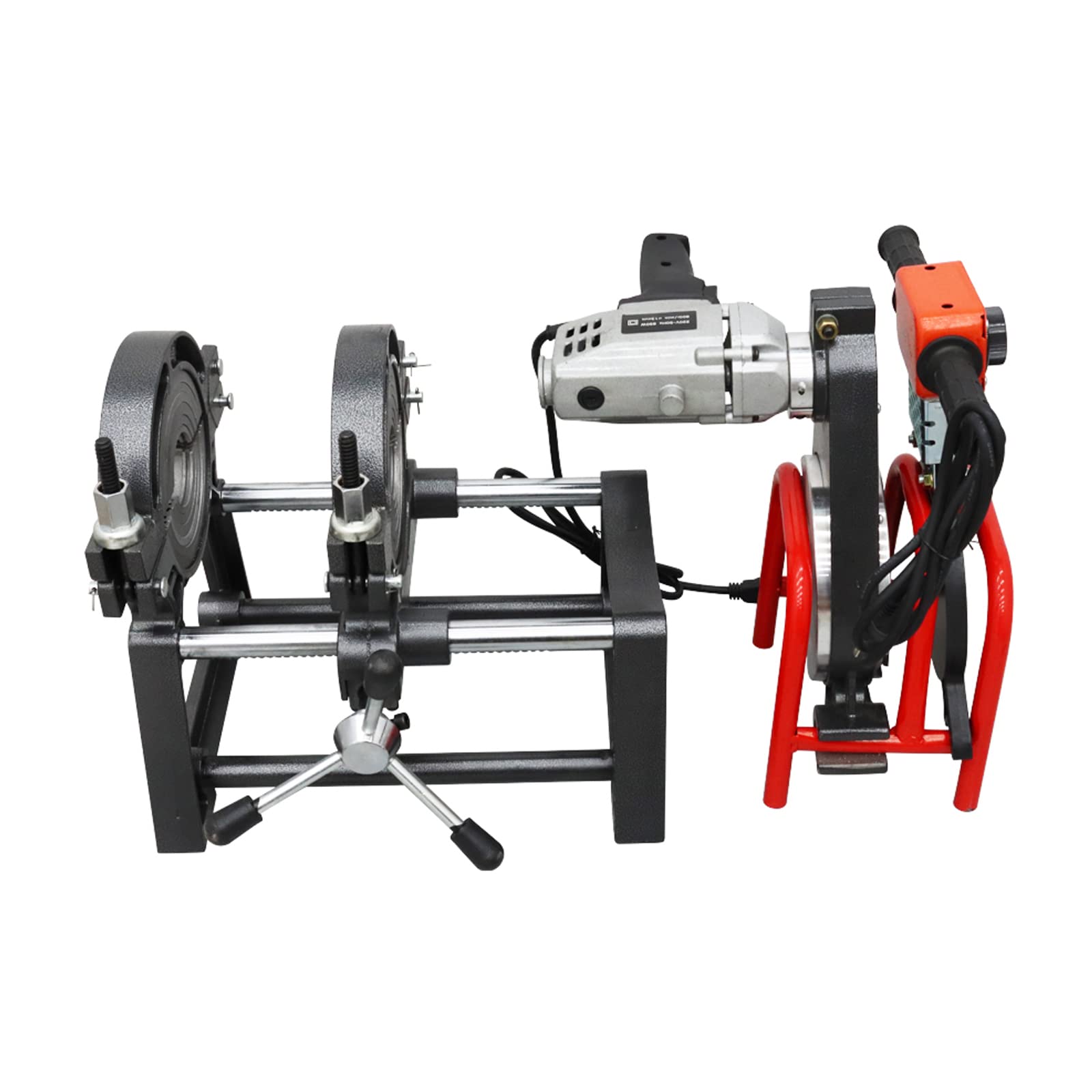

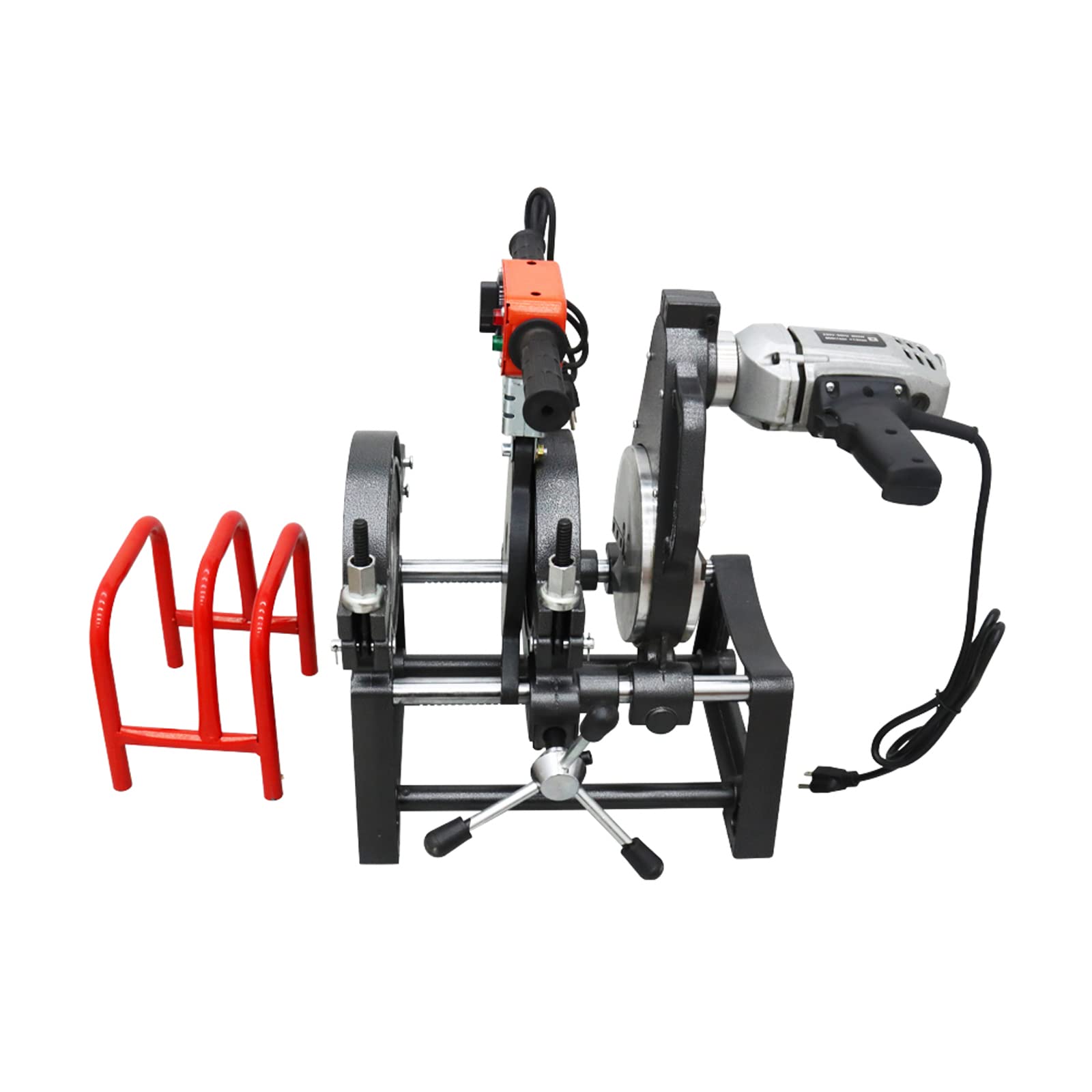

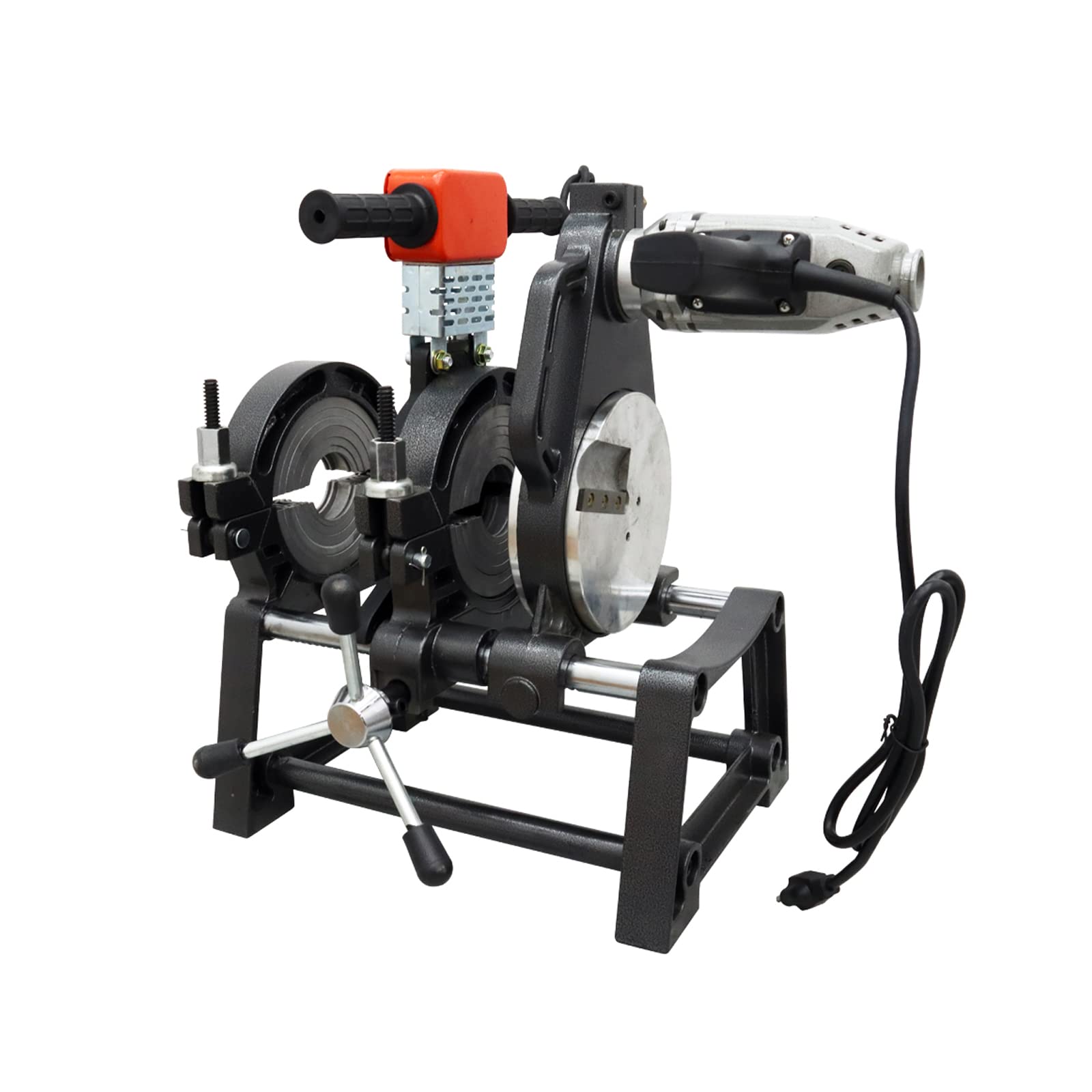

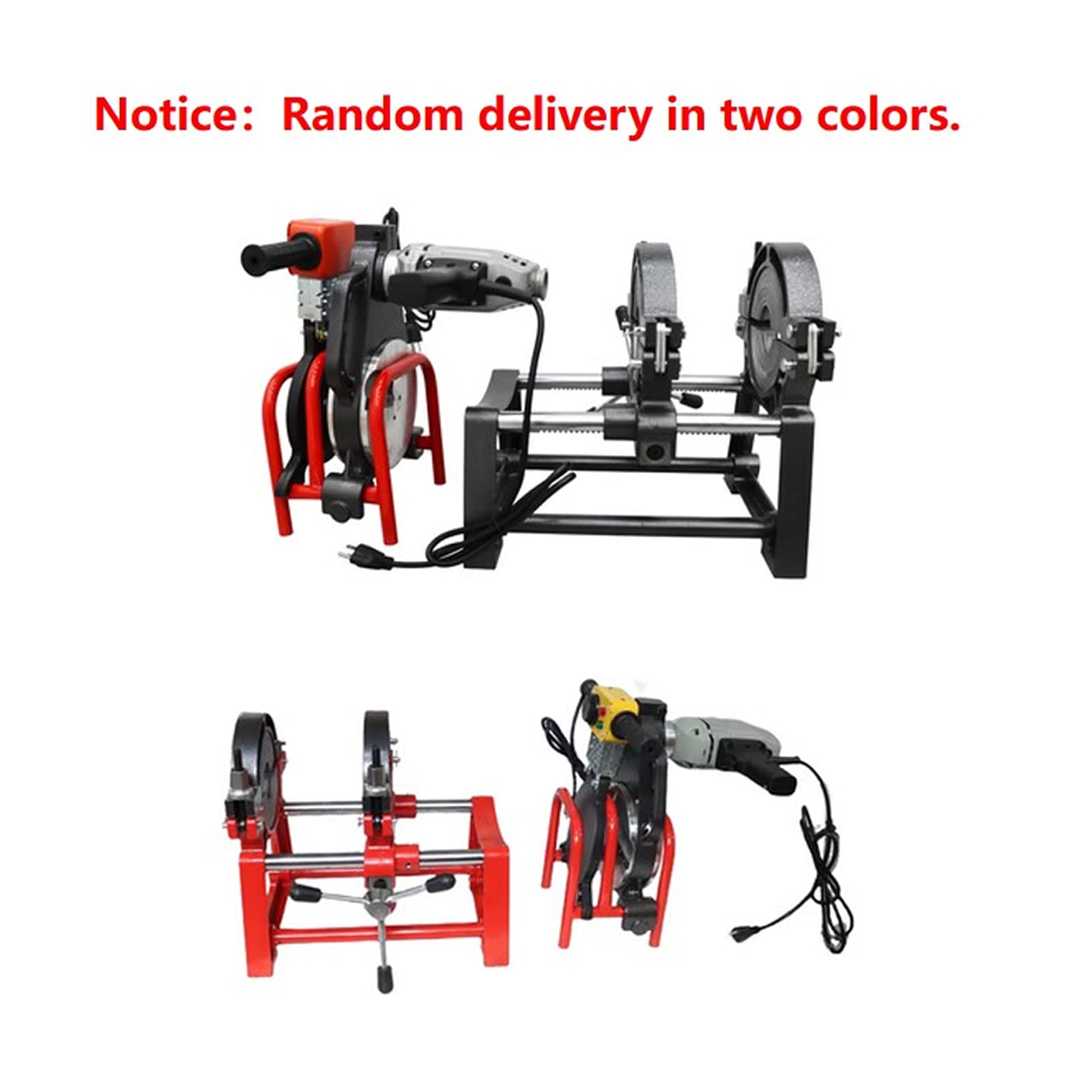

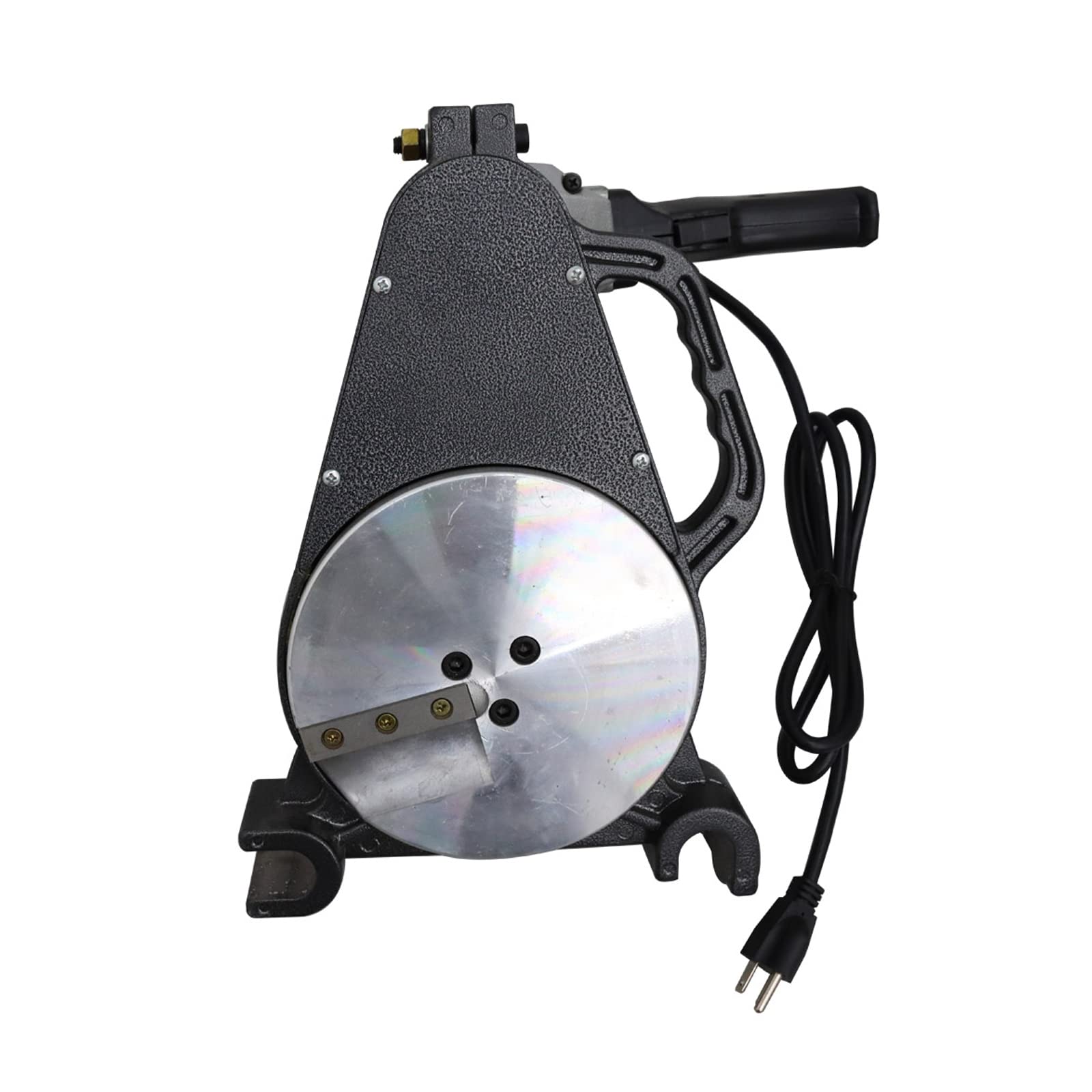

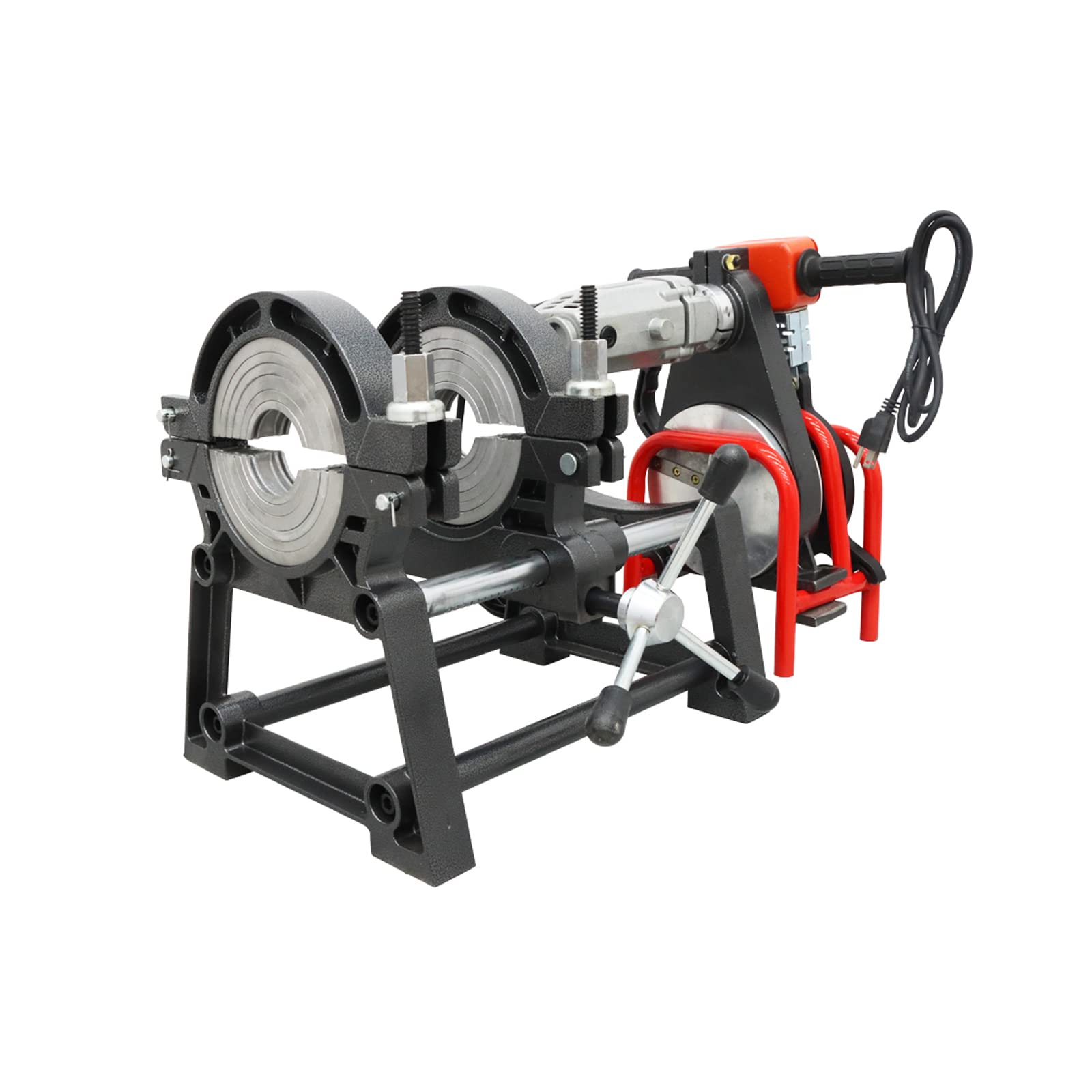

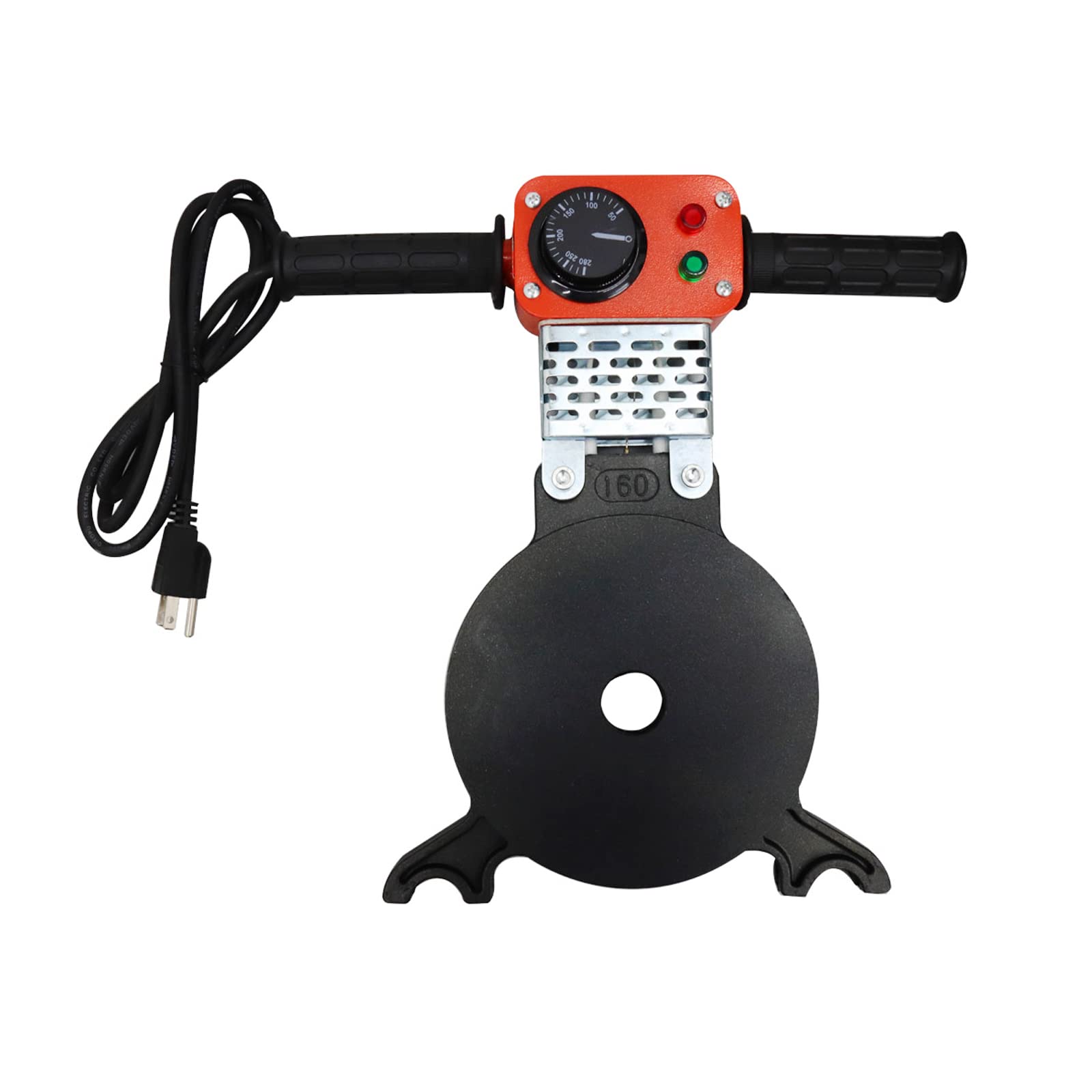

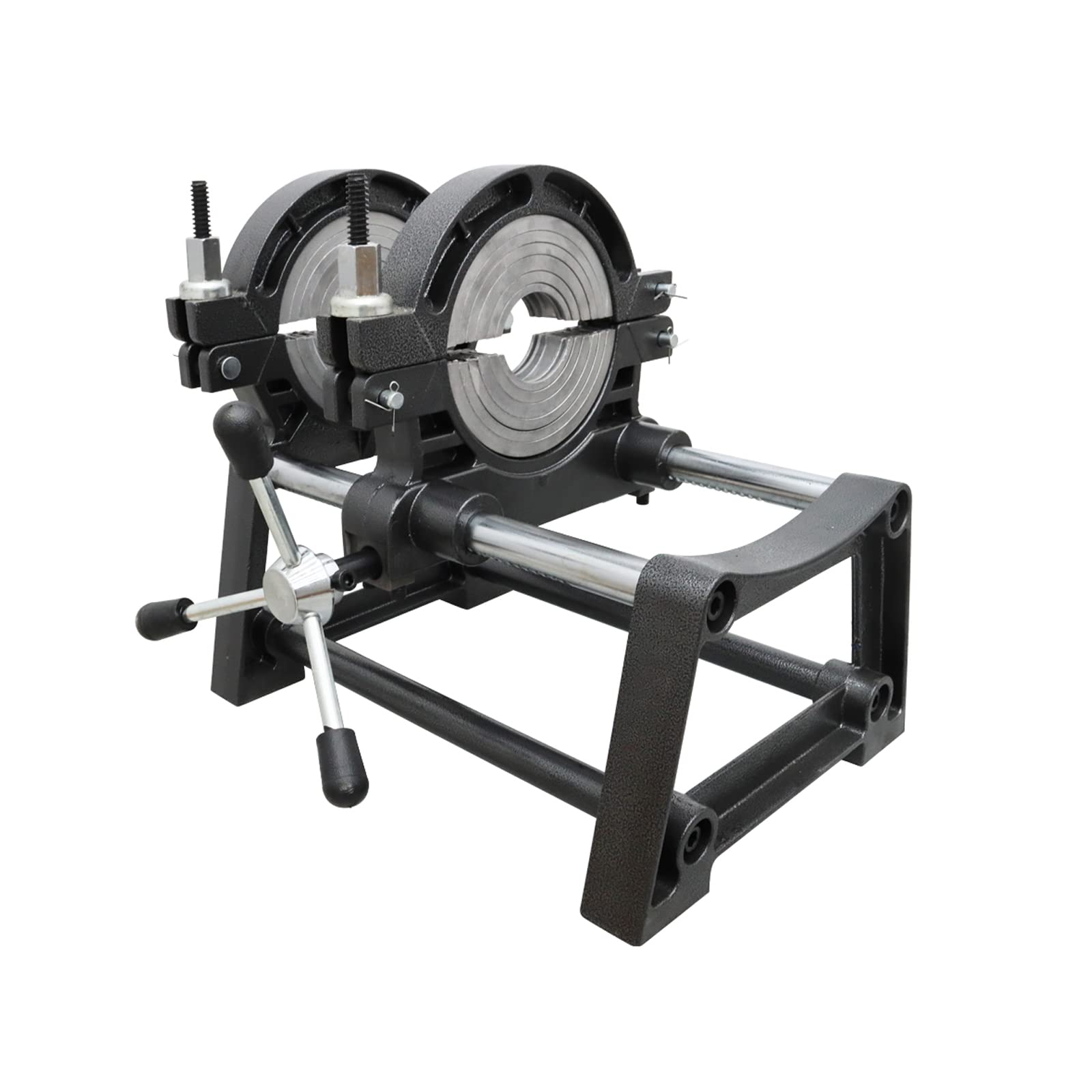

The heating plate adopts an independent temperature control system and is coated with PTFE;The main part of the frame is made of aluminum alloy material, which is simple in structure, compact and easy to use. MULTIPLE STYLE OPTIONS Please note that different styles have different colors, and the color of the machine actually received shall prevail. PARAMETER INSTRUCTION 1. The whole equipment should be placed on a stable and dry plane to operate. 2. Before operation make sure the following things: a.The machine is in good conditions,b.The power complies with the requirements according to the butt fusion machine, c.Power line is not broken or worn,d.All instruments are normal,e.The blades of planning tool are sharp 3.Install appropriate inserts to frame according to the outside diameter of pipes/fittings. 4.According to the requirements of fitting and welding process, set the temperature 5. Welding Steps:Before welding, firstly, check if the material and its pressure grade are the required ones.Secondly check if there are scratches or fissures on the surface of pipes/fittings. If the depth of scratches or fissures exceeds 10% of the wall thickness, cut the section of scratches or fissures. Clean the pipe end’s surfaces with clean cloth to keep the pipe’s ends clean 6. Clamping:Place the pipes/fittings in inserts of frame and keep the ends to be welded be the same length(no effect on the planning and heating of the pipe). The pipe out of the basic frame should be supported to the same central axial of clamps. Fasten the screws of clamps to fix the pipes/fittings. 7. Heating:Clear the dust or slit on the surface of heating plate (Caution: Don’t damage PTFE layer on the surface of heating plate.), and make sure the temperature has reached the required one.Put the heating plate between the pipe ends after it reaches required temperature. Close the pipes/fittings ends by operating direction valve and raise the pressure to specified pressure by swinging pressure regulation valve till the bead reaches specified height.Turn swing check valve anti-clockwise to reduce the pressure (not more than drag pressure)and turn swing check valve in clockwise direction to the end. Item:145012 HAND PUSH WELDING MACHINE Manually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance. The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
