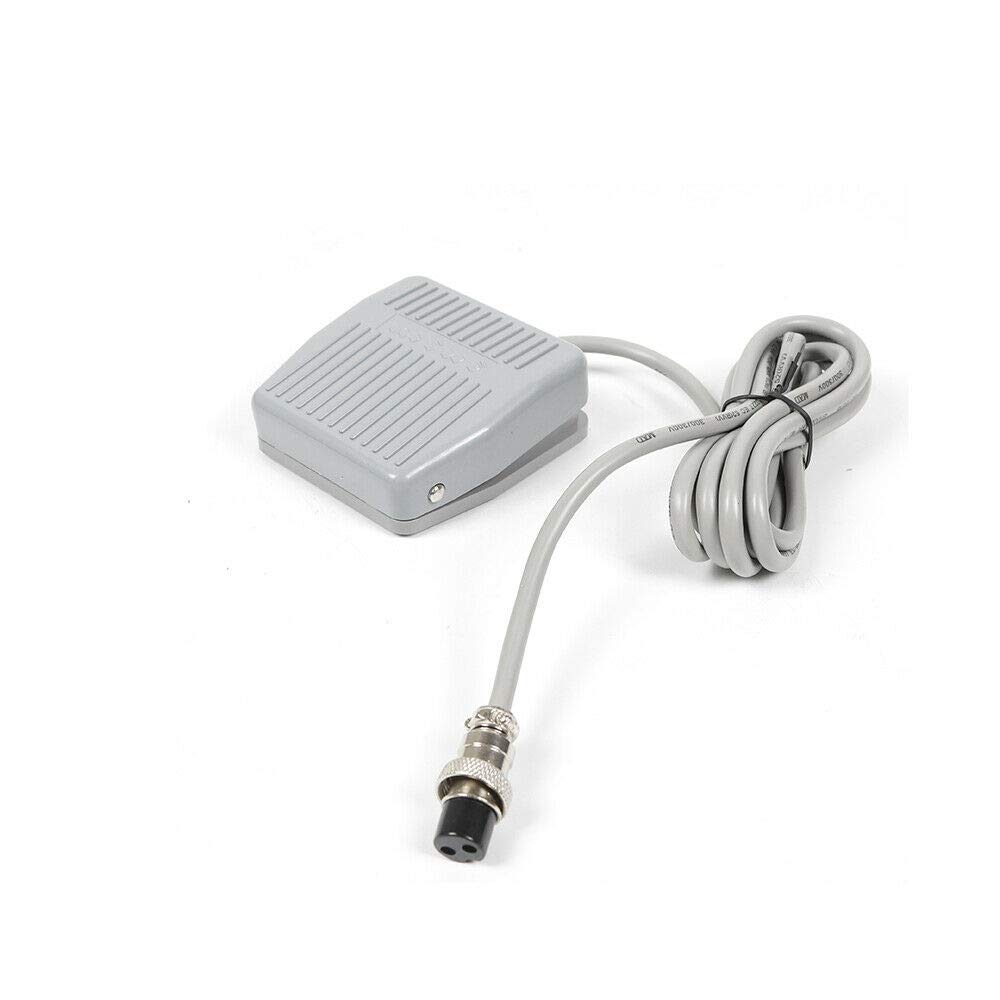

Specification:Power supply: AC110VPower: 800WWelding current: 0.5-80A continuously adjustable (pulse ignition)Welding range: 0.2-1.3mmUse range:It can weld gold, silver, K gold, gold, palladium, platinum with a diameter of 1.3MM. Titanium, copper, and stainless steel jewelry with a diameter of about 1MM can be weldedInstructions:1. Before using the welder, first check if the power supply meets the operating voltage2. Connect the welder output wire to the screw of the corresponding output stage (tighten the nut when the output wire is connected to the output pole)3. When working, clamp the workpiece with the clip on the output black line, close to the tungsten needle (depending on the size and shape of the workpiece, generally the distance between the tungsten needle and the workpiece is between 0.5-1 mm). After the welding position is fixed, Jog the foot switch, and a high-temperature arc between the workpiece and the tungsten needle instantly welds the workpiece4. The discharge end of the tungsten needle must be kept sharp before use and during use to maintain a good discharge state5. Welding can change the output pulse current according to the size of the workpiece, the size of the solder joints, and the process requirements (the machine can weld 0.5-1.5MM). When the potentiometer is rotated clockwise, the output pulse current increases, whereas the output pulse current decreasesNote:If the place where the welder is placed is wet or not used for a long time, it will be damp. If it is found that the above phenomenon should be dried before use, the machine should be well grounded. Please pay attention to safety when usingPackage:One hostpower cableFoot switchWorkpiece clipTungsten needleTorch needle holderInstruction manual
