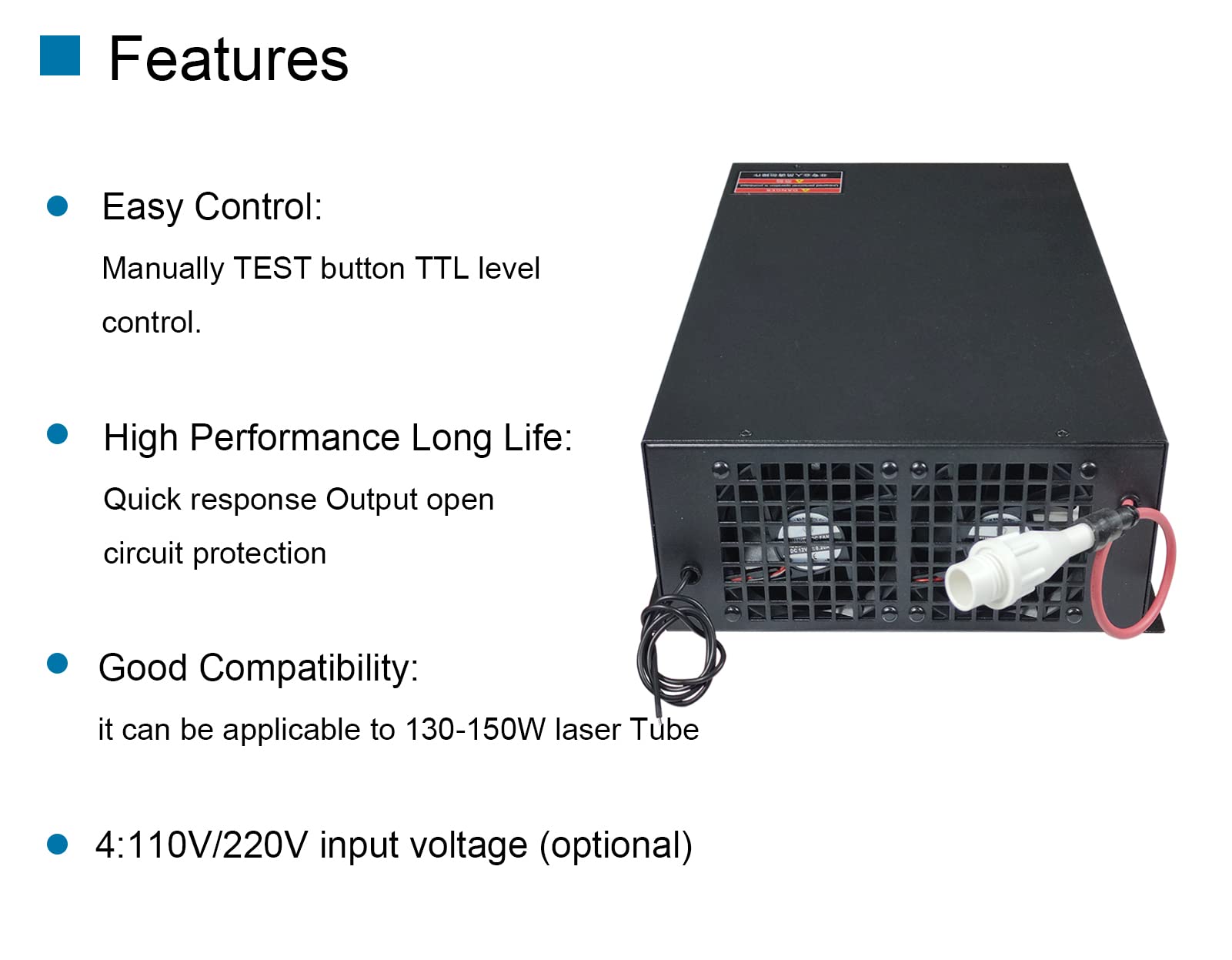

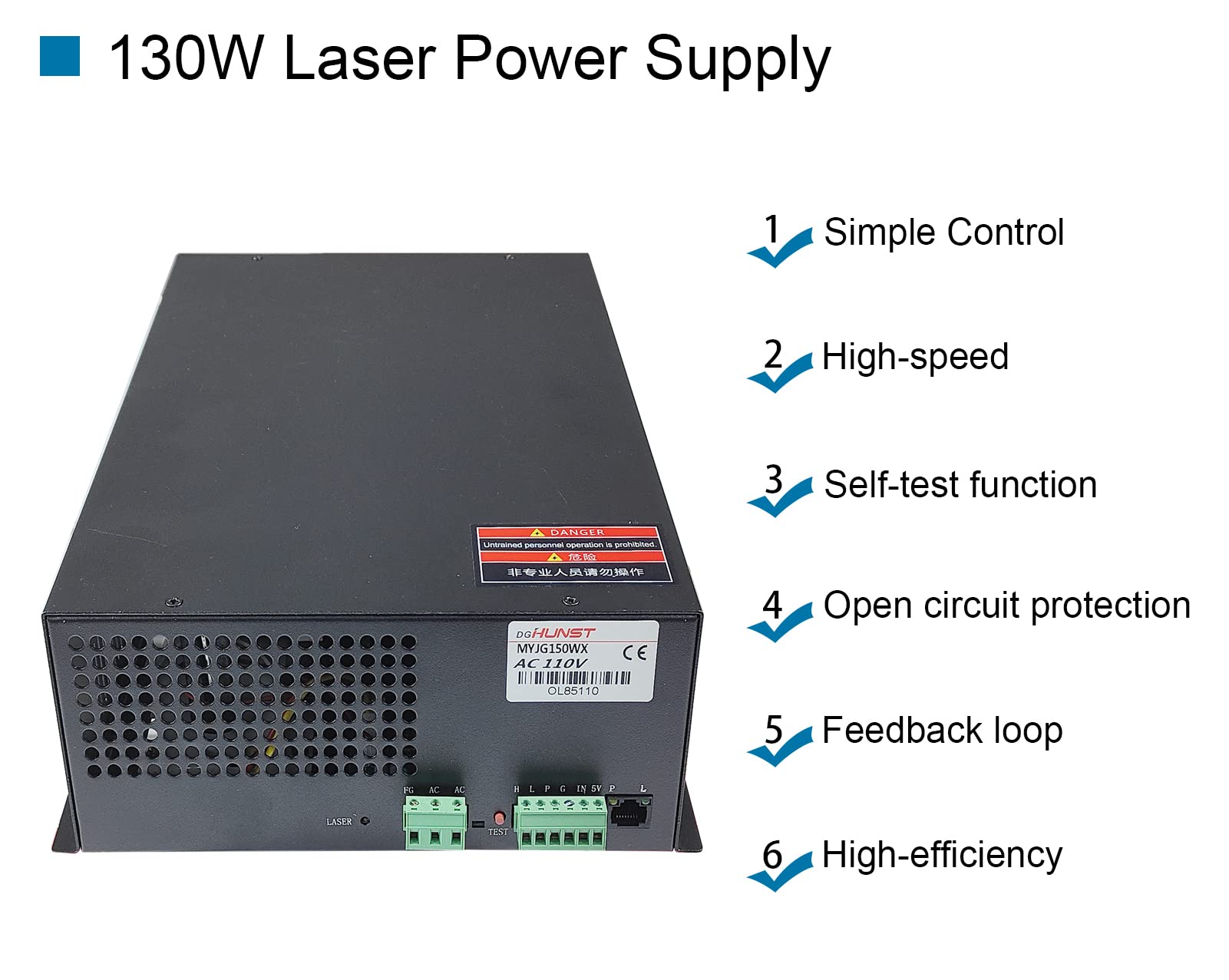

Product description Your Laser Power Supply Expert Hunst is a leader in the laser engraving industry because of our reliable, high-performance, and cost-effective laser engraving machines and accessories.Our 130~150W laser power supply has a fast response time and provides reliable and efficient power for your laser engraver or cutter.Simple TTL level control and open circuit protection, easy to use and longer service life.DGHUNST can meet all your laser engraving needs. Characteristics MYJG-150W Good compatibilityThis power supply can be applied to 130-150W tubes made by various factories. Alto desempenho de longa duração Fast response output open circuit protection Application Sculpt and cut acrylic, fabric, bicolor sheet and rubber, etc. Advantages Effect and fast response speed High performance cutting power It can also extend the life of the laser tube. Easy control: manual TEST button TTL level control Specifications Input Voltage AC110V AC Frenquency 47-440HZ Max Input Power 600W Max Input Current 3A Maximum Output Voltage DC40KV DC5V Maximum Output Current DC38mA Efficiency >/=90%(Full Load) MTBF >/=30000 Hours Response speed <=1ms(Time from the TTL Signal is given to the output current up to 90% pre-setting current) Withstand Voltage Input-output, input-Enclosure: AC1500V 10mA 60s, Output cathode is connected with enclosure. Environment Operating temperature:(-10-40)degree Clesius, Relative humidity:<=90% Cooling Force-Air Cooling(FAC) port definition table Port 1 ( FG AC AC）Port 2 (H L P G IN 5V) FG Connect with G Internal, and Connect the Power Supply Shell AC AC AC 110V/220V Input H Laser control switch (active high) L Interruptor de control de láser (activo bajo) P water protection G Grounding: The foot must be connected to the laser machine housing and properly grounded. IN 0-5V analog signal control input, also can use 5V PWM signal to control. 5V Output 5V, max current 50mA. Detail picture Reliable quality performance Our 130~150W laser power supplies provide excellent performance, high efficiency and fast response time.Use our safe, stable and powerful power supply to extend the service life and make full use of your 130~150W laser tube. Wide range of applications With good compatibility, it can be applied to the laser tubes of many manufacturers of laser engraving machines. Simple installation Each connection port is clearly marked, which is convenient and quick to install. 110V/220V optional The power supply also has a physical test button for fault detection, allowing you to easily troubleshoot. USA CVD ZnSe Co2 Laser Tube China CVD ZnSe MO mirror SI mirror Laser marking machine Buying Options Buying Options Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews — — 5.0 out of 5 stars 1 4.5 out of 5 stars 8 3.9 out of 5 stars 3 — Price — no data — no data $23.99$23.99 $21.99$21.99 $21.98$21.98 — no data Wavelength 10.6um 10.6um 10.6um 10.6um 10.6um 1064nm
