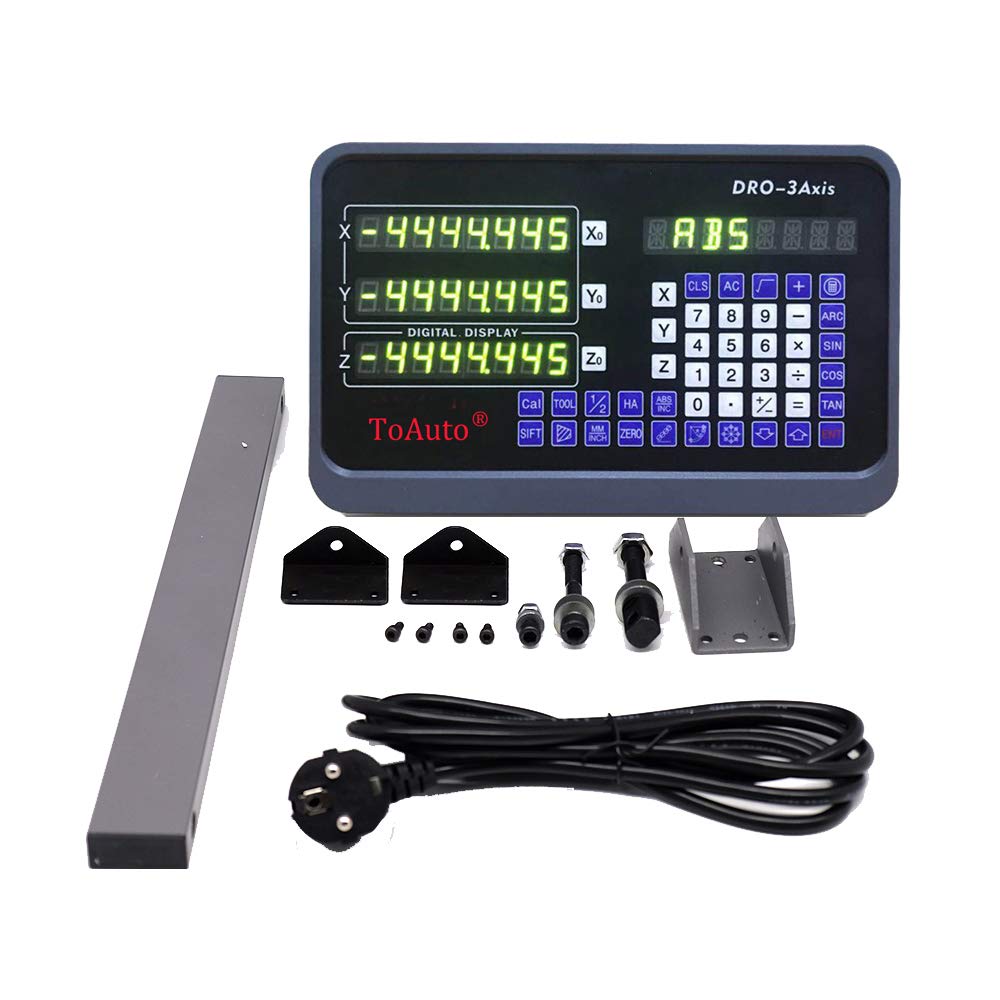

TOAUTO 3 Axis Digital Readout DRO with 5um High Precision Encoder - Mounting Arm & Bracket Kit for CNC Milling & Lathe Machines | Perfect for Metalworking, Woodworking & Industrial Machining Applications

$68.19

$123.99

Safe 45%

TOAUTO 3 Axis Digital Readout DRO with 5um High Precision Encoder - Mounting Arm & Bracket Kit for CNC Milling & Lathe Machines | Perfect for Metalworking, Woodworking & Industrial Machining Applications

$68.19

$123.99

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

28 people viewing this product right now!

SKU: 95963435

Guranteed safe checkout

Description

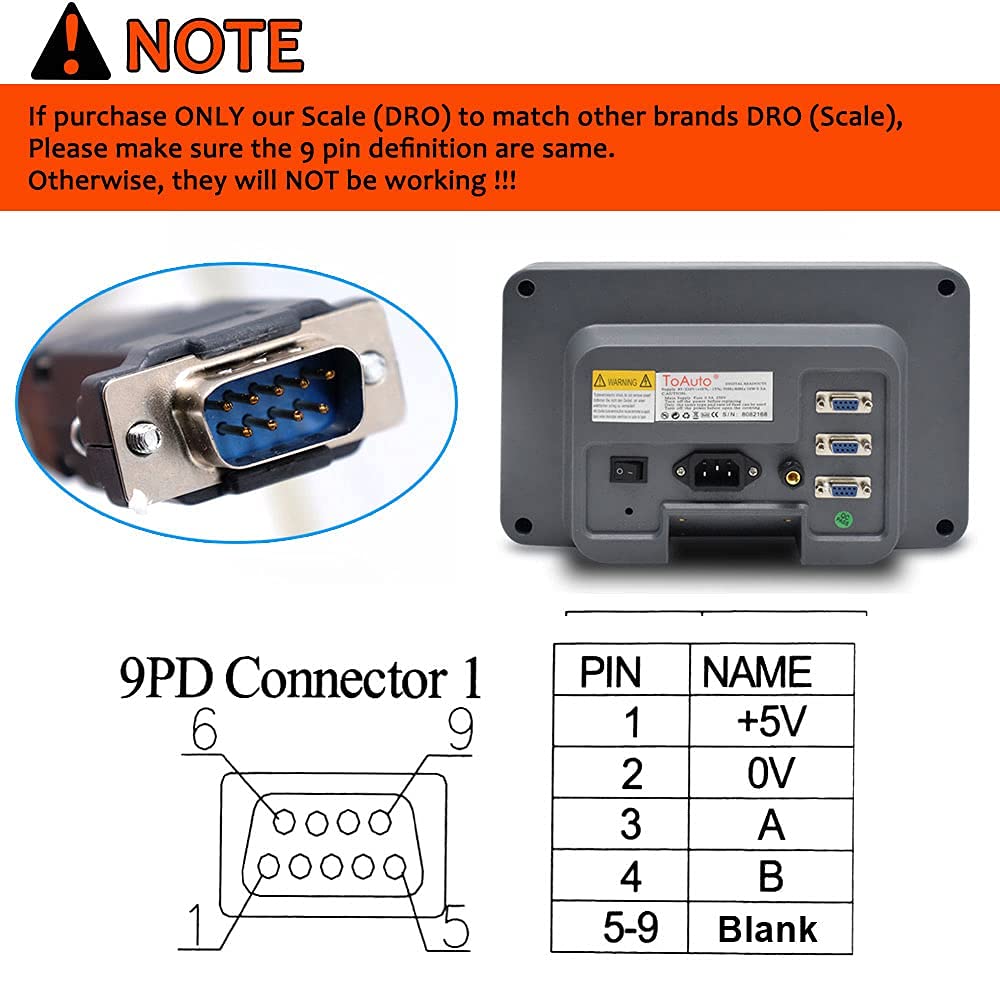

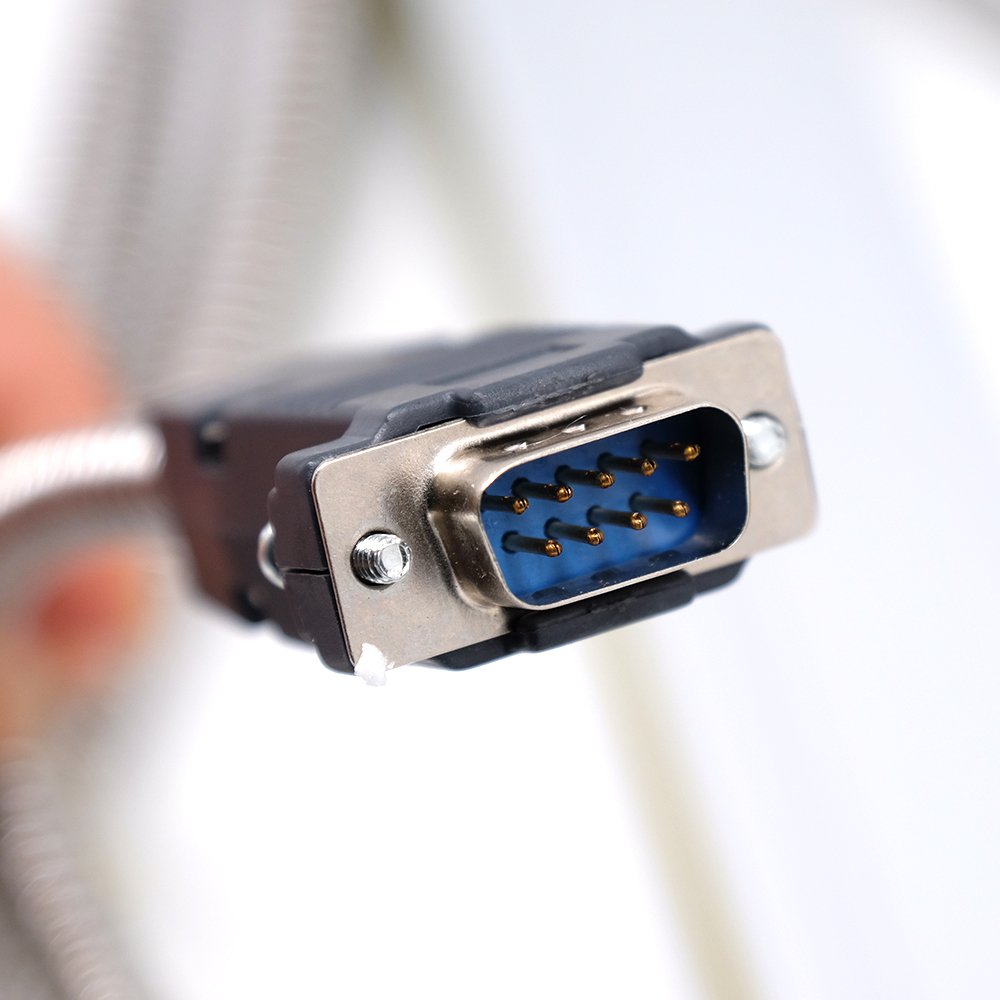

Notice: if you want to buy a single linear scale, please make sure that the define of DB9 interface match your machine before placing the oreder. Package 1 x Linear Scale Accessories: scale cover, L connecting bracket, scale cover, screw bag Specifications of Linear Scale Travel (measuring) length: 0-1000mm / 0-40inch Total (overall) length: Travel length + 140mm Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5M Hz Max resolution of digital display length: 5µm(0.005mm) Min resolution of digital display angle: 0.0001/pulse Dimensions: Please see drawing below Linear Scale communication: DB9(RS232) Cable length: 3 Meter (about 9 feet) Input voltage: 5V Application field The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Reviews

*****

Verified Buyer

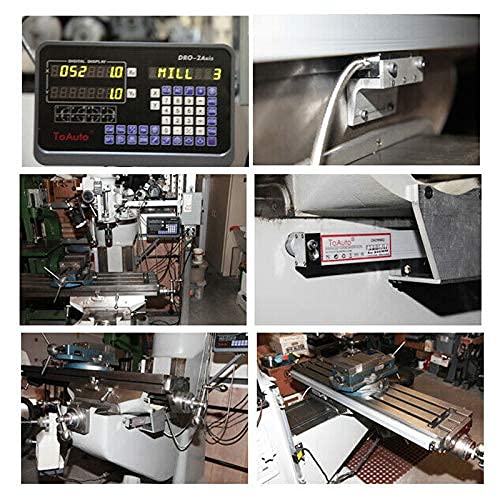

I have these on my milling machine, now adding to my lathe. On the mill, accurate and reliable. The display unit that goes along with these is also excellent, at least the full LCD display variant. Do be aware that you will have to do some fiddling to figure out how to mount on your particular lathe/mill. But, once done, results are great. Also, it is possible to cut the length if necessary, lots of info online. I did that for my milling machine. They give you plenty of bolts and brackets, but of course they're generic. I just mill them for what I need, not that difficult. Update - now on the lathe, just great. Scale accuracy is 0.0002, a lot better than either my mill or lathe will hold.
